SEMI-UNIVERSAL / UNIVERSAL DIVIDING HEADS WITH TAILSTOCK & DIVIDING PLATE

SEMI-UNIVERSAL / UNIVERSAL DIVIDING HEADS WITH TAILSTOCK & DIVIDING PLATE

SEMI-UNIVERSAL / UNIVERSAL DIVIDING HEADS WITH TAILSTOCK & DIVIDING PLATE

52170101, 52170102, 52170103, 52170103-1, 52170110, 52170111, 11002282, 11002282-1,52170105,52170106

Description

Specification

UNIT: mm

ITEM NO. MODEL HEIGHT OF
CENTER		 BASE
W x L		 OVERALL
HEIGHT		 N.W.
(kgs)		 G.W.
(kgs)		 CHUCK DIVIDING
PLATE
MODEL		 TAILSTOCK
MODEL
52170101 BS-0 100 91 x 160 173 19 20 5" BS0-DP BS0-TS
52170102 BS-1 128 114 x 207 220 32 33 6" BS1-DP BS1-TS
52170103 BS-2 132.7 134 x 212 236 65 65 6" or 8" BS2-DP BS2-TS
52170103-1 BS-2A 134 134 x 213 237 47.5 47.5 6" or 8" BS2A-DP BS2-TS

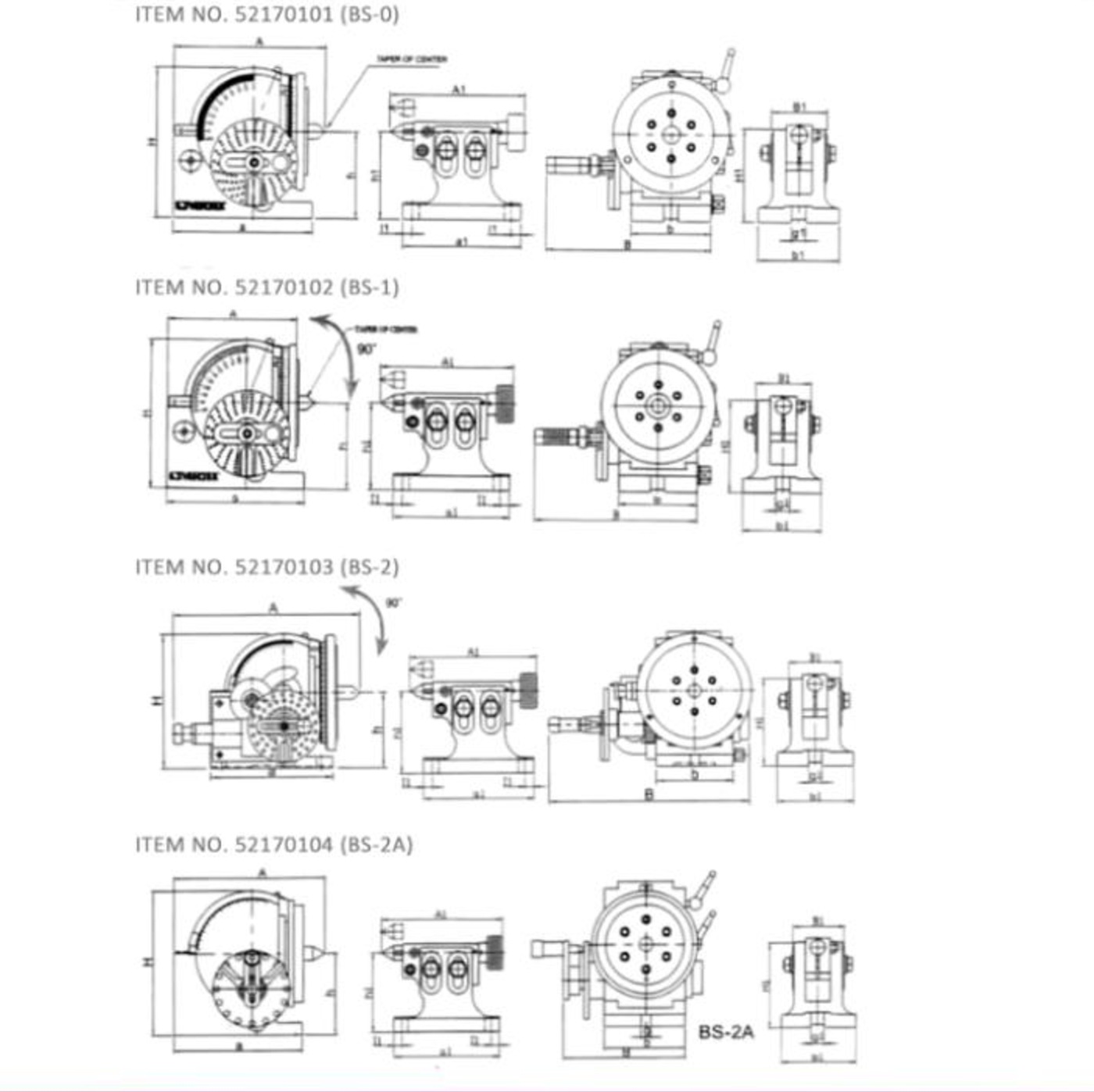

DIVIDING HEAD DIMENSION:

UNIT: mm

ITEM NO. MODEL A B H l a b g h TAPER
OF
CENTER		 SPINDLE
THROUGH
HOLE
52170101 BS-0 177 188 173 13 160 91 16 100 MT2 18
52170102 BS-1 245 230 220 19 205 114 16 128 MT3 20
52170103 BS-2 359 340 235 20 212 135 16 134 MT4 25
52170103-1 BS-2A 285 202 237 20 213 134 16 134 MT4 25

STANDARD ACCESSORIES:
TAILSTOCKS:

UNIT: mm

ITEM NO. MODEL FOR
DIVIDING
HEAD		 A1 B1 H1 l1 a1 b1 h1 g1 N.W.
(kgs)
52170110 BS0-TS BS-0 155-180 64 107 11 134 94 80-108 16 4
52170111 BS1-TS BS-1 170-195 64 150 11 155 110 115-150 16 5.3
11002282 BS2-TS BS-2 170-195 64 150 11 155 110 115-150 16 5.3
11002282-1 BS2A-TS BS-2A 170-195 64 150 11 155 110 115-150 16 5.3

STANDARD ACCESSORIES:
DIVIDING PLATES:

ITEM NO. MODEL FOR
DIVIDING
HEAD
52170105 BS0-DP BS-0
52170106 BS1-DP BS-1
52170107 BS2-DP BS-2
52170107-1 BS2A-DP BS-2A

INCLUDING THREE PLATES:

Plate A 15 16 17 18 19 20
Plate B 21 23 27 29 31 33
Plate C 37 39 41 43 47 49
