STATIONARY CHUCKS
51101099, 51101100, 51101101, 51101102
Description
Specification

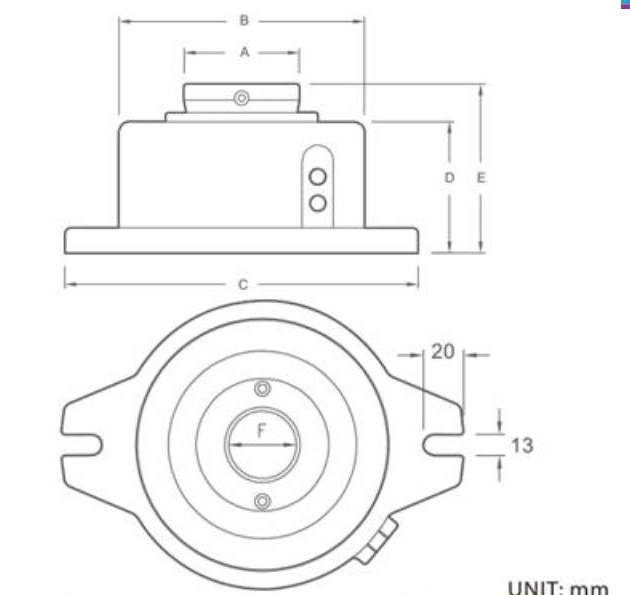

UNIT: mm
| ITEM NO. | 51101099 |
|---|---|
| A | 40 (1.57") |
| B | 160 (6.30") |
| C | 220 (8.66") |
| D | 73 (2.87") |
| E | 108(4.25") |
| F | 26 (1.02") |
| Working collet / jaws | YB-25 Collet |
| Actuated by | Air / Hydraulic |
| Operating pressure | 3-15 kgs/ cm2 (43-214 psi) |
| Chuck capacity through / Non through |
26 / 28 mm (1.02" / 1.10") |
| Clamping force (torque) | 6 kgf-m(43 lbf-ft) |
| Net weight | 9.0 kgs (19.8 lbs) |
UNIT: mm
| ITEM NO. | 51101100 | 51101101 | 51101102 |
|---|---|---|---|
| A | 94 (3.70") | 136 (5.35") | - |
| B | 190 (7.48") | 212 (8.35") | 180 (7.09") |
| C | 265 (10.43") | 285 (11.22") | 240 (9.45") |
| D | 99 (3.90") | 105 (4.13") | 74 (2.91") |
| E | 122(4.80") | 135(5.31") | 102(4.02") |
| F | 48 (1.89") | 68 (2.68") | - |
| Working collet / jaws | C-40 Jaws | C-70 Jaws | C-44I |
| Actuated by | Air | Air | Hydraulic |
| Operating pressure | 3-8 kgs/cm2 (43-114 psi) | 3-8 kgs/cm2 (43-114 psi) | 10-20 kgs/cm2 (143-286 psi) |
| Chuck capacity through / Non through |
45 / 50 mm (1.77" / 1.97") | 68 / 90 mm (2.68" / 3.54") | 16/ 50 mm(0.63"/ 1.97") (Chuck capacity Min./ Max.) |
| Clamping force (torque) | 6 kgf-m(43 lbf-ft) | 7 kgf-m(50 lbf-ft) | N/A |
| Net weight | 14.0 kgs (30.8 lbs) | 23.0 kgs (50.6 lbs) | 14.0 kgs (30.8 lbs) |
