Zylinderintegrierte Luftspannfutter
51101086, 51101087, 51101088, 51101089, 51101090
Beschreibung
Spezifikation

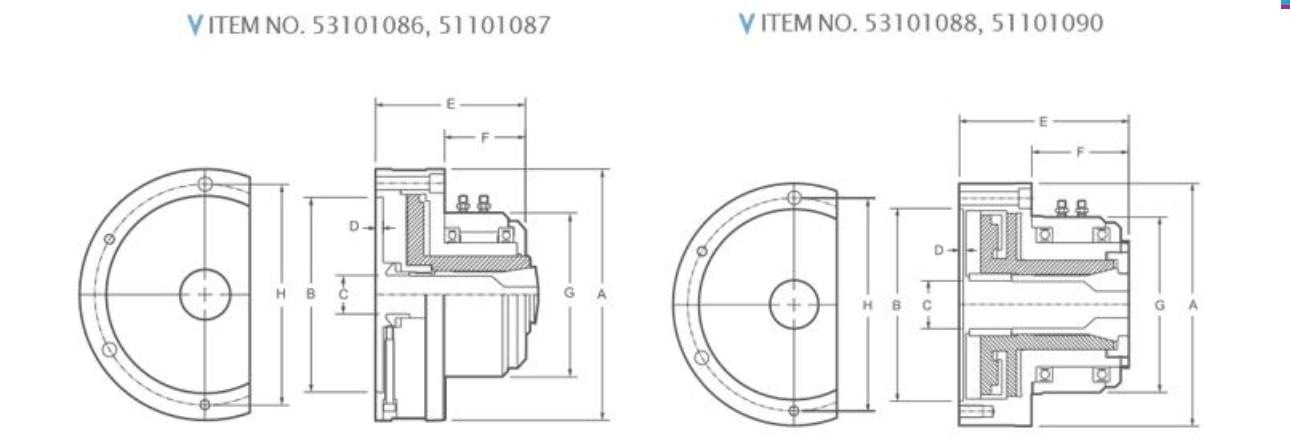

EINHEIT: mm
| ARTIKEL-NR. | 51101086 | 51101087 | 51101088 | 51101089 | 51101090 |
|---|---|---|---|---|---|
| A | 168 (6,61") | 197 (7,76") | 196 (7,72") | 207 (8,15") | 246 (9,67") |
| B | 130 (5,12") | 160 (6,30") | 155 (6,10") | 170 (6,69") | 200 (7,87") |
| C | 26 (1,02") | 40 (1,57") | 42 (1,65") | 60 (2,36") | 80 (3,15") |
| D | 5 (0,20") | 5 (0,20") | 5 (0,20") | 5 (0,20") | 5 (0,20") |
| E | 100 (3,94") | 112 (4,41") | 138 (5,43") | 148 (5,83") | 152 (5,98") |
| F | 55 (2,17") | 64 (2,52") | 77 (3,03") | 86 (3,39") | 80 (3,15") |
| G | 110 (4,33") | 130 (5,12") | 144 (5,67") | 168 (6,61") | 196 (7,72") |
| H | 147 (5,79") | 176 (6,93") | 172 (6,77") | 186 (7,32") | 226 (8,90") |
| Befestigungsschraubenloch | ø9,0 x 4 | ø11.0x3+M10xP1.5x3 | ø11.0x3+M10xP1.5x3 | ø11.0x3+M10xP1.5x3 | ø11,0 x 6 für M10 |
| Arbeitszange | 5C Spannzange | 16C Spannzange | B42 Spannzange (173E) | B60 Spannzange (185E) | B80 Spannzange (193E) |
| Max. Drehzahl | 5000 | 4000 | 3600 | 3000 | 2300 |
| Betriebsdruck | 3-8 kg/ cm² (43-114 psi) |
3-8 kg/ cm² (43-114 psi) |
3-8 kg/ cm² (43-114 psi) |
3-8 kg/ cm² (43-114 psi) |
3-8 kg/ cm² (43-114 psi) |
| Spannfutter durch Loch | 26 (1,02") | 40 (1,57") | 42 (1,65") | 60 (2,36") | 80 (3,15") |
| Klemmkraft | 4825 kgf@7 kg/ cm 2 (10615 lbf@100 psi) |
5600 kgf@7 kg/ cm 2 (12320 lbf@100 psi) |
5960 kgf@7 kg/ cm 2 (13112 lbf@100 psi) |
7250 kgf@7 kg/ cm 2 (15950 lbf@100 psi) |
9060 kgf@7 kg/ cm 2 (19932 lbf@100 psi) |
| Nettogewicht | 10 kg (22 Pfund) | 14 kg (31 lbs) | 17 kg (37 lbs) | 21 kg (46 lbs) | 32 kg (71 lbs) |
