S2 ALTIGEN ANAHTAR SERİSİ ANAHTARLAR
57104158, 57104159, 57104160, 57104161, 57104162, 57104163, 57104164, 57104165, 57104166 ~ 57104192
Tanım
Özellikler

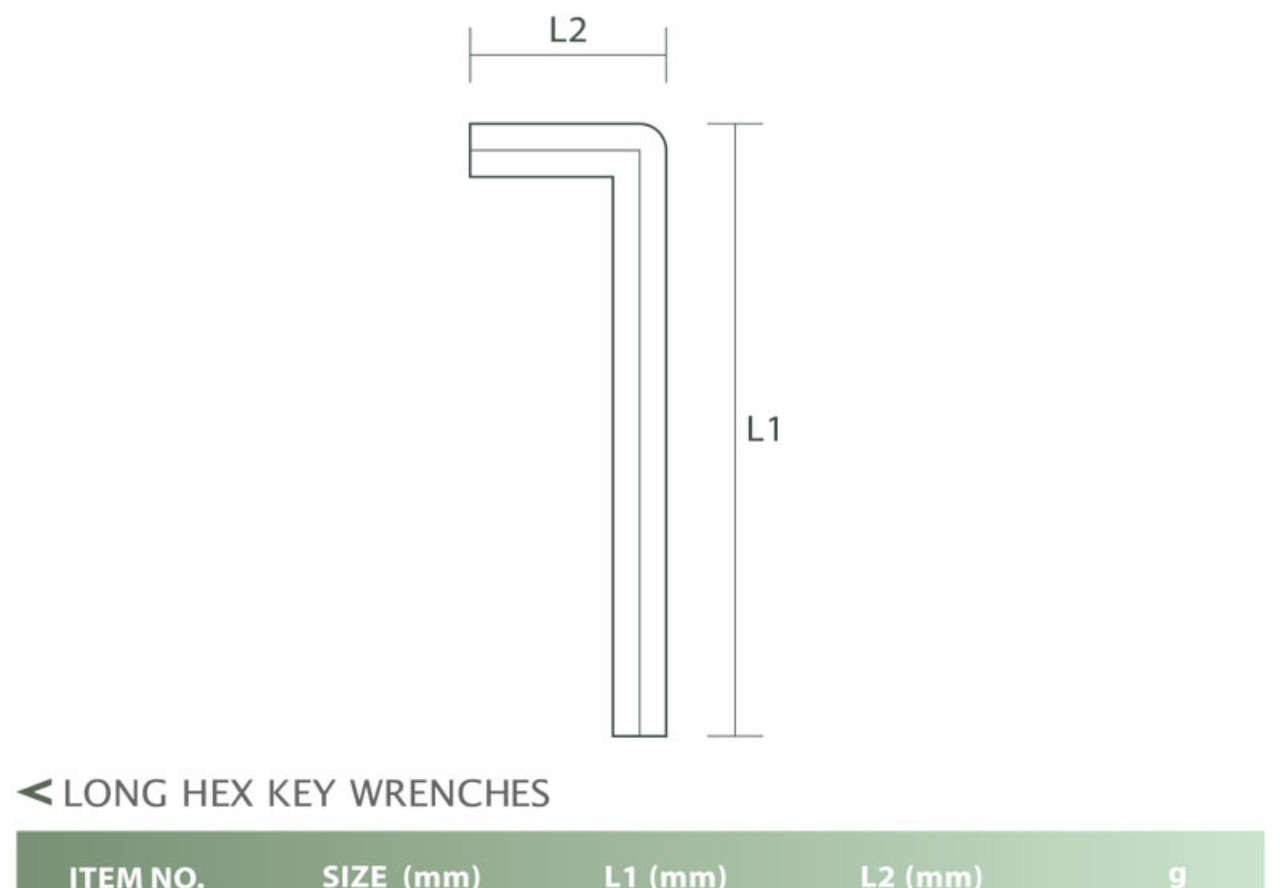

< UZUN ALTIGEN ANAHTARLAR
| ÜRÜN NO. | BOYUT (mm) | L1 (mm) | L2 (mm) | G |
|---|---|---|---|---|
| 57104158 | 1.3 | 62.2 | 12 | 0.9 |
| 57104159 | 1.5 | 62 | 14 | 1.4 |
| 57104160 | 2.0 | 75 | 16 | 2.0 |
| 57104161 | 2.5 | 85 | 18 | 4.0 |
| 57104162 | 3.0 | 90 | 20 | 7.0 |
| 57104163 | 3.5 | 95 | 22 | 10.0 |
| 57104164 | 4.0 | 100 | 25 | 14.0 |
| 57104165 | 4.5 | 110 | 26 | 19.0 |
| 57104166 | 5.0 | 115 | 28 | 25.0 |
| 57104167 | 5.5 | 125 | 30 | 32.0 |
| 57104168 | 6.0 | 135 | 32 | 41.0 |
| 57104169 | 7.0 | 140 | 34 | 61.0 |
| 57104170 | 8.0 | 150 | 36 | 84.0 |
| ÜRÜN NO. | BOYUT (mm) | L1 (mm) | L2 (mm) | G |
|---|---|---|---|---|
| 57104171 | 9.0 | 160 | 38 | 114.0 |
| 57104172 | 10.0 | 170 | 40 | 145.0 |
| 57104173 | 12.0 | 190 | 45 | 251.0 |
| 57104174 | 14.0 | 215 | 54 | 385.0 |
| 57104175 | 17.0 | 245 | 61 | 623.0 |
| 57104176 | 19.0 | 270 | 70 | 876.0 |
| ÜRÜN NO. | BOYUT (inç) | L1 (mm) | L2 (mm) | G |
|---|---|---|---|---|
| 57104177 | 1/16 | 62 | 14 | 1.4 |
| 57104178 | 5/64 | 75 | 16 | 2.0 |
| 57104179 | 3/32 | 85 | 18 | 4.0 |
| 57104180 | 7/64 | 88 | 19 | 6.0 |
| 57104181 | 1/8 | 90 | 20 | 7.0 |
| 57104182 | 9/64 | 95 | 22 | 10.0 |
| 57104183 | 5/32 | 100 | 24 | 14.0 |
| 57104184 | 3/16 | 115 | 28 | 19.0 |
| 57104185 | 7/32 | 125 | 30 | 25.0 |
| 57104186 | 1/4 | 135 | 32 | 41.0 |
| 57104187 | 5/16 | 150 | 36 | 84.0 |
| 57104188 | 3/8 | 170 | 40 | 145.0 |
| 57104189 | 1/2 | 190 | 45 | 251.0 |
| 57104190 | 9/16 | 215 | 56 | 385.0 |
| 57104191 | 5/8 | 245 | 63 | 623.0 |
| 57104192 | 3/4 | 270 | 70 | 876.0 |
