DIŞTAN TORNALAMA TAKIMI (MSBN 75°)
55100799, 55100800, 55100801, 55100802, 55100803, 55100804, 55100805, 55100806, 55100807, 55100808, 55100809, 55100810
Tanım
Özellikler

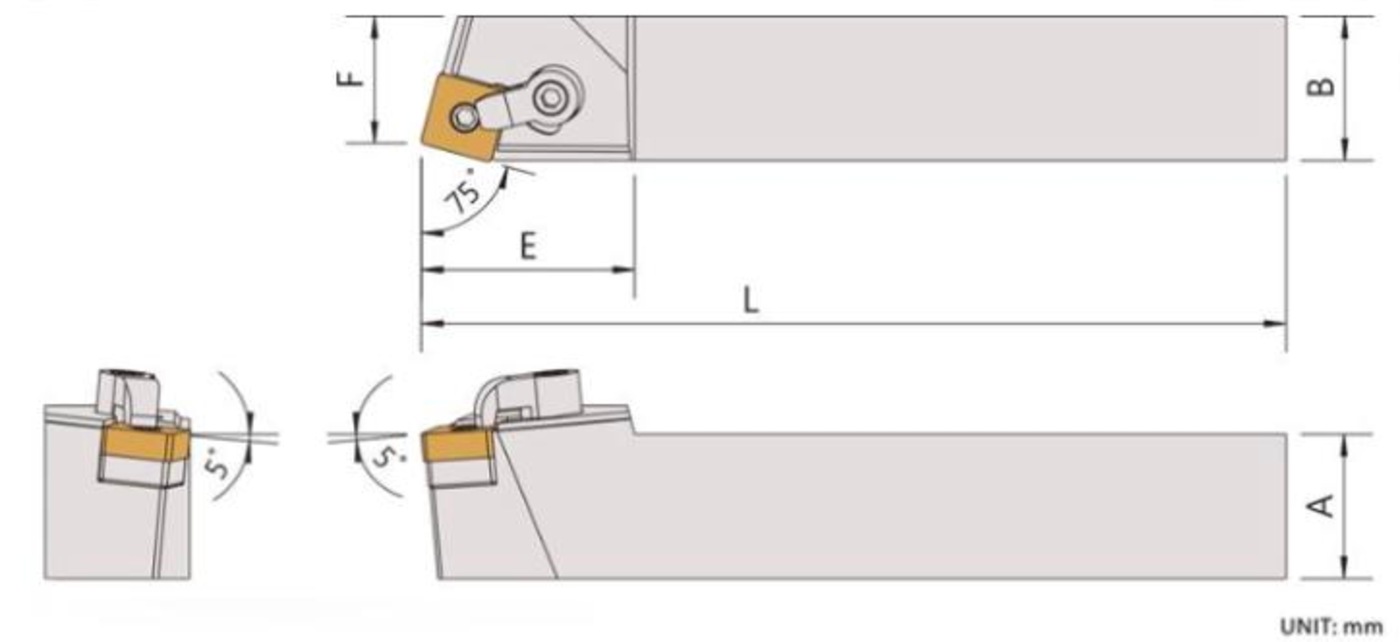

BİRİM: mm
| ÜRÜN NO. | MODEL | SOKMAK | BOYUTLAR | PARÇALAR | ANAHTAR | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sağ / Sol | A | B | L | E | F | |||||||
| 55100799 R/L | MSBNR/L-2020K12 | SNMG1204 | 20 | 20 | 125 | 37 | 17 | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
| 55100800 R/L | MSBNR/L-2525M12 | SNMG1204 | 25 | 25 | 150 | 37 | 22 | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
| 55100801 R/L | MSBNR/L-3225P12 | SNMG1204 | 32 | 25 | 170 | 42 | 22 | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
| 55100802 R/L | MSBNR/L-3232P12 | SNMG1204 | 32 | 32 | 170 | 42 | 27 | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
| 55100803 R/L | MSBNR/L-2020K15 | SNMG1506 | 20 | 20 | 125 | 40 | 17 | SMS-533 | LCS-0822 | CP50-22 | CS7-6030 | LW030 |
| 55100804 R/L | MSBNR/L-2525M15 | SNMG1506 | 25 | 25 | 150 | 40 | 22 | SMS-533 | LCS-0822 | CP50-22 | CS7-6030 | LW030 |
| 55100805 R/L | MSBNR/L-3225P15 | SNMG1506 | 32 | 25 | 170 | 42 | 22 | SMS-533 | LCS-0822 | CP50-22 | CS7-6030 | LW030 |
| 55100806 R/L | MSBNR/L-3232P15 | SNMG1506 | 32 | 32 | 170 | 42 | 27 | SMS-533 | LCS-0822 | CP50-22 | CS7-6030 | LW030 |
| 55100807 R/L | MSBNR/L-2525M19 | SNMG1906 | 25 | 25 | 150 | 42 | 22 | SMS-633 | LCS-1022 | CP50-29 | CS7-8030 | LW040 |
| 55100808 R/L | MSBNR/L-3225P19 | SNMG1906 | 32 | 25 | 170 | 42 | 22 | SMS-633 | LCS-1022 | CP50-29 | CS7-8030 | LW040 |
| 55100809 R/L | MSBNR/L-3232P19 | SNMG1906 | 32 | 32 | 170 | 42 | 27 | SMS-633 | LCS-1022 | CP50-29 | CS7-8030 | LW040 |
| 55100810 R/L | MSBNR/L-4040R19 | SNMG1906 | 40 | 40 | 200 | 42 | 35 | SMS-633 | LCS-1022 | CP50-29 | CS7-8030 | LW040 |
