C SERİSİ AHŞAP İÇİN ÇOKLU MİL DELME BAŞLIKLARI - KONİK HIZLI ADAPTÖR TİPİ
54101418, 54101419, 54101420, 54101421, 54101422, 54101423, 54101424, 54101425, 54101426
Tanım
Özellikler
BİRİM: mm

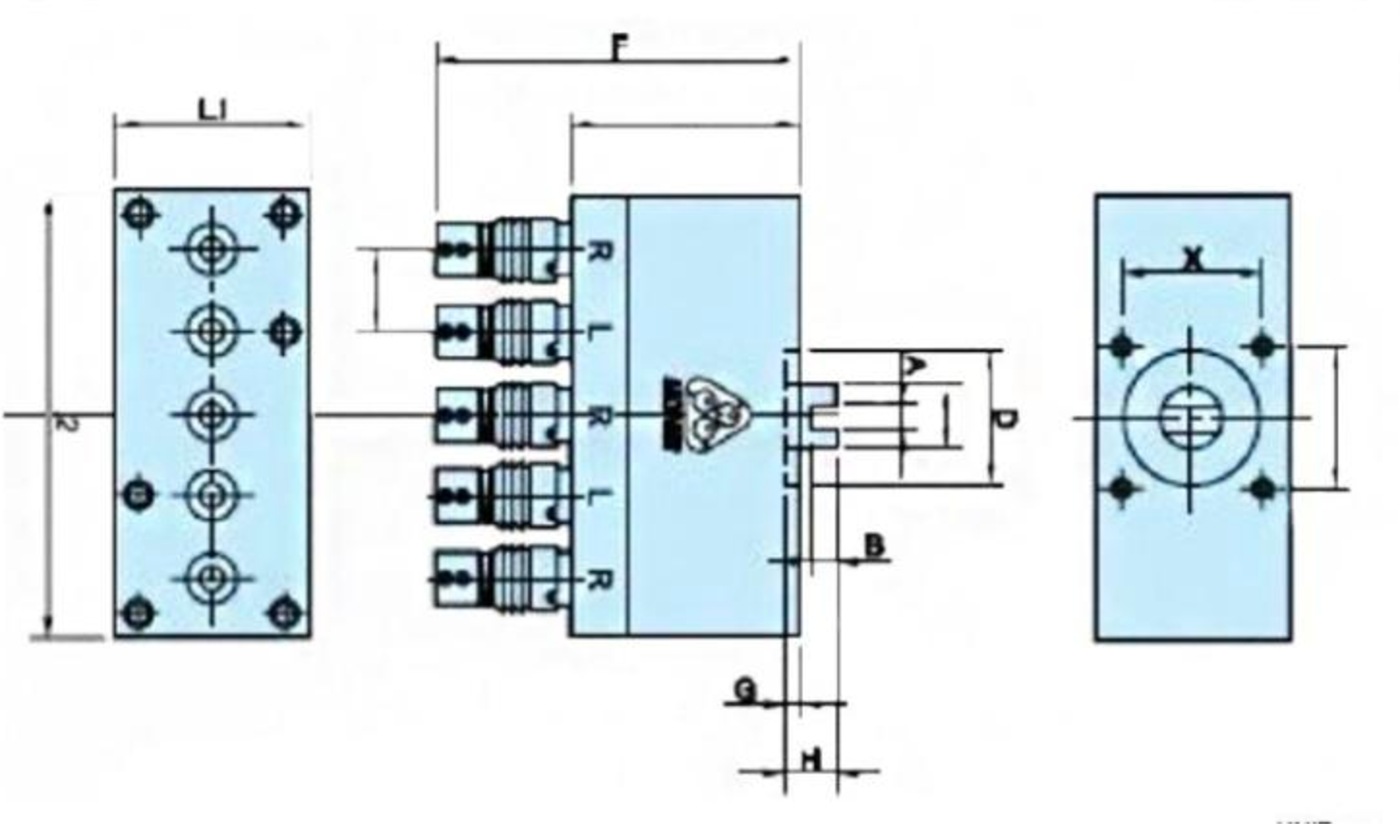

| ÜRÜN NO. | MODEL | BOYUTLAR | ARALIK | AĞIRLIK (kg) |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | L1 | L2 | X | Y | PH | MAKSİMUM KAPASİTE | |||
| 54101418 | 3L-30 | 10 | 10 | 28 | 55 | 53 | 97.5 | 3 | 24 | 62 | 120 | 46 | 88.8 | 30 mm x 3 | Ø20 | 2.5 |
| 54101419 | 3L-32 | 10 | 10 | 28 | 55 | 53 | 97.5 | 3 | 24 | 62 | 120 | 46 | 88.8 | 32 mm x 3 | Ø20 | 2.5 |
| 54101420 | 5L-30 | 10 | 10 | 28 | 55 | 53 | 97.5 | 3 | 24 | 62 | 175 | 46 | 88.8 | 30 mm x 5 | Ø20 | 3.2 |
| 54101421 | 5L-32 | 10 | 10 | 28 | 55 | 53 | 97.5 | 3 | 24 | 62 | 175 | 46 | 88.8 | 32 mm x 5 | Ø20 | 3.2 |
| 54101422 | 7L-32 | 10 | 10 | 28 | 55 | 53 | 97.5 | 3 | 24 | 62 | 245 | 46 | 88.8 | 32 mm x 7 | Ø15 | 4 |
| 54101423 | 9L-32 | 10 | 10 | 28 | 55 | 53 | 97.5 | 3 | 24 | 62 | 308 | 46 | 88.8 | 32 mm x 9 | Ø15 | 4.5 |
| 54101424 | 11L-32 | 10 | 10 | 28 | 55 | 53 | 97.5 | 3 | 24 | 62 | 365 | 46 | 88.8 | 32 mm x 11 | Ø15 | 5 |
| 54101425 | 15L-32 | 10 | 10 | 28 | 55 | 53 | 97.5 | 3 | 24 | 62 | 495 | 46 | 88.8 | 32 mm x 15 | Ø15 | 6.8 |
| 54101426 | 21L-32 | 10 | 10 | 28 | 55 | 53 | 97.5 | 3 | 24 | 62 | 685 | 46 | 88.8 | 32 mm x 21 | Ø15 | 8.5 |
