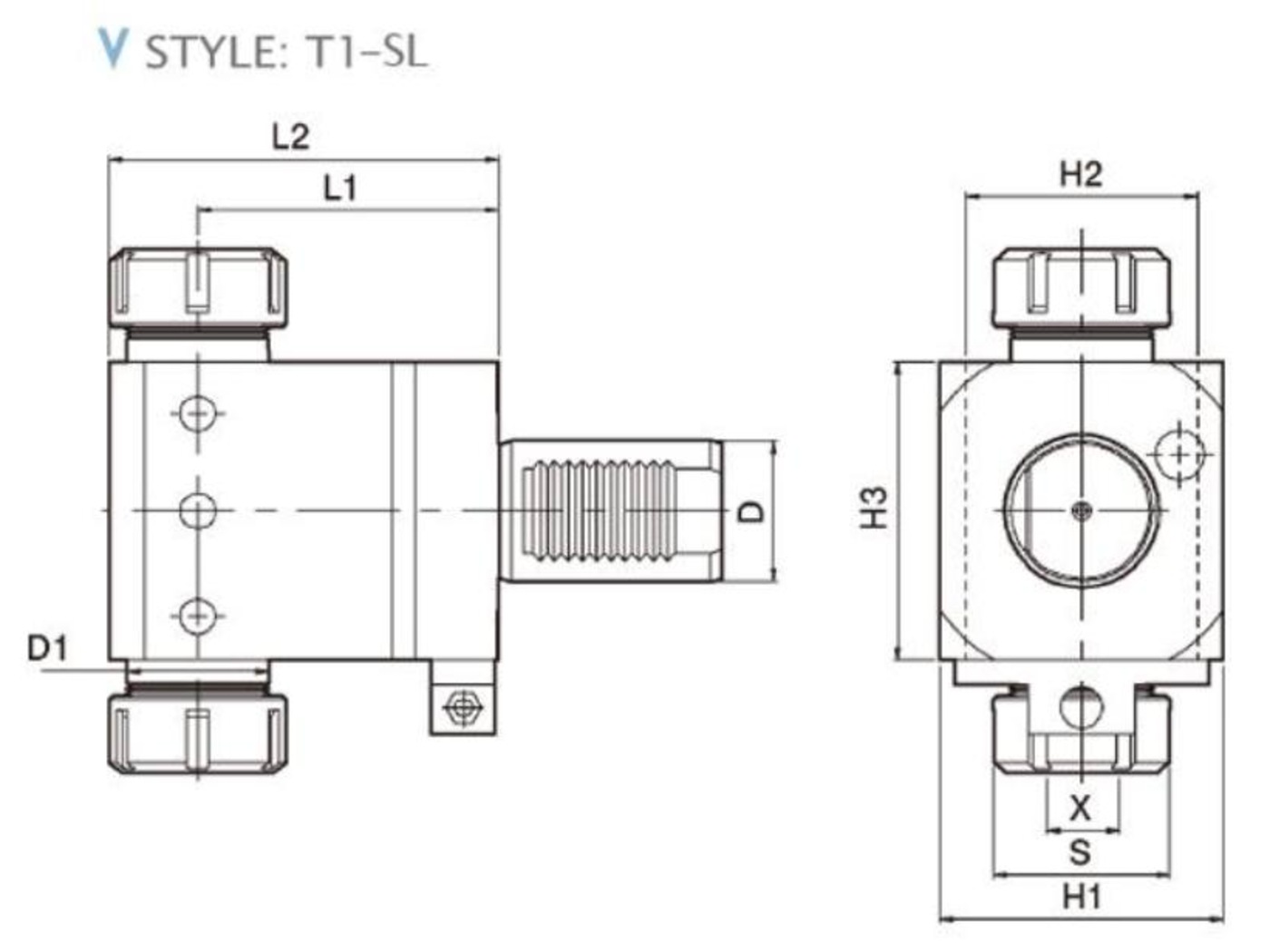

DIN 69800 EKSENEL STATİK TUTUCULAR (STİL: T1-SL)
51101491, 51101492, 51101493, 51101494, 51101495, 51101496, 51101497
Tanım
Özellikler
BİRİM: mm
| ÜRÜN NO. | MODEL | D (DIN 69880) |
D1 | X (Kapasite) |
S | H1 | H2 | H3 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 51101491 | T1-30-32(1-1/4")-65-25 x 2 | 30 | 32(1-1/4") | ER25 1-16 | 42 | 65 | 52 | 62 | 65 | 90 |
| 51101492 | T1-30-32(1-1/4")-85-25 x 2 | 30 | 32(1-1/4") | ER25 1-16 | 42 | 65 | 52 | 62 | 85 | 108 |
| 51101493 | T1-30-32(1-1/4")-100-25 x 2 | 30 | 32(1-1/4") | ER25 1-16 | 42 | 65 | 52 | 62 | 100 | 123 |
| 51101494 | T1-30-32(1-1/4")-120-25 x 2 | 30 | 32(1-1/4") | ER25 1-16 | 50 | 65 | 52 | 62 | 120 | 143 |
| 51101495 | T1-40-32(1-1/4")-85-25 x 2 | 40 | 32(1-1/4") | ER25 1-16 | 50 | 80 | 65 | 85 | 85 | 112 |
| 51101496 | T1-40-40(1-1/2")-85-32 x 2 | 40 | 40(1-1/2") | ER32 2-20 | 50 | 80 | 65 | 85 | 85 | 112 |
| 51101497 | T1-40-40(1-1/2")-100-32 x 2 | 40 | 40(1-1/2") | ER32 2-20 | 50 | 80 | 65 | 85 | 100 | 127 |
