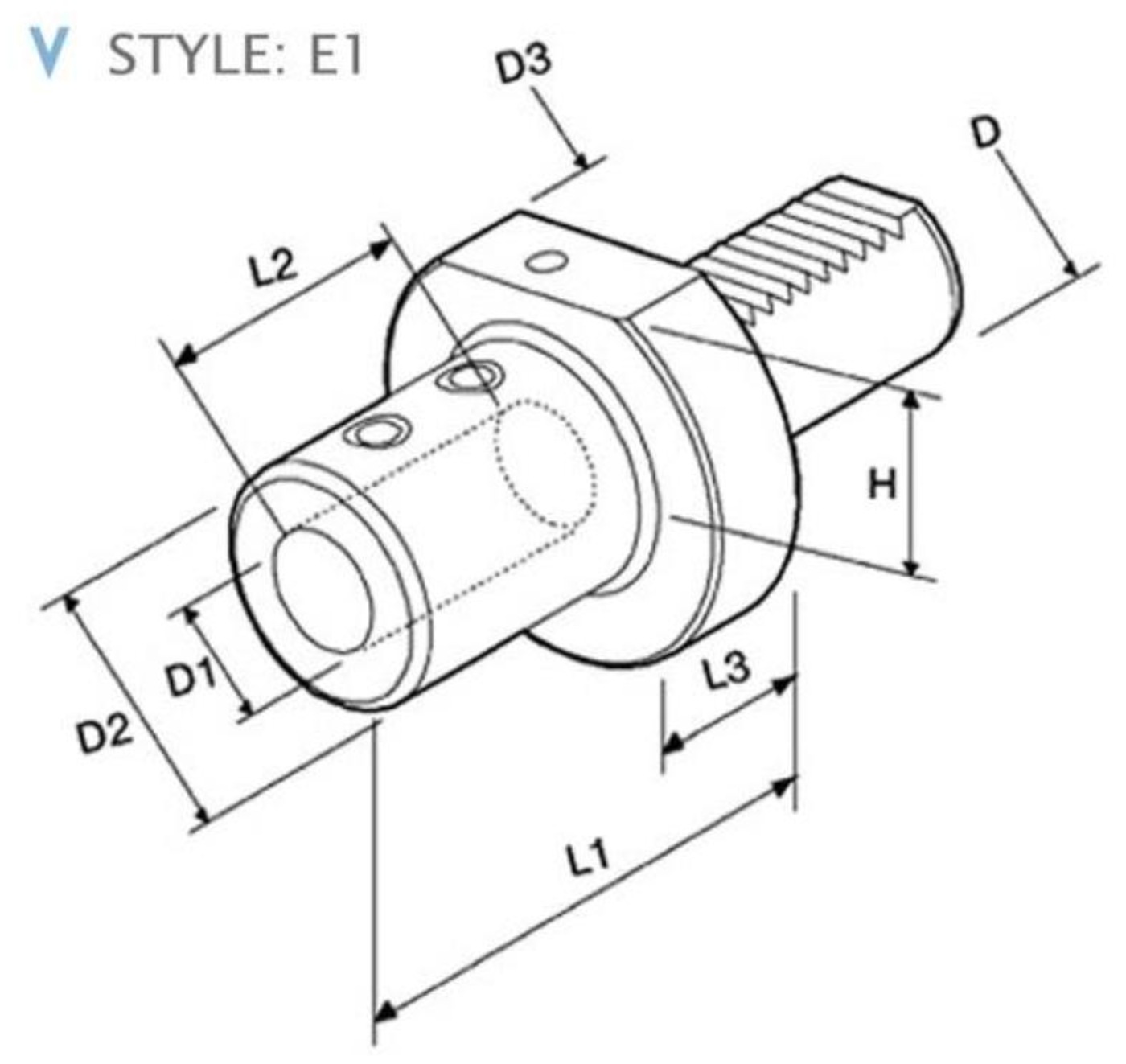

DIN 69880 STATİK TUTUCULAR (STİL: E1)
51101381, 51101382, 51101383, 51101384, 51101385, 51101386, 51101387, 51101388, 51101389, 51101390, 51101391, 51101392, 51101393, 51101394
Tanım
Özellikler
BİRİM: mm
| ÜRÜN NO. | MODEL | D | D1 | D2 | D3 | H | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|---|---|
| 51101381 | E1-20 x 20 (3/4") | 20 | 20 (3/4") | 40 | 50 | - | 67 | 57 | 18 |
| 51101382 | E1-20 x 25 (1") | 20 | 25 (1") | 45 | 50 | - | 71 | 59 | 18 |
| 51101383 | E1-30 x 20 (3/4") | 30 | 20 (3/4") | 40 | 68 | 28 | 67 | 54 | 22 |
| 51101384 | E1-30 x 25 (1") | 30 | 25 (1") | 45 | 68 | 28 | 71 | 59 | 22 |
| 51101385 | E1-30 x 32 (1-1/4") | 30 | 32 (1-1/4") | 52 | 68 | 28 | 75 | .63 | 22 |
| 51101386 | E1-40 x 20 (3/4") | 40 | 20 (3/4") | 40 | 83 | 32.5 | 67 | 54 | 22 |
| 51101387 | E1-40 x 25 (1") | 40 | 25 (1") | 45 | 83 | 32.5 | 75 | 59 | 22 |
| 51101388 | E1-40 x 32 (1-1/4") | 40 | 32 (1-1/4") | 52 | 83 | 32.5 | 75 | 63 | 22 |
| 51101389 | E1-40 x 40 (1-1/2") | 40 | 40 (1-1/2") | 60 | 83 | 32.5 | 90 | 73 | 22 |
| 51101390 | E1-50 x 20 (3/4") | 50 | 20 (3/4") | 40 | 98 | 35 | 67 | 54 | 30 |
| 51101391 | E1-50 x 25 (1") | 50 | 25 (1") | 45 | 98 | 35 | 80 | 59 | 30 |
| 51101392 | E1-50 x 32 (1-1/4") | 50 | 32 (1-1/4") | 52 | 98 | 35 | 80 | 63 | 30 |
| 51101393 | E1-50 x 40 (1-1/2") | 50 | 40 (1-1/2") | 60 | 98 | 35 | 90 | 73 | 30 |
| 51101394 | E1-50 x 50 (2") | 50 | 50 (2") | 70 | 98 | 35 | 100 | 83 | 30 |
