DIN 69880 RADYAL STATİK TUTUCULAR (STİL: B6)
51101318, 51101319, 51101320, 51101321, 51101322
Tanım
Özellikler

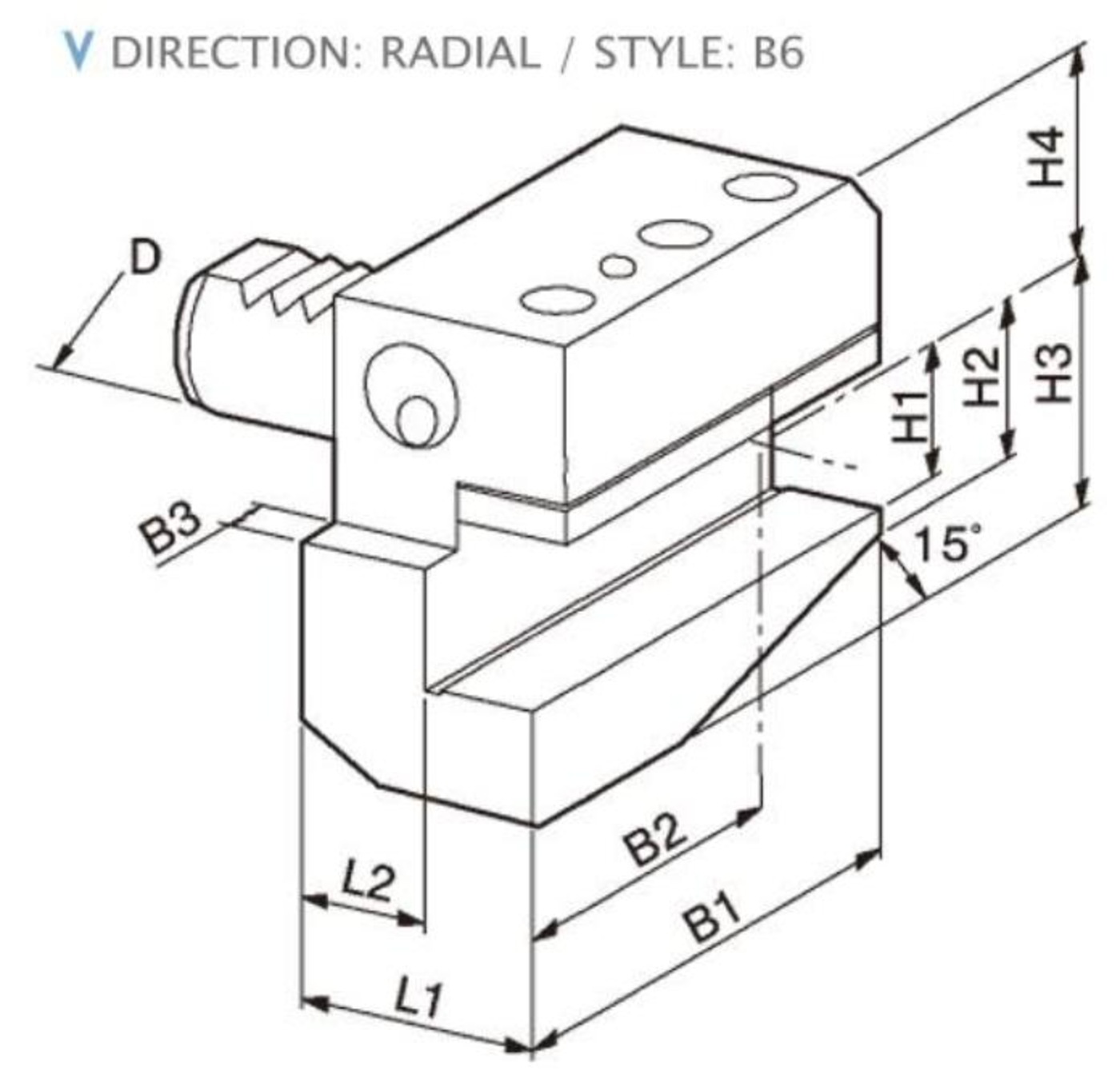

BİRİM: mm
| ÜRÜN NO. | MODEL | D | B1 | B2 | B3 | H1 | H2 | H3 | H4 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101318 | B6-20 x 16 (5/8") | 20 | 75 | 50 | 7 | 16(5/8") | 19 | 30 | 25 | 30 | 16 |
| 51101319 | B6-30 x 20 (3/4") | 30 | 100 | 65 | 10 | 20(3/4") | 26 | 38 | 28 | 40 | 22 |
| 51101320 | B6-40 x 25 (1") | 40 | 118 | 76 | 12.5 | 25(1") | 35 | 48 | 32.5 | 44 | 22 |
| 51101321 | B6-50 x 32 (1-1/4") | 50 | 130 | 80 | 16 | 32(1-1/4") | 42 | 60 | 35 | 55 | 30 |
| 51101322 | B6-60 x 32 (1-1/4") | 60 | 145 | 83 | 18 | 32(1-1/4") | 46 | 62.5 | 42.5 | 60 | 30 |
