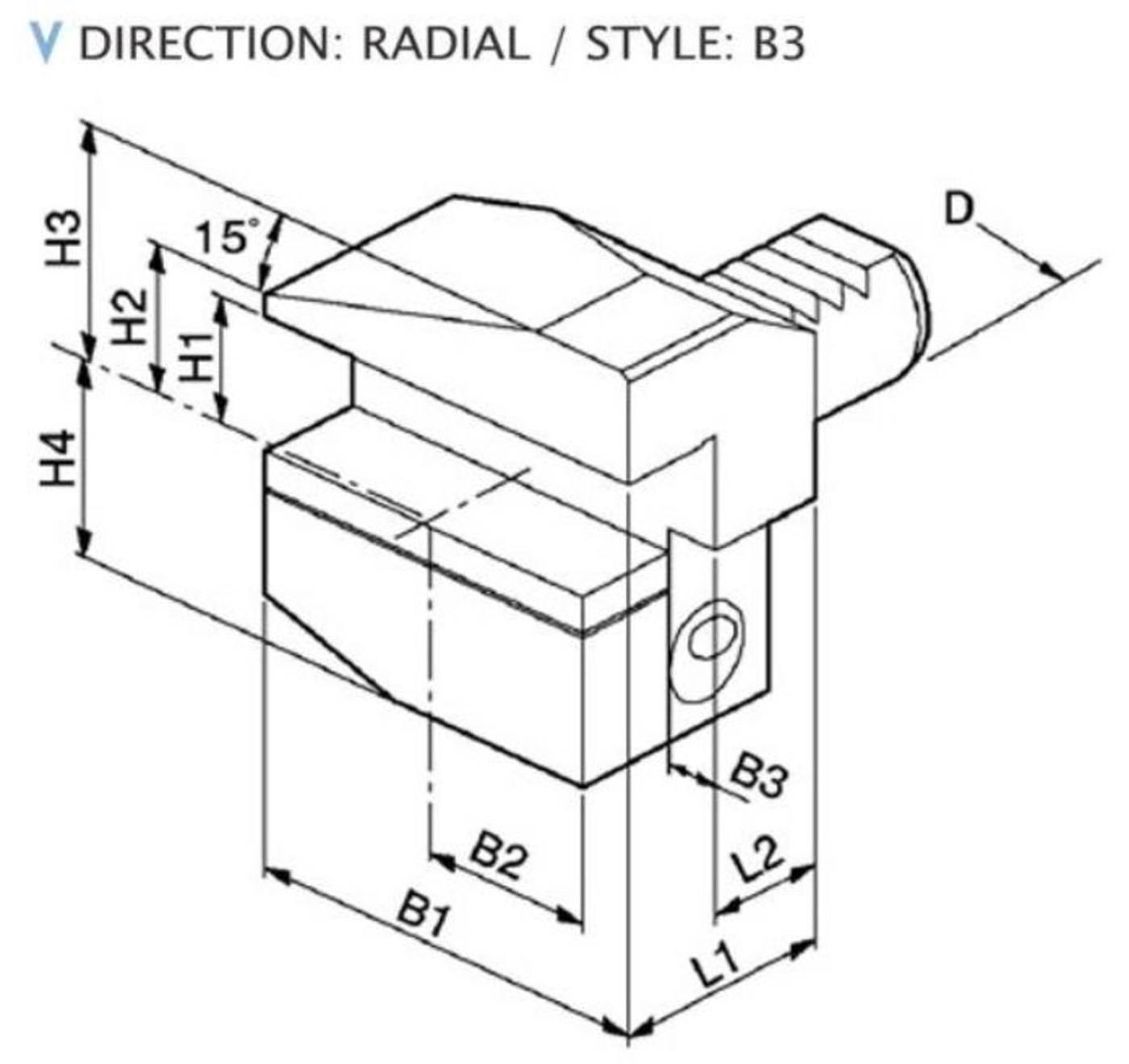

DIN 69880 RADYAL STATİK TUTUCULAR (STİL: B3)
51101303, 51101304, 51101305, 51101306, 51101307
Tanım
Özellikler
BİRİM: mm
| ÜRÜN NO. | MODEL | D | B1 | B2 | B3 | H1 | H2 | H3 | H4 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101303 | B3-20 x 16 (5/8") | 20 | 55 | 30 | 7 | 16(5/8") | 22 | 30 | 25 | 30 | 16 |
| 51101304 | B3-30 x 20 (3/4") | 30 | 70 | 35 | 10 | 20(3/4") | 22 | 38 | 35 | 40 | 22 |
| 51101305 | B3-40 x 25 (1") | 40 | 85 | 42.5 | 12.5 | 25(1") | 30 | 48 | 42.5 | 44 | 22 |
| 51101306 | B3-50 x 32 (1-1/4") | 50 | 100 | 50 | 16 | 32(1-1/4") | 35 | 60 | 50 | 55 | 30 |
| 51101307 | B3-60 x 32 (1-1/4") | 60 | 125 | 62.5 | 16 | 32(1-1/4") | 42.5 | 62.5 | 42.5 | 60 | 30 |
