GWINTOWNIKI SPIRALNE
55102158 ~ 55102201
Opis
Specyfikacja
Super HSS-E ｜ Niepowlekany blank ｜ JIS ｜ ISO 6H

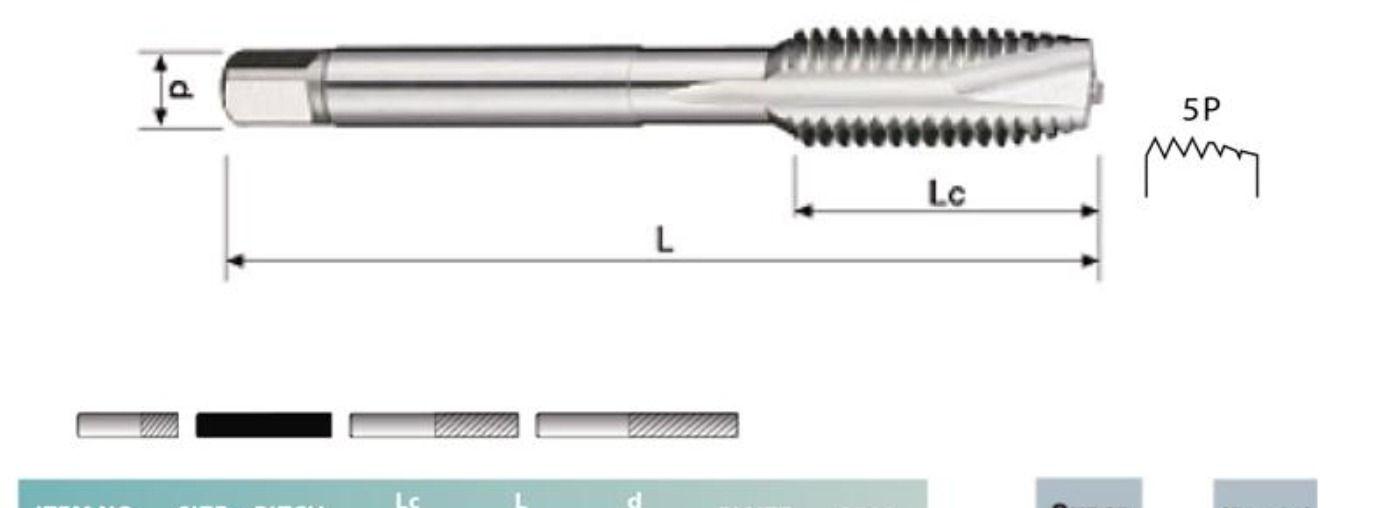

| NR POZYCJI | ROZMIAR x SZEROKOŚĆ | Lc mm | Dł. mm | d mm | FLET | S711 |
|---|---|---|---|---|---|---|
| 55102158 | M2 x 0,4 | 9,5 | 40 | 3 | 2 | • |
| 55102159 | M2,5 x 0,45 | 9,5 | 44 | 3 | 2 | • |
| 55102160 | M2,6 x 0,45 | 9,5 | 44 | 3 | 2 | • |
| 55102161 | M3 x 0,5 | 11 | 46 | 4 | 3 | • |
| 55102162 | M3,5 x 0,6 | 13 | 48 | 4 | 3 | • |
| 55102163 | M4 x 0,5 | 13 | 52 | 5 | 3 | • |
| 55102164 | M4 x 0,7 | 13 | 52 | 5 | 3 | • |
| 55102165 | M4,5 x 0,75 | 13 | 55 | 5 | 3 | • |
| 55102166 | M5 x 0,5 | 16 | 60 | 5.5 | 3 | • |
| 55102167 | M5 x 0,8 | 16 | 60 | 5.5 | 3 | • |
| 55102168 | M6 x 0,75 | 19 | 62 | 6 | 3 | • |
| 55102169 | M6 x 1 | 19 | 62 | 6 | 3 | • |
| 55102170 | M7 x 0,75 | 19 | 65 | 6.2 | 3 | • |
| 55102171 | M7 x 1 | 19 | 65 | 6.2 | 3 | • |
| 55102172 | M8 x 1 | 22 | 70 | 6.2 | 3 | • |
| 55102173 | M8 x 1,25 | 22 | 70 | 6.2 | 3 | • |
| 55102174 | M9 x 1 | 22 | 72 | 7 | 3 | • |
| 55102175 | M9 x 1,25 | 22 | 72 | 7 | 3 | • |
| 55102176 | M10 x 1 | 24 | 75 | 7 | 3 | • |
| 55102177 | M10 x 1,25 | 24 | 75 | 7 | 3 | • |
| 55102178 | M10 x 1,5 | 24 | 75 | 7 | 3 | • |
| 55102179 | M12 x 1 | 29 | 82 | 8,5 | 3 | • |
| 55102180 | M12 x 1,25 | 29 | 82 | 8,5 | 3 | • |
| 55102181 | M12 x 1,5 | 29 | 82 | 8,5 | 3 | • |
| 55102182 | M12 x 1,75 | 29 | 82 | 8,5 | 3 | • |
| 55102183 | M14 x 1 | 30 | 88 | 10.5 | 3 | • |
| 55102184 | M14 x 1,25 | 30 | 88 | 10.5 | 3 | • |
| 55102185 | M14 x 1,5 | 30 | 88 | 10.5 | 3 | • |
| 55102186 | M14 x 2 | 30 | 88 | 10.5 | 3 | • |
| 55102187 | M16 x 1 | 32 | 95 | 12,5 | 3 | • |
| 55102188 | M16 x 1,5 | 32 | 95 | 12,5 | 3 | • |
| 55102189 | M16 x 2 | 32 | 95 | 12,5 | 3 | • |
| 55102190 | M18 x 1 | 37 | 100 | 14 | 3 | • |
| 55102191 | M18 x 1,5 | 37 | 100 | 14 | 3 | • |
| 55102192 | M18 x 2 | 37 | 100 | 14 | 3 | • |
| 55102193 | M18 x 2,5 | 37 | 100 | 14 | 3 | • |
| 55102194 | M20 x 1 | 37 | 105 | 15 | 3 | • |
| 55102195 | M20 x 1,5 | 37 | 105 | 15 | 3 | • |
| 55102196 | M20 x 2 | 37 | 105 | 15 | 3 | • |
| 55102197 | M20 x 2,5 | 37 | 105 | 15 | 3 | • |
| 55102198 | M22 x 2,5 | 38 | 115 | 17 | 3 | • |
| 55102199 | M24 x 3 | 45 | 120 | 19 | 3 | • |
| 55102200 | M27 x 3 | 45 | 130 | 20 | 4 | • |
| 55102201 | M30 x 3,5 | 48 | 135 | 23 | 4 | • |
| MATERIAŁY ROBOCZE | |||
|---|---|---|---|
| P | GR1 | STAL WĘGLOWA | • |
| GR2 | <24 HRC STAL NISKOSTOPOWA | • | |
| GR3 | <30 HRC STAL WYSOKOSTOPOWA | • | |
| H | GR4 | <30~38 HRC HARTOWANA STAL | ◦ |
| GR5 | <30~48 HRC HARTOWANA STAL | ◦ | |
| GR6 | <48~56 HRC HARTOWANA STAL | ||
| GR7 | <56~68 HRC HARTOWANA STAL | ||
| M | GR8 | STAL NIERDZEWNA | • |
| K | GR9 | LANE ŻELAZO | • |
| N | GR10 | ALUMINIUM | • |
| GR11 | MIEDŹ | • | |
| GR12 | TWORZYWA SZTUCZNE | • | |
| GR13 | MATERIAŁ KOMPOZYTOWY FRP CFRP | ||
| GR14 | GRAFIT | ||
| S | GR15 | TYTAN | ◦ |
| GR16 | NIKIEL | ◦ | |
| GR17 | STAL ODPORNA NA ŻAR | ◦ | |
