WYTACZKI (S-CTUP 93°)
55101260, 55101261, 55101262, 55101263, 55101264
Opis
Specyfikacja

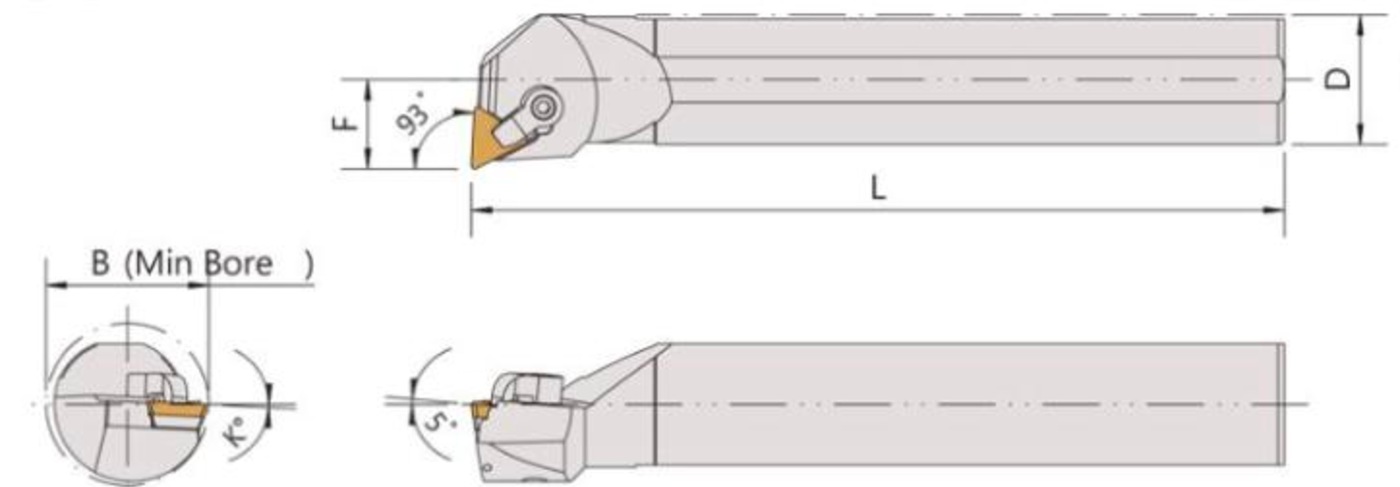

JEDNOSTKA: mm
| NR POZYCJI | MODEL | WSTAWIĆ | WYMIARY | STRONY | KLUCZ | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Prawo / Lewo | D | F | L | B | K° | |||||||
| 55101260 P/L | S12M-CTUPR/L11 | TPMN1103 | 12 | 9 | 150 | 16 | 0° | - | - | CP50-27S | LW025 | |
| 55101261 P/L | S16Q-CTUPR/L11 | TPMN1103 | 16 | 11 | 180 | 20 | 3° | - | - | CP50-21 | CS7-5015 | LW025 |
| 55101262 P/L | S20R-CTUPR/L11 | TPMN1103 | 20 | 13 | 200 | 25 | 3° | - | - | CP50-21 | CS7-5015 | LW025 |
| 55101263 P/L | S25R-CTUPR/L16 | TPMN1603 | 25 | 17 | 200 | 32 | 3° | SMT-321 | CS20045 | CP50-22 | CS7-6024 | LW030 |
| 55101264 P/L | S32S-CTUPR/L16 | TPMN1603 | 32 | 22 | 250 | 40 | 3° | SMT-321 | CS20045 | CP50-22 | CS7-6024 | LW030 |
