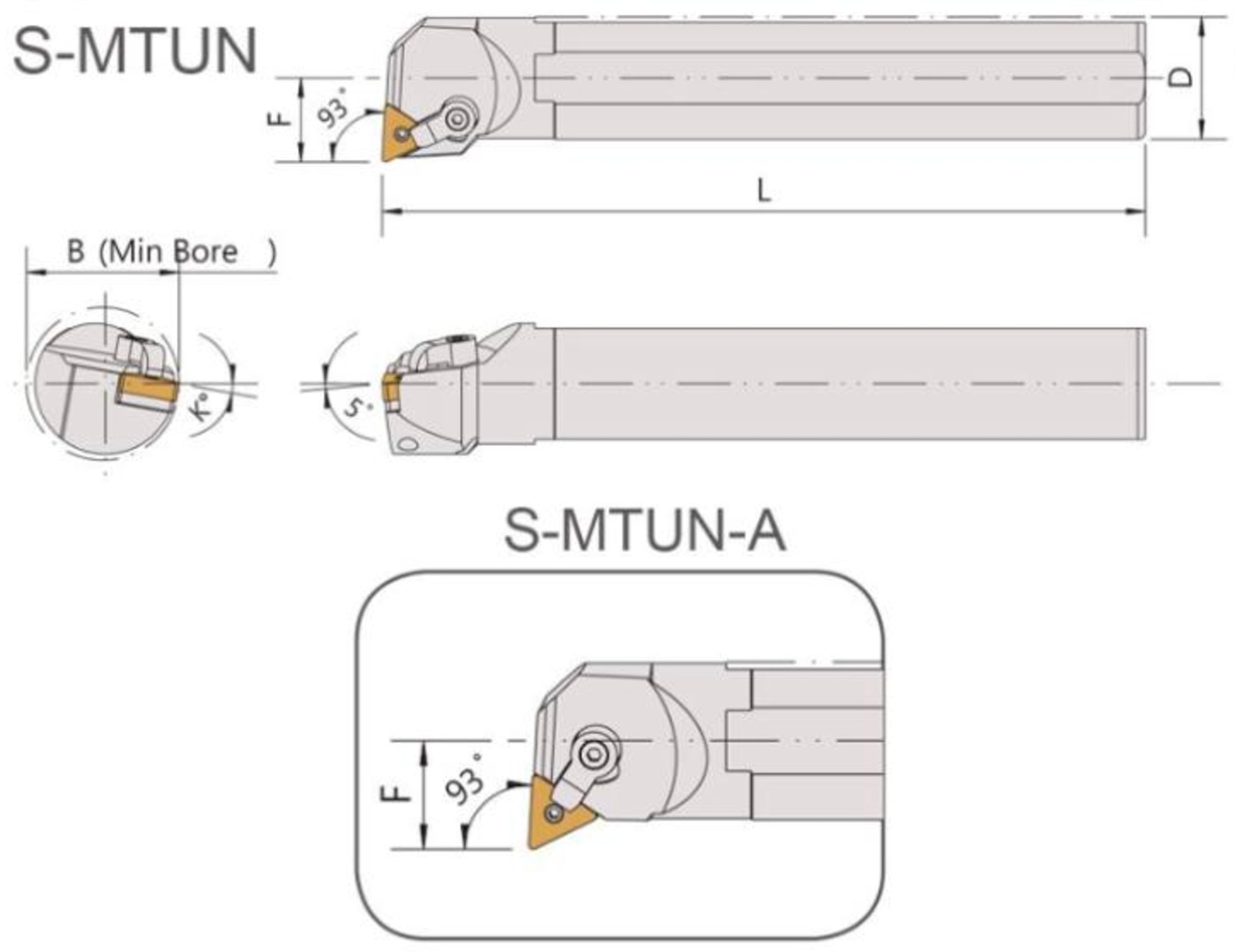

WYTACZARKI (S-MTUN-A 93°)
55101229, 55101230, 55101231, 55101232, 55101233, 55101234, 55101235, 55101236, 55101237, 55101238
Opis
Specyfikacja
JEDNOSTKA: mm
| NR POZYCJI | MODEL | WSTAWIĆ | WYMIARY | STRONY | KLUCZ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Prawo / Lewo | D | F | L | B | K° | ||||||||
| 55101229 P/L | S16Q-MTUNR/L16A | TNMG1604 | 16 | 11 | 180 | 20 | 20° | - | LCS-510 | CP50-26S | CS7-5018 | LW020 | LW025 |
| 55101230 P/L | S20R-MTUNR/L16A | TNMG1604 | 20 | 13 | 200 | 25 | 17° | - | LCS-510 | CP50-26 | CS7-5018 | LW020 | LW025 |
| 55101231 P/L | S25R-MTUNR/L16A | TNMG1604 | 25 | 17 | 200 | 32 | 12° | - | LCS-510 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55101232 P/L | S32S-MTUNR/L16A | TNMG1604 | 32 | 22 | 250 | 40 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55101233 P/L | S40T-MTUNR/L16A | TNMG1604 | 40 | 26,5 | 300 | 50 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55101234 P/L | S50U-MTUNR/L16A | TNMG1604 | 50 | 31 | 350 | 63 | 8° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55101235 P/L | S60V-MTUNR/L16A | TNMG1604 | 60 | 36 | 400 | 70 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55101236 P/L | S63Y-MTUNR/L16A | TNMG1604 | 63 | 37,5 | 500 | 75 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55101237 P/L | S40T-MTUNR/L22A | TNMG2204 | 40 | 26,5 | 300 | 50 | 15° | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
| 55101238 P/L | S50U-MTUNR/L22A | TNMG2204 | 50 | 31 | 350 | 63 | 12° | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
