WYTACZKI (S-SVJC 93°)
55100272, 55100273, 55100274, 55100275, 55100276, 55100277, 55100278
Opis
Specyfikacja
JEDNOSTKA: mm

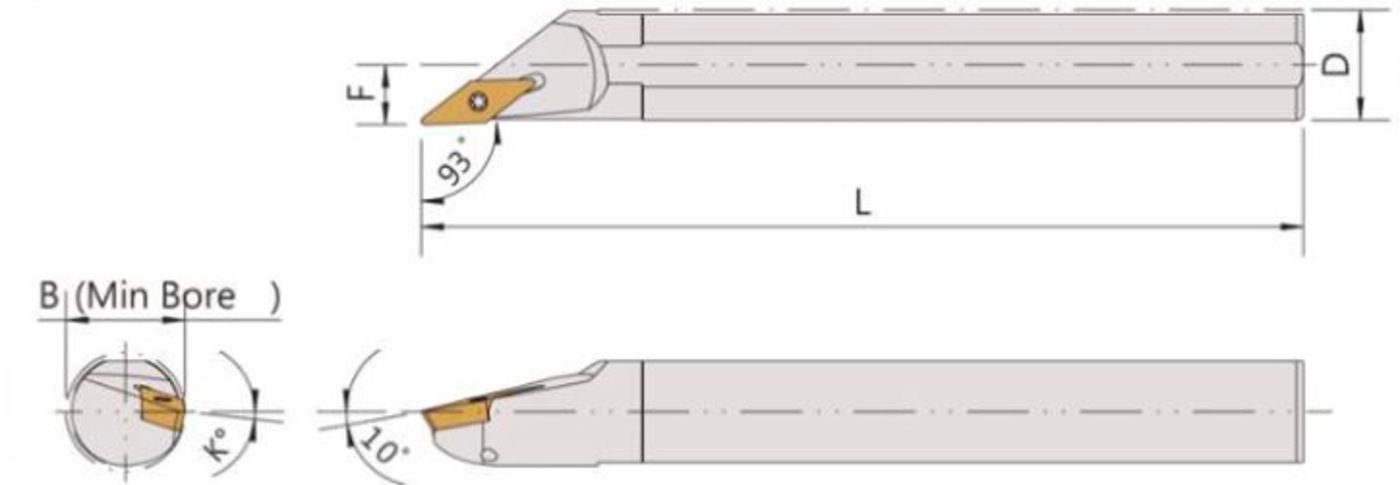

| NR POZYCJI | MODEL | WSTAWIĆ | WYMIARY | STRONY | KLUCZ | ||||
|---|---|---|---|---|---|---|---|---|---|
| Prawo / Lewo | D | F | L | B | K° | ||||
| 55100272 P/L | S12M-SVJCR/L11 | VCMT1103 | 12 | 7 | 150 | 14 | 7° | CS25060 | FT-7 |
| 55100273 P/L | S16Q-SVJCR/L11 | VCMT1103 | 16 | 9 | 180 | 18 | 7° | CS25060 | FT-7 |
| 55100274 P/L | S16Q-SVJCR/L16 | VCMT1604 | 16 | 9 | 180 | 18 | 7° | CS35090 | FT-15 |
| 55100275 P/L | S20R-SVJCR/L16 | VCMT1604 | 20 | 10.5 | 200 | 21 | 6° | CS35090 | FT-15 |
| 55100276 P/L | S25R-SVJCR/L16 | VCMT1604 | 25 | 13,5 | 200 | 27 | 6° | CS35090 | FT-15 |
| 55100277 P/L | S32S-SVJCR/L16 | VCMT1604 | 32 | 17 | 250 | 34 | 4° | CS35090 | FT-15 |
| 55100278 P/L | S40T-SVJCR/L16 | VCMT1604 | 40 | 22 | 300 | 44 | 4° | CS35115 | FT-15 |
