HSK FMA / FMB 正面フライスホルダー
52171312~52171341
説明
仕様
FMA
単位：mm

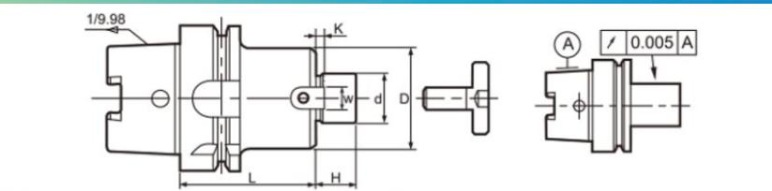

| 商品番号 | L | ød (h6) | øD | H | K | W |
|---|---|---|---|---|---|---|
| 52171312 | 60 | 25.4 | 50 | 20 | 5 | 9.5 |
| 52171313 | 120 | |||||
| 52171314 | 60 | 31.75 | 60 | 22 | 7 | 12.7 |
| 52171315 | 120 | |||||
| 52171316 | 60 | 38.1 | 80 | 25 | 9 | 15.9 |
| 52171317 | 120 | |||||
| 52171318 | 50 | 25.4 | 50 | 20 | 5 | 9.5 |
| 52171319 | 120 | |||||
| 52171320 | 60 | 31.75 | 60 | 22 | 7 | 12.7 |
| 52171321 | 120 | |||||
| 52171322 | 60 | 38.1 | 80 | 25 | 9 | 15.9 |
| 52171323 | 120 | |||||
| 52171324 | 60 | 50.8 | 100 | 28 | 12 | |
| 52171325 | 120 |
FMB
単位：mm
| 商品番号 | L | ød (h6) | øD | H | K | W |
|---|---|---|---|---|---|---|
| 52171326 | 50 | 22 | 48 | 18 | 5 | 10 |
| 52171327 | 120 | |||||
| 52171328 | 60 | 27 | 60 | 20 | 6 | 12 |
| 52171329 | 120 | |||||
| 52171330 | 60 | 32 | 72 | 22 | 7 | 14 |
| 52171331 | 120 | |||||
| 52171332 | 60 | 40 | 80 | 25 | 8 | 16 |
| 52171333 | 120 | |||||
| 52171334 | 50 | 22 | 48 | 18 | 5 | 10 |
| 52171335 | 120 | |||||
| 52171336 | 60 | 27 | 60 | 20 | 6 | 12 |
| 52171337 | 120 | |||||
| 52171338 | 60 | 32 | 72 | 22 | 7 | 14 |
| 52171339 | 120 | |||||
| 52171340 | 60 | 40 | 80 | 25 | 8 | 16 |
| 52171341 | 120 |
