MUR FLANGE PUTAR
52140137~52140149, 52172916
Keterangan
Spesifikasi

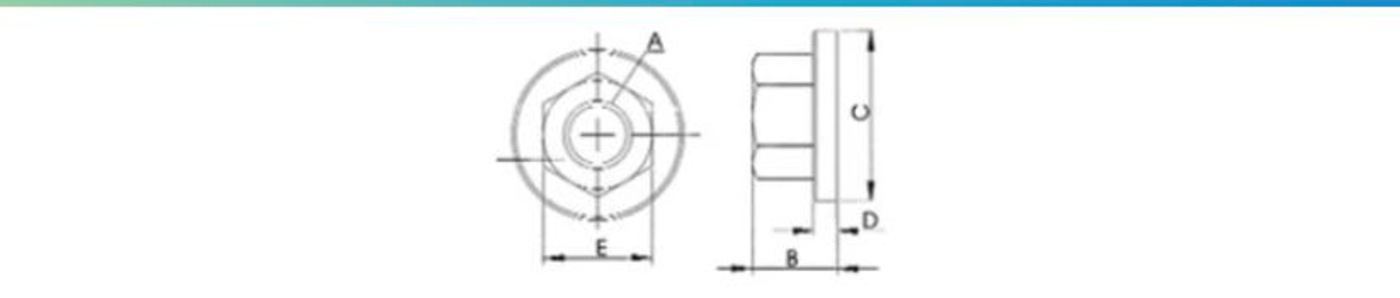

| MUR FLANGE PUTAR | SATUAN: UKURAN INCI |
| NOMOR BARANG | A | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| 52140137 | 3/8"-16 | 15 | 22 | 4.5 | 17 |
| 52140138 | 1/2"-13UNC | 21 | 28 | 6.5 | 21 |
| 52172916 | 1/2"-12 | 21 | 28 | 6.5 | 21 |
| 52140139 | 5/8"-11 | 23 | 35 | 6.5 | 26 |
| 52140140 | 3/4"-10 | 28 | 40 | 7 | 32 |
| MUR FLANGE PUTAR | SATUAN: UKURAN METRIK |
| NOMOR BARANG | A | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| 52140144 | M10x1.5 | 15 | 22 | 4.5 | 17 |
| 52140145 | M12x1.75 | 21 | 28 | 6.5 | 21 |
| 52140146 | M14x2.0 | 21 | 28 | 6.5 | 21 |
| 52140147 | M16x2.0 | 23 | 35 | 6.5 | 26 |
| 52140149 | M20x2.5 | 28 | 40 | 7 | 32 |
