50 BUAH PERANGKAT PENJEPIT
52172876~52172884, 52140015~52140016
Keterangan
Spesifikasi
UKURAN METRIK

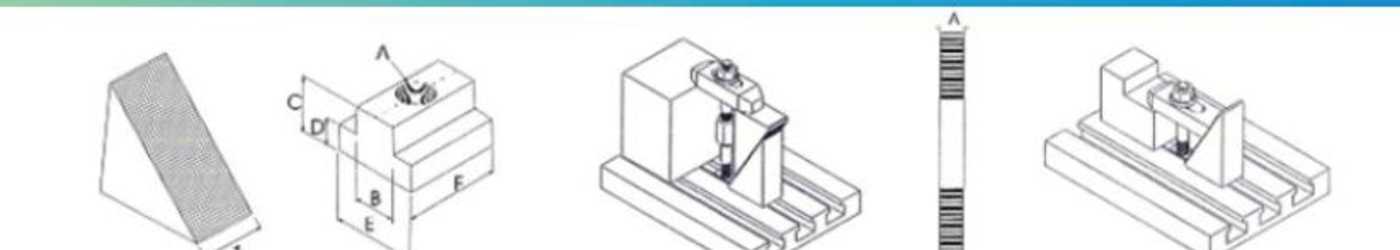

| NOMOR BARANG | UKURAN STUD (A) | SLOT T | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | LEBAR BLOK (T) | SEDANG MENGEMAS |
|---|---|---|---|---|---|---|---|---|---|
| 52172876 | M10x1.5 | T12 | 11.5 | 12 | 6.8 | 17.5 | 22 | 25 | Nampan kayu |
| 52172877 | M12x1.75 | T14 | 13.8 | 16 | 8 | 22 | 28 | 25 | Nampan kayu |
| 52172878 | M12x1.75 | T16 | 15.5 | 16 | 8 | 25 | 28 | 25 | Nampan kayu |
| 52172879 | M12x1.75 | T14 | 13.8 | 16 | 8 | 22 | 28 | 32 | Nampan kayu |
| 52172880 | M12x1.75 | T16 | 15.5 | 16 | 8 | 25 | 28 | 32 | Nampan kayu |
| 52172881 | M14x2.0 | T16 | 15.5 | 16 | 8 | 25 | 28 | 25 | Nampan kayu |
| 52172882 | M14x2.0 | T16 | 15.5 | 16 | 8 | 25 | 28 | 32 | Nampan kayu |
| 52172883 | M16x2.0 | T18 | 17.5 | 19 | 11 | 28 | 31 | 25 | Nampan kayu |
| 52172884 | M16x2.0 | T18 | 17.5 | 19 | 11 | 28 | 31 | 32 | Nampan kayu |
| 52140015 | M18x2.5 | T20 | 19.5 | 24 | 12 | 32 | 38 | 38 | Nampan kayu |
| 52140016 | M20x2.5 | T22 | 21.7 | 28 | 14 | 35 | 38 | 38 | Nampan kayu |
