52 PCS PERANGKAT PENJEPIT
52140009-1, 52140010~52140014, 52172850~52172853
Keterangan
Spesifikasi
PAKET TERMASUK:
- 24 buah kancing, masing-masing 4 buah dengan panjang: 3", 4", 5", 6", 7", 8"
- 6 mur T-slot
- 6 mur flensa
- 4 mur penghubung
- Blok 12 langkah (6 set, 2 buah/set)
- penjepit 6 langkah
- Rak plastik/nampan kayu/kotak kayu yang pas
UKURAN METRIK

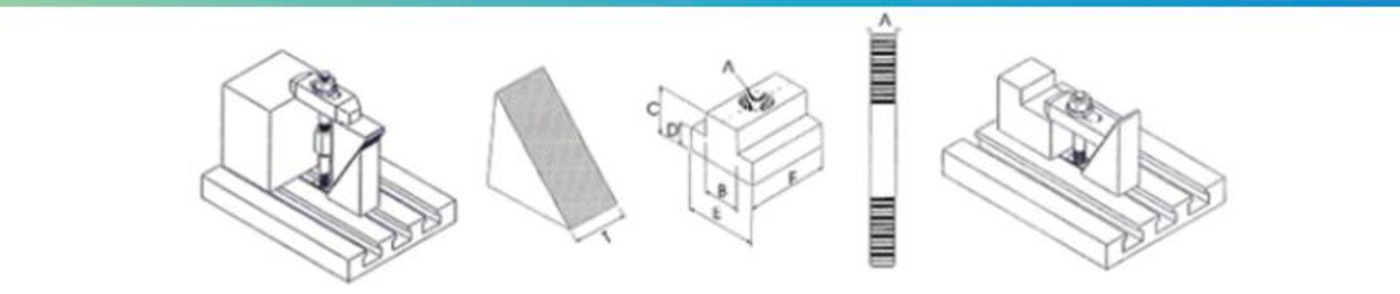

| NOMOR BARANG | UKURAN STUD (A) | SLOT T | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | LEBAR BLOK (T) | SEDANG MENGEMAS |
|---|---|---|---|---|---|---|---|---|---|
| 52140009-1 | M8x1.25 | T10 | 9.7 | 12 | 6 | 16 | 20 | 25 | Rak plastik |
| 52140010 | M10x1.5 | T12 | 11.5 | 12 | 6.8 | 17.5 | 22 | 25 | Rak plastik |
| 52140011 | M12x1.75 | T14 | 13.8 | 16 | 8 | 22 | 28 | 25 | Rak plastik |
| 52140012 | M12x1.75 | T16 | 15.5 | 16 | 8 | 25 | 28 | 25 | Rak plastik |
| 52172850 | M12x1.75 | T14 | 13.8 | 16 | 8 | 22 | 28 | 32 | Rak plastik |
| 52172851 | M12x1.75 | T16 | 15.5 | 16 | 8 | 25 | 28 | 32 | Rak plastik |
| 52140013 | M14x2.0 | T16 | 15.5 | 16 | 8 | 25 | 28 | 25 | Rak plastik |
| 52172852 | M14x2.0 | T16 | 15.5 | 16 | 8 | 25 | 28 | 32 | Rak plastik |
| 52140014 | M16x2.0 | T18 | 17.5 | 19 | 11 | 28 | 31 | 25 | Rak plastik |
| 52172853 | M16x2.0 | T18 | 17.5 | 19 | 11 | 28 | 31 | 32 | Rak plastik |
| 52140014-1 | M18x2.5 | T20 | 19.5 | 24 | 12 | 32 | 38 | 38 | Nampan kayu |
| 52140014-2 | M20x2.5 | T22 | 21.7 | 28 | 14 | 35 | 38 | 38 | Nampan kayu |
| 52140014-3 | M24x3.0 | T28 | 27,5 | 36 | 18 | 44 | 49 | 50 | Kotak kayu |
