KANCING TARIK - TIPE BT (UNTUK MAS403)
52101735~52101742, 52171428
Keterangan

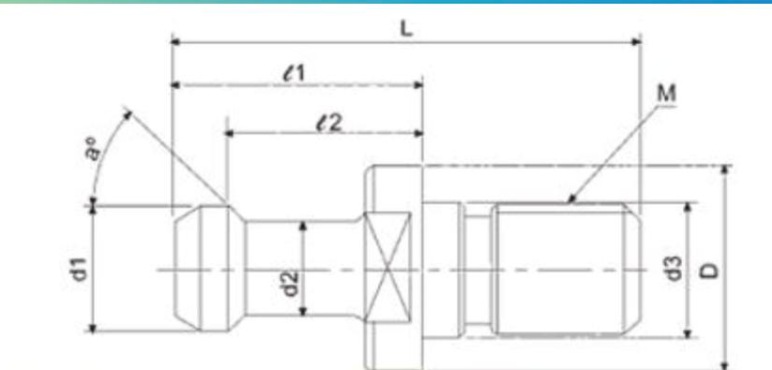

Spesifikasi
SATUAN: mm
| NOMOR BARANG | JENIS | a° | L | e1 | e2 | D | d1 | d2 | d2 | M |
|---|---|---|---|---|---|---|---|---|---|---|
| 52101735 | BT30×45° | 45 | 43 | 23 | 18 | 16.5 | 11 | 7 | 12.5 | M12 |
| 52101736 | BT30×60° | 60 | 43 | 23 | 18 | 16.5 | 11 | 7 | 12.5 | M12 |
| 52171428 | BT30×90° | 90 | 43 | 23 | 18 | 16.5 | 11 | 7 | 12.5 | M12 |
| 52101737 | BT40×45° | 45 | 60 | 35 | 28 | 23.0 | 15 | 10 | 17.0 | M16 |
| 52101738 | BT40×60° | 60 | 60 | 35 | 28 | 23.0 | 15 | 10 | 17.0 | M16 |
| 52101739 | BT40×90° | 90 | 60 | 35 | 28 | 23.0 | 15 | 10 | 17.0 | M16 |
| 52101740 | BT50×45° | 45 | 90 | 45 | 35 | 38.0 | 23 | 17 | 25.0 | M24 |
| 52101741 | BT50×60° | 60 | 90 | 45 | 35 | 38.0 | 23 | 17 | 25.0 | M24 |
| 52101742 | BT50×90° | 90 | 90 | 45 | 35 | 38.0 | 23 | 17 | 25.0 | M24 |
