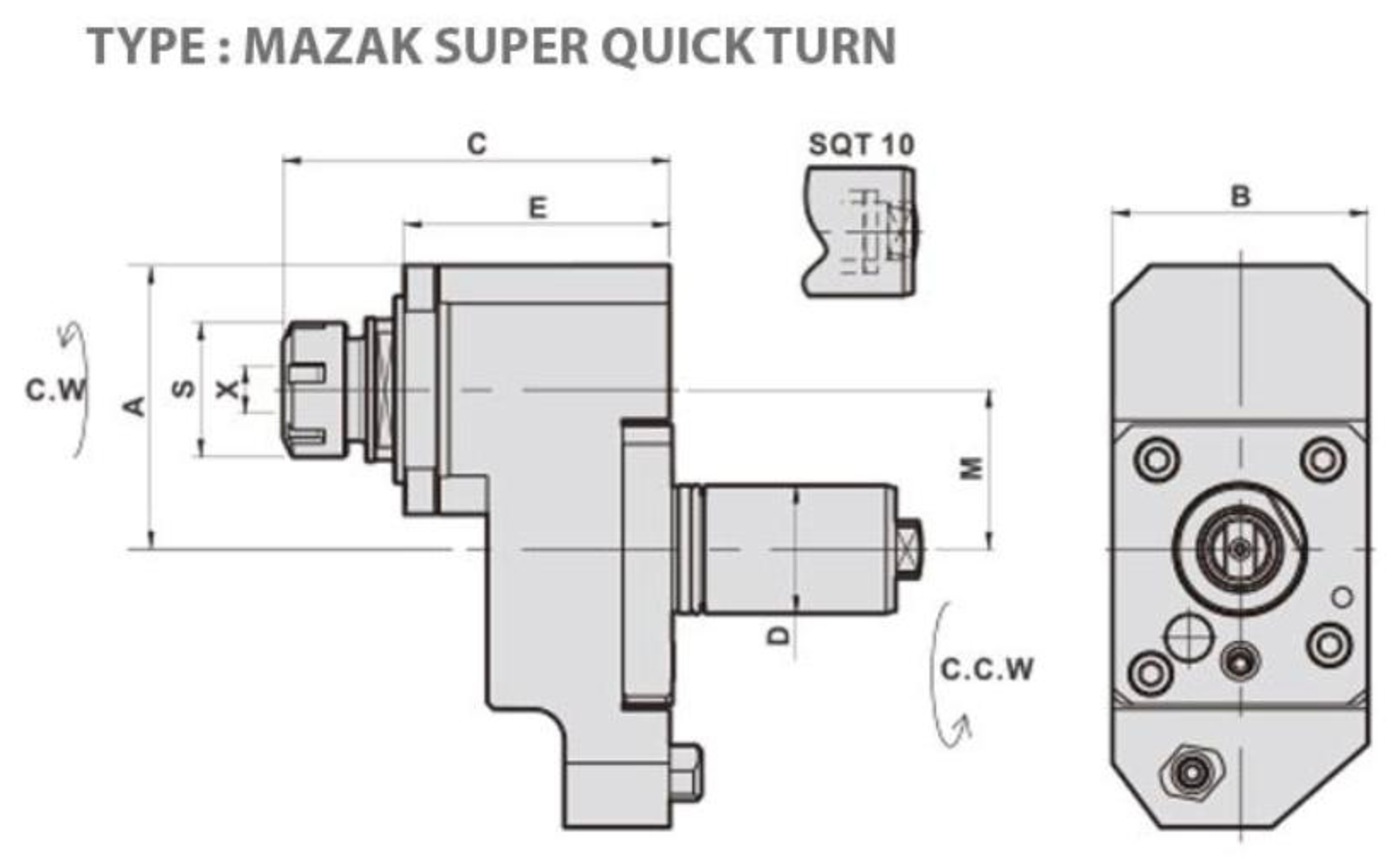

KEPALA PENGGILINGAN DAN PENGEBORAN TIPE V OFFSET (0°) (TIPE: MAZAK SUPER QUICK TURN)
51101763, 51101764, 51101765, 51101766, 51101767, 51101768, 51101769
Keterangan
Spesifikasi
SATUAN: mm
| NOMOR BARANG | JENIS MESIN | GAYA | D | X (KAPASITAS) |
S | MAKS. RPM |
A | B | C | G | M | MODEL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101763 | SQT10M-12D 15M-16D SQT200M-16D 250M-16D |
QTN100M/150M SQT10M |
40 | 1-16 ER25 | 42 | 5000 | 88 | 75 | 103 | 90 | 50 | 50352700-25A |
| 51101764 | 88 | 75 | 103 | 79 | 50 | 5352700 | ||||||
| 51101765 | SQT15M-12D 18M-12D SQT200M-12D 250M-12D |
QTN200M/250M SQT15M/18M |
40 | 1-16 ER25 | 42 | 5000 | 89 | 80 | 116 | 81,5 | 50 | 5362200 |
| 51101766 | (1:2) 8000 |
89 | 75 | 116 | 84 | 50 | *5362201 | |||||
| 51101767 | 2-20 ER32 | 50 | 5000 | 89 | 80 | 122 | 81,5 | 50 | 5362232 | |||
| 51101768 | QTNX300M/350M | SQT128M/30M | 50 | 2-20ER32 | 50 | 5000 | 108 | 96 | 122 | 86,5 | 70 | 5382100 |
| 51101769 | 50 | 3-26 ER40 | 63 | 5000 | 108 | 96 | 137 | 86,5 | 70 | 5382100-ER40 |
