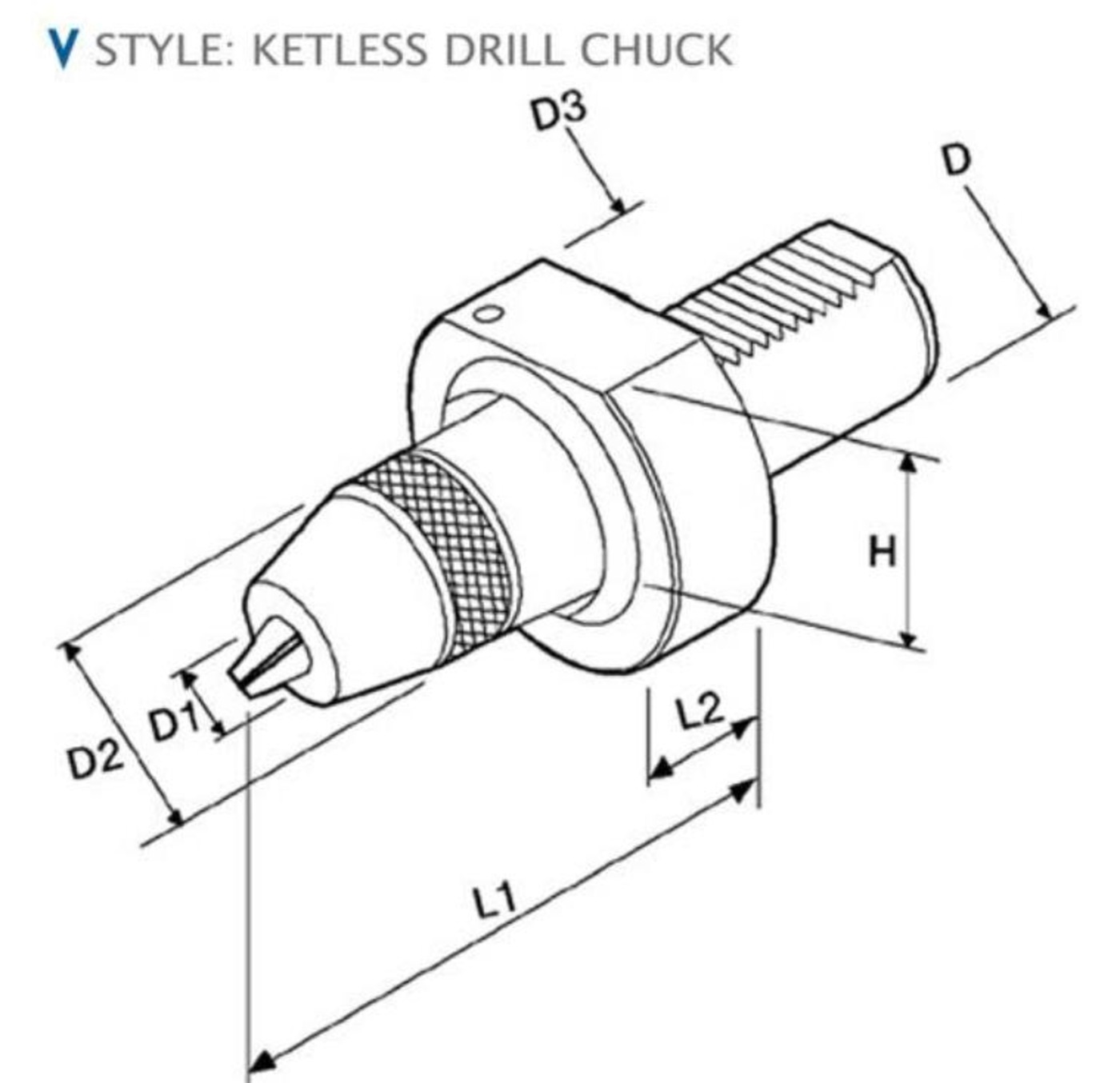

DIN 69880 PENAHAN STATIS (GAYA: CHUCK BOR TANPA KUNCI)
51101456, 51101457, 51101458, 51101459, 51101460
Keterangan
Spesifikasi
SATUAN: mm
| NOMOR BARANG | MODEL | D | D1 | D2 | D3 | H | L1 | L2 |
|---|---|---|---|---|---|---|---|---|
| 51101456 | CHUCK-30-13 | 30 | 1-13 | 51 | 68 | 28 | 85 | 22 |
| 51101457 | CHUCK-40-13 | 40 | 1-13 | 51 | 83 | 32,5 | 85 | 22 |
| 51101458 | CHUCK-40-16 | 40 | 3-16 | 58 | 83 | 32,5 | 90 | 22 |
| 51101459 | CHUCK-50-13 | 50 | 1-13 | 51 | 98 | 35 | 85 | 30 |
| 51101460 | CHUCK-50-16 | 50 | 3-16 | 58 | 98 | 35 | 90 | 30 |
