Penahan Statis Aksial DIN 69880 (Gaya: C4)
51101348, 51101349, 51101350, 51101351, 51101352
Keterangan

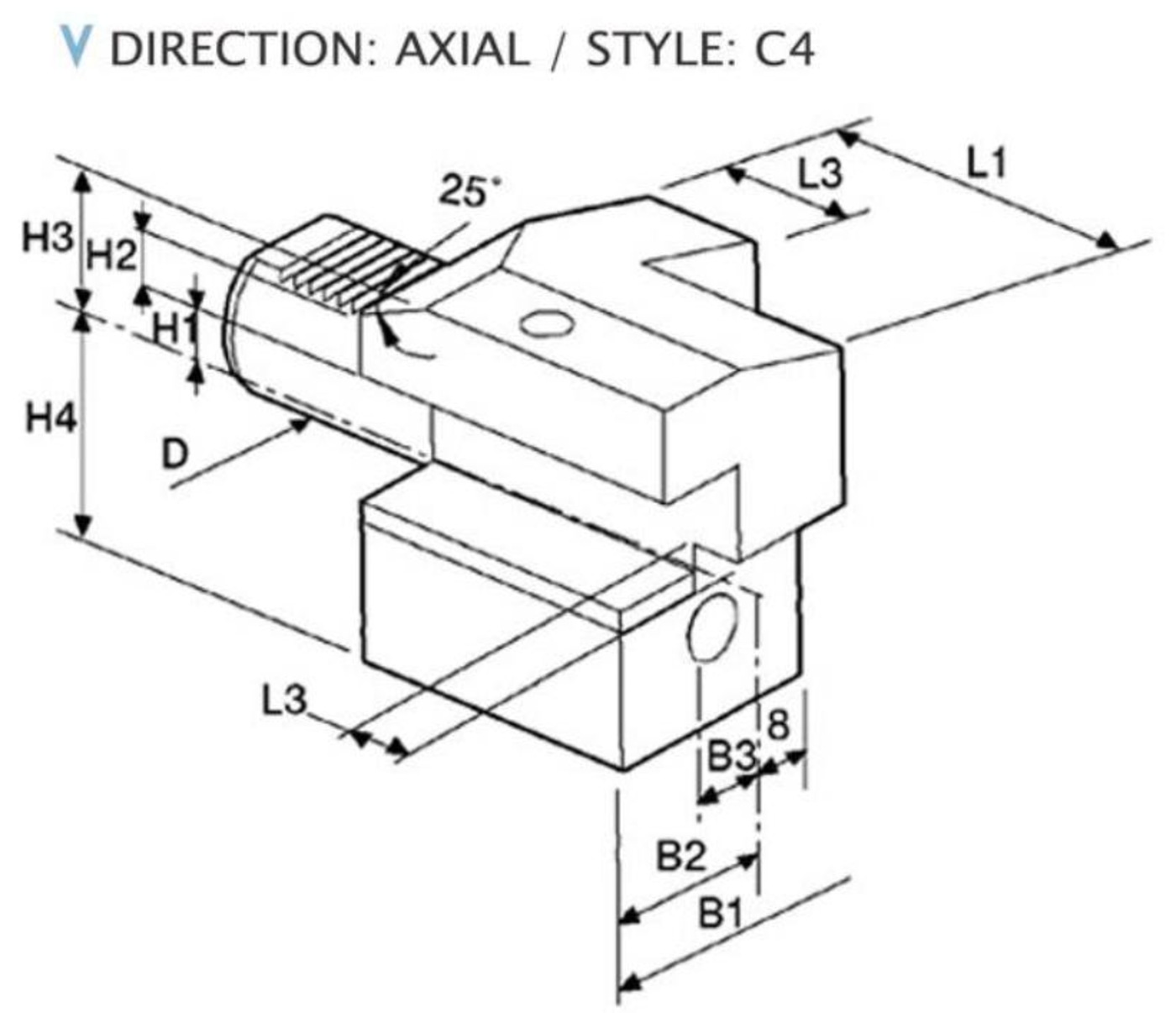

Spesifikasi
SATUAN: mm
| NOMOR BARANG | MODEL | D | B1 | B2 | B3 | H1 | H2 | H3 | H4 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101348 | C4-20 x 16 (5/8") | 20 | 65 | 40 | 26 | 16(5/8") | 23 | 30 | 25 | 50 | 7 | 30 |
| 51101349 | C4-30 x 20 (3/4") | 30 | 76 | 41 | 23 | 20(3/4") | 28 | 38 | 35 | 70 | 10 | 30 |
| 51101350 | C4-40 x 25 (1") | 40 | 90 | 47,5 | 25,5 | 25(1) | - | 48 | 42,5 | 85 | 12.5 | 30 |
| 51101351 | C4-50 x 32 (1-1/4") | 50 | 105 | 55 | 30.5 | 32(1-1/4") | - | 60 | 50 | 100 | 16 | 40 |
| 51101352 | C4-60 x 32 (1-1/4") | 60 | 125 | 62,5 | 33 | 32(1-1/4") | - | 62,5 | 62,5 | 125 | 16 | 40 |
