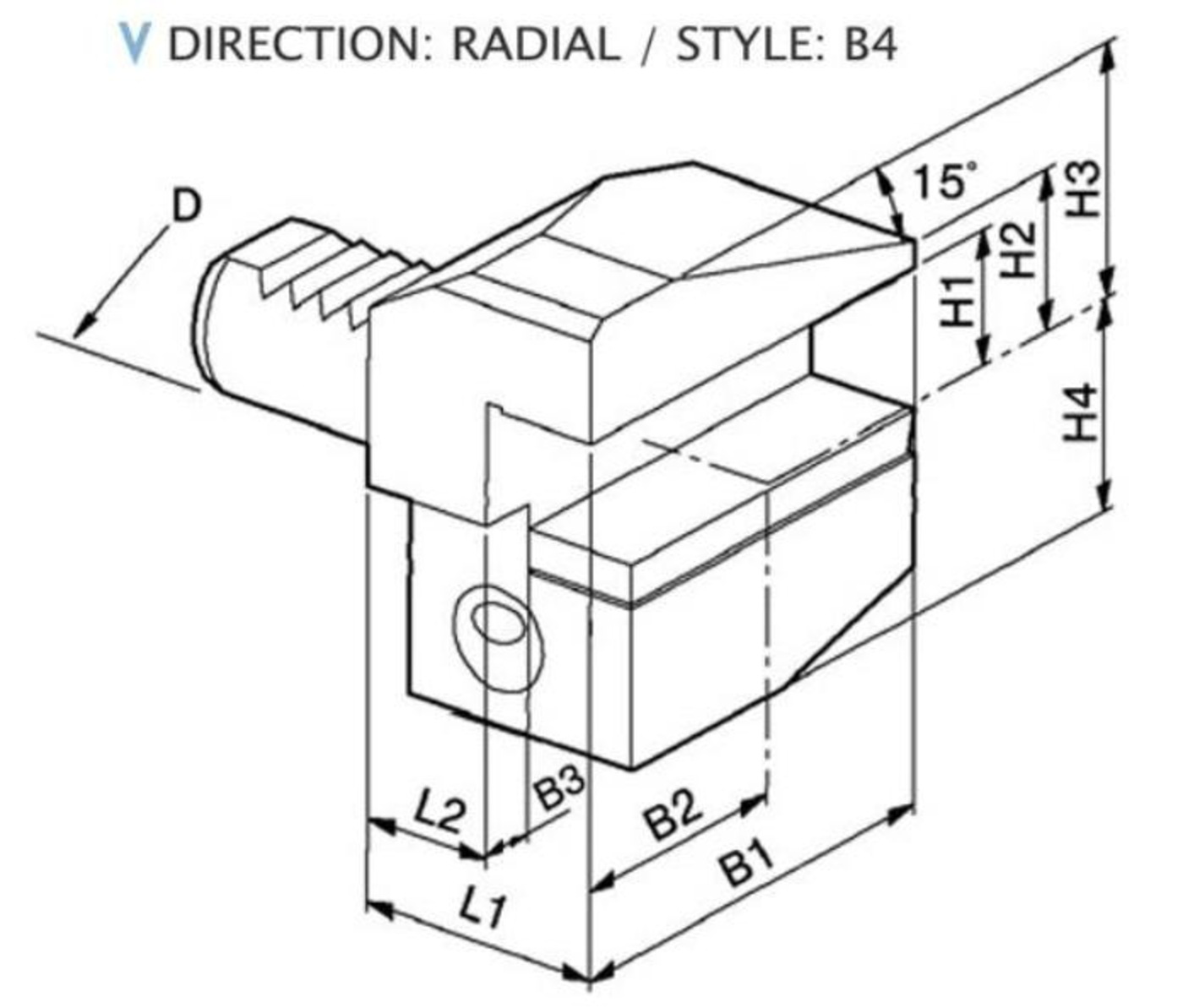

Dudukan Statis Radial DIN 69880 (Gaya: B4)
51101308, 51101309, 51101310, 51101311, 51101312
Keterangan
Spesifikasi
SATUAN: mm
| NOMOR BARANG | MODEL | D | B1 | B2 | B3 | H1 | H2 | H3 | H4 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101308 | B4-20 x 16 (5/8") | 20 | 55 | 30 | 7 | 16(5/8") | 19 | 30 | 25 | 30 | 16 |
| 51101309 | B4-30 x 20 (3/4") | 30 | 70 | 35 | 10 | 20(3/4") | 22 | 38 | 35 | 40 | 22 |
| 51101310 | B4-40 x 25 (1") | 40 | 85 | 42,5 | 12.5 | 25(1) | 30 | 48 | 42,5 | 44 | 22 |
| 51101311 | B4-50 x 32 (1-1/4") | 50 | 100 | 50 | 16 | 32(1-1/4") | 35 | 60 | 50 | 55 | 30 |
| 51101312 | B4-60 x 32 (1-1/4") | 60 | 125 | 62,5 | 16 | 32(1-1/4") | 42,5 | 62,5 | 42,5 | 60 | 30 |
