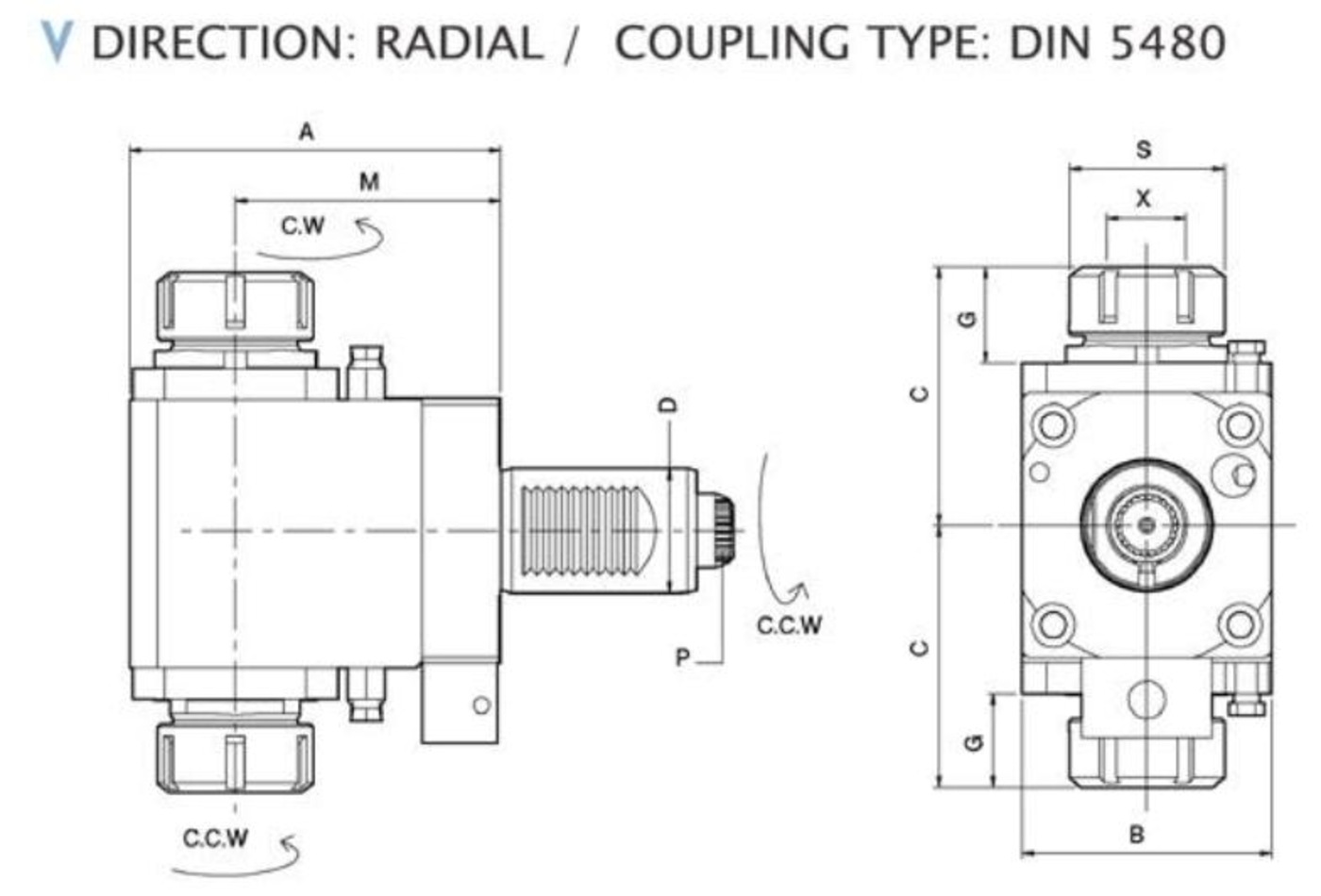

KEPALA BOR & MILLING RADIAL - KOLET GANDA (DIN 5480)
51101228, 51101229, 51101230, 51101231
Keterangan
Spesifikasi
SATUAN: mm
| NOMOR BARANG | MODEL | D (DIN 69880) |
X (KAPASITAS) |
S | MAKS. RPM |
Saya | A | B | C | G | M | P (DIN5480) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101228 | DF3054802585D | 30 | 1-16 ER25 | 42 | 4000 | 1:1 | 112 | 64 | 66 | 26,5 | 85 | Lebar 16 x 0,8 |
| 51101229 | DF30548025100D | 30 | 1-16 ER25 | 42 | 4000 | 1:1 | 127 | 64 | 66 | 26,5 | 100 | Lebar 16 x 0,8 |
| 51101230 | DF4054803285D | 40 | 2-20 ER32 | 50 | 4000 | 1:1 | 119 | 80 | 82 | 28 | 85 | W20 x 0.8 |
| 51101231 | DF40548032100D | 40 | 2-20 ER32 | 50 | 4000 | 1:1 | 134 | 80 | 82 | 28 | 100 | W20 x 0.8 |
