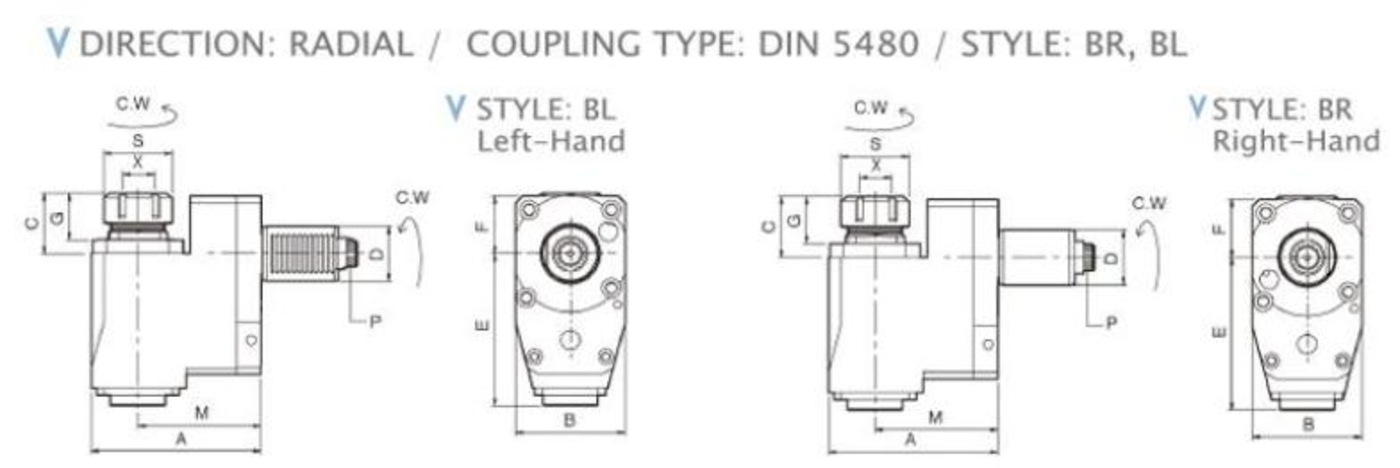

KEPALA BOR & MILLING RADIAL - SET BACK (DIN 5480 / GAYA: BR, BL)
51101212, 51101213, 51101214, 51101215, 51101216, 51101217, 51101218, 51101219
Keterangan
Spesifikasi
SATUAN: mm
| NOMOR BARANG | MODEL | D (DIN 69880) |
X (KAPASITAS) |
S | MAKS. RPM |
Saya | A | B | C | E | F | G | M | P (DIN5480) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101212 | BR3054802569 | 30 | 1-16 ER25 | 42 | 5000 | 1:1 | 95 | 60 | 42 | 75,5 | 31.5 | 28,5 | 69 | Lebar 16 x 0,8 |
| 51101213 | BL3054802569 | |||||||||||||
| 51101214 | BR4054803290 | 40 | 2-20 ER32 | 50 | 5000 | 1:1 | 124 | 80 | 44 | 110 | 42 | 34 | 90 | W20 x 0.8 |
| 51101215 | BL4054803290 |
KEPALA PENGETIKAN RADIAL – DIPASANG KE BELAKANG
SATUAN: mm
| NOMOR BARANG | MODEL | D (DIN 69880) |
X (KAPASITAS) |
S | MAKS. RPM |
Saya | A | B | C | E | F | G | M | P (DIN5480) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101216 | TBR3054801669 | 30 | 1-10 ER16 | 30 | 3000 | 1:1 | 95 | 60 | 44 | 75,5 | 31.5 | 32 | 69 | Lebar 16 x 0,8 |
| 51101217 | TBL3054801669 | |||||||||||||
| 51101218 | TBR4054802090 | 40 | 1-13ER20 | 35 | 3000 | 1:1 | 124 | 80 | 50 | 110 | 42 | 34 | 90 | W20 x 0.8 |
| 51101219 | TBL4054802090 |
