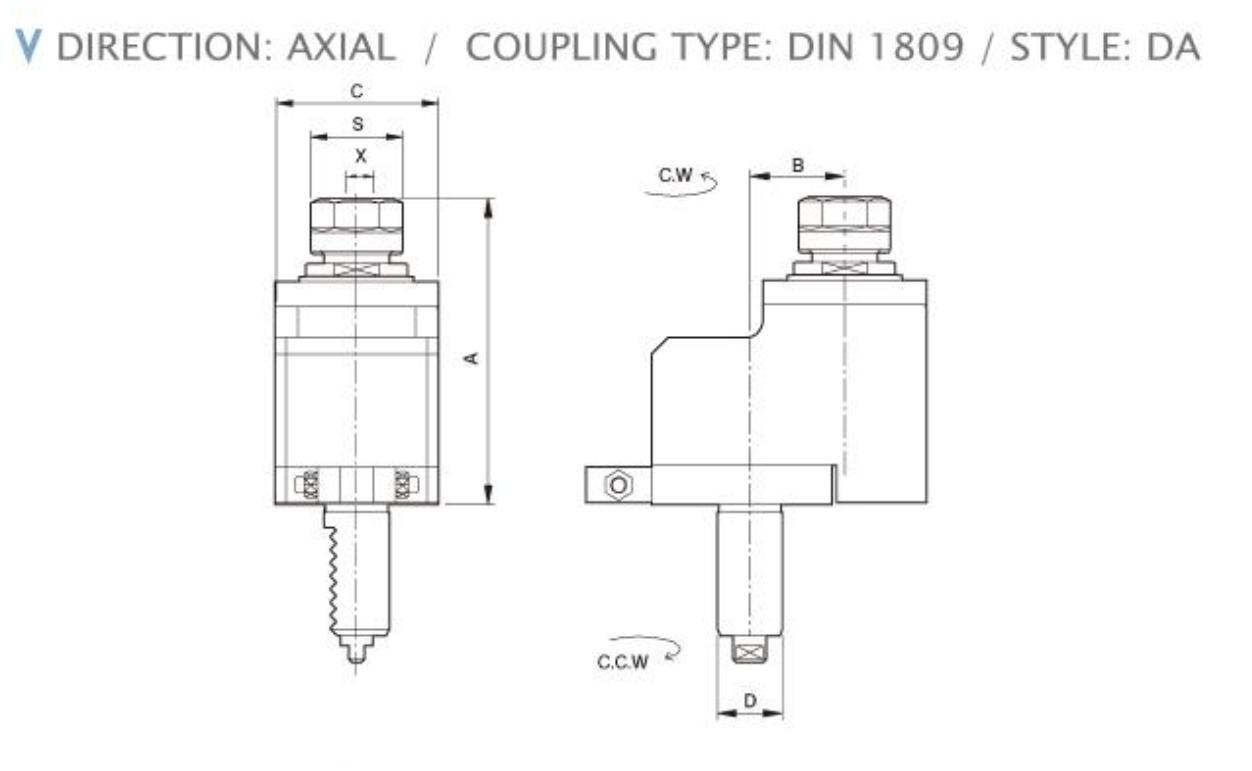

KEPALA PENGEBORAN & PENGGILINGAN AKSIAL - OFFSET (DIN 1809 / GAYA: DA)
51101166, 51101167, 51101168, 51101169, 51101170, 51101171, 51101172
Keterangan
Spesifikasi
SATUAN: mm
| NOMOR BARANG | MODEL | D (DIN 69880) |
X (KAPASITAS) |
S | MAKS. RPM |
Saya | A | B | C |
|---|---|---|---|---|---|---|---|---|---|
| 51101166 | DA2018091629 | 20 | 1-10 ER16 | 30 | 4000 | 1:1 | 93,5 | 29 | 50 |
| 51101167 | DA3018092529 | 30 | 1-16 ER25 | 42 | 4000 | 1:1 | 100 | 29 | 60 |
| 51101168 | DA3018092529/1 | *30 | 1-16 ER25 | 42 | 8000 | 1:2 | 100 | 29 | 60 |
| 51101169 | DA4018093250 | 40 | 2-20 ER32 | 50 | 4000 | 1:1 | 113 | 50 | 80 |
| 51101170 | DA5018094065 | 50 | 3-26 ER40 | 63 | 3000 | 1:1 | 124 | 65 | 86 |
| 51101171 | DA6018095080 | 60 | 10-34 ER50 | 73 | 3000 | 1:1 | 173,5 | 80 | 104 |
| 51101172 | DA60180950100 | 60 | 10-34 ER50 | 73 | 3000 | 1:1 | 173,5 | 100 | 104 |
