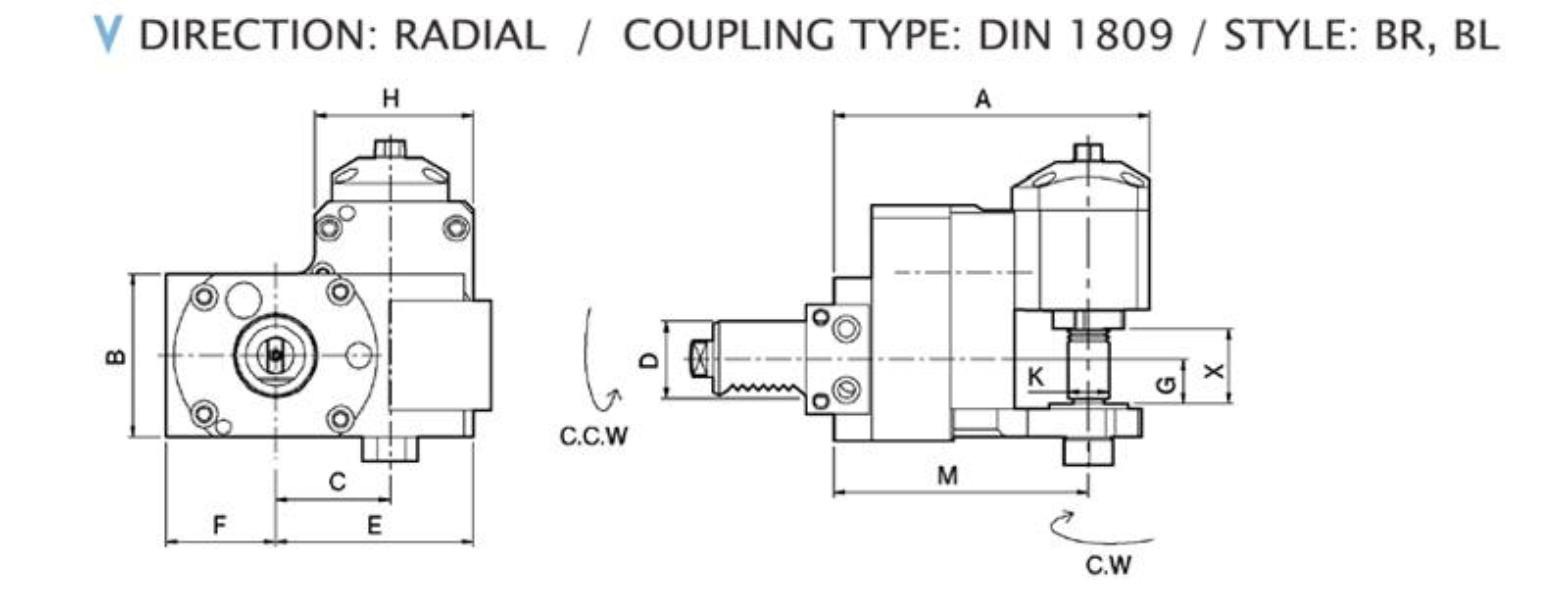

KEPALA BOR & MILLING RADIAL - UNIT PEMOTONG CAKRAM (DIN 1809 / GAYA: BR, BL)
51101141, 51101141-1, 51101142, 51101142-1
Keterangan
Spesifikasi
SATUAN: mm
| NOMOR BARANG | MODEL | D (DIN 69880) |
X (KAPASITAS) |
MAKS. RPM |
Saya | A |
|---|---|---|---|---|---|---|
| 51101141(-1) | BR(BL)30180916C/3 | 30 | 29 | 3000 | 3:1 | 124 |
| 51101142(-1) | BR(BL)40180916C/3 | 40 | 30.5 | 3000 | 3:1 | 127 |
| NOMOR BARANG | MODEL | B | C | E | F | G | H | K | M |
|---|---|---|---|---|---|---|---|---|---|
| 51101141(-1) | BR(BL)30180916C/3 | 64 | 45 | 77,5 | 34 | 18 | 62 | 16 | 100 |
| 51101142(-1) | BR(BL)40180916C/3 | 70 | 45 | 77,5 | 34 | 18 | 62 | 16 | 103 |
