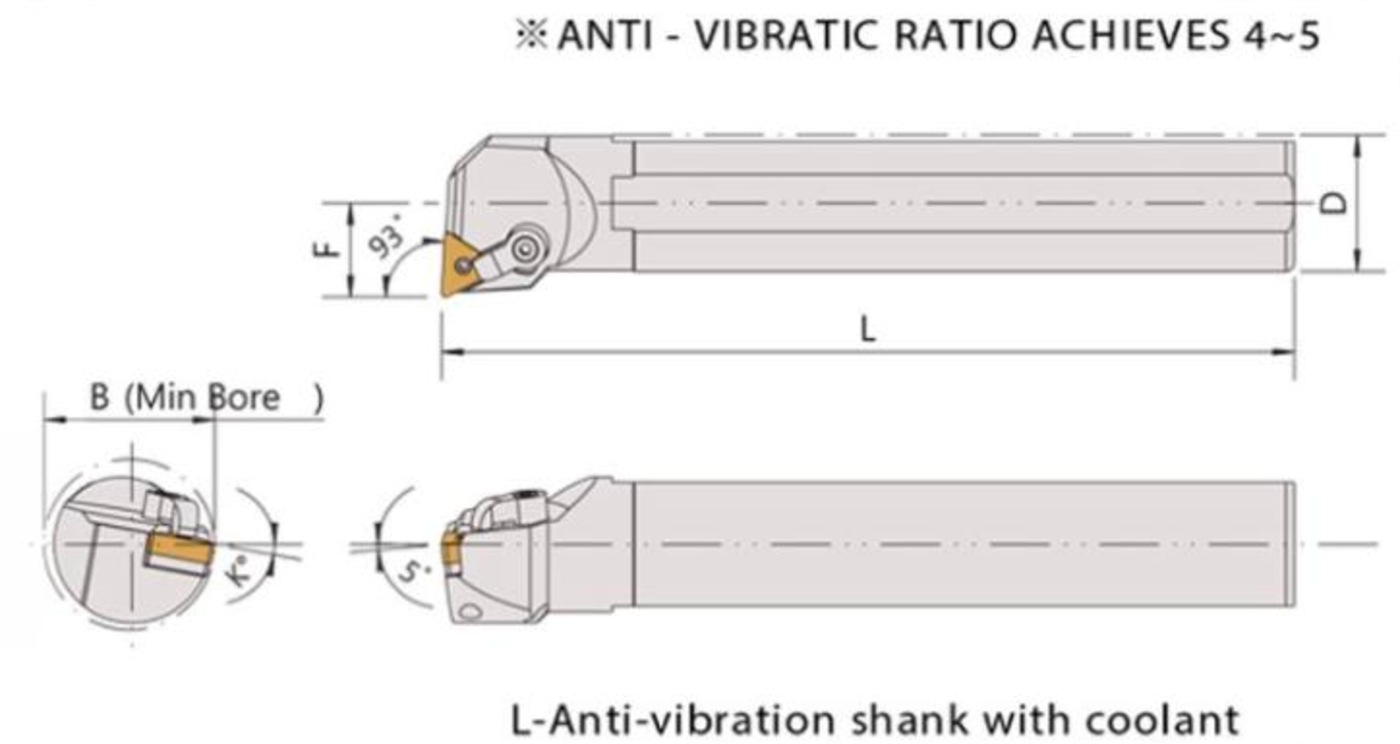

BARRES D'ALÉSAGE - TYPE ANTI-VIBRATIQUE (L-MTUN 93°)
55101487, 55101488, 55101489
Description
Spécification
UNITÉ : mm
| ARTICLE N° | MODÈLE | INSÉRER | DIMENSIONS | PARTIES | CLÉ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | F | L | B | K° | |||||||||
| 55101487 | L20R-MTUNR16A | TNMG1604 | 20 | 13 | 200 | 25 | 17° | - | LCS-510 | CP50-26 | CS7-5018 | LW020 | LW025 |
| 55101488 | L25S-MTUNR16A | TNMG1604 | 25 | 17 | 250 | 32 | 12° | - | LCS-510 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55101489 | L32T-MTUNR16A | TNMG1604 | 32 | 22 | 300 | 40 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
