BARRAS DE MANDRINADO PARA ROSCAR (CNR)

BARRAS DE MANDRINADO PARA ROSCAR (CNR)

BARRAS DE MANDRINADO PARA ROSCAR (CNR)

55100309, 55100310, 55100311, 55100312, 55100312-1, 55100313, 55100314, 55100315, 55100315-1, 55100315-2, 55100315-3, 55100315-4

Descripción

Especificación

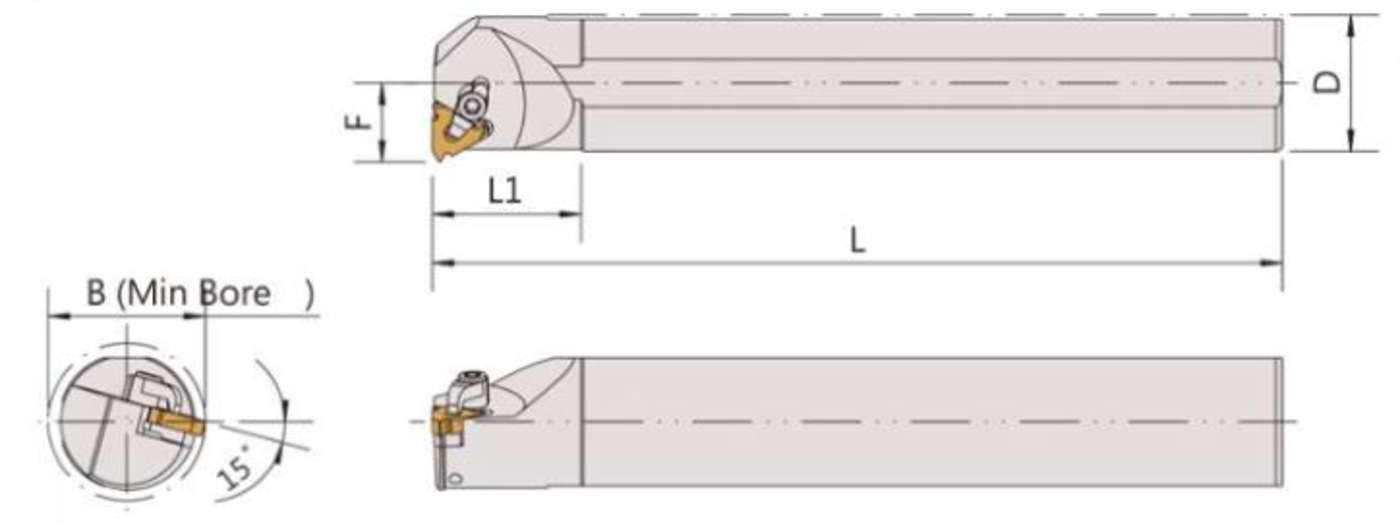

UNIDAD: mm

NÚMERO DE ARTÍCULO MODELO INSERTAR DIMENSIONES REGIONES LLAVE INGLESA
Derecha / Izquierda   A B L mi F Calza R Calza L
55100309 R/L CNR/L2420S-16 16 IR/L 20 12 180 24 35 AI16 AE16 CSF3008 SP-CP16S FT-15 LW020
55100310 R/L CNR/L3025S-16 16 IR/L 25 15 200 30 35 AI16 AE16 CSF3008 SP-CP16S FT-15 LW020
55100311 R/L CNR/L3732S-16 16 IR/L 32 18.5 250 37 35 AI16 AE16 CSF3008 SP-CP16S FT-15 LW020
55100312 R/L CNR/L4440S-16 16 IR/L 40 22.5 300 44 35 AI16 AE16 CSF3008 SP-CP16S FT-15 LW020
55100312-1 R/L CNR/L5450S-16 16 IR/L 50 28.5 350 54 35 AI16 AE16 CSF3008 SP-CP16S FT-15 LW020
55100313 R/L CNR/L3025S-22 22 IR/L 25 16 200 30 35 AIE22 AIE22 CSF3008 SP-CP22S FT-15 LW020
55100314 R/L CNR/L3732S-22 22 IR/L 32 20.5 250 37 35 AIE22 AIE22 CSF3008 SP-CP22S FT-15 LW020
55100315 R/L CNR/L4440S-22 22 IR/L 40 24.5 300 45 35 AIE22 AIE22 CSF3008 SP-CP22S FT-15 LW020
55100315-1 R/L CNR/L5450S-22 22 IR/L 50 30.5 350 56 35 AIE22 AIE22 CSF3008 SP-CP22S FT-15 LW020
55100315-2 R/L CNR/L3732S-27 27 IR/L 32 20 250 37 35 AIE27 AIE27 CSF4010 SP-CP27S FT-15 LW025
55100315-3 R/L CNR/L4440S-27 27 IR/L 40 25 300 46 35 AIE27 AIE27 CSF4010 SP-CP27S FT-15 LW025
55100 315-4 R/L CNR/L5450S-27 27 IR/L 50 31.5 350 58 35 AIE27 AIE27 CSF4010 SP-CP27S FT-15 LW025
