Surface grinders finish flat faces to close tolerance and fine surface quality after milling or heat treatment. A magnetic chuck holds the part while a precision wheel head traverses the surface, giving flatness, parallelism and finish that machining alone cannot reach, essential for dies, moulds, gauges and jigs.

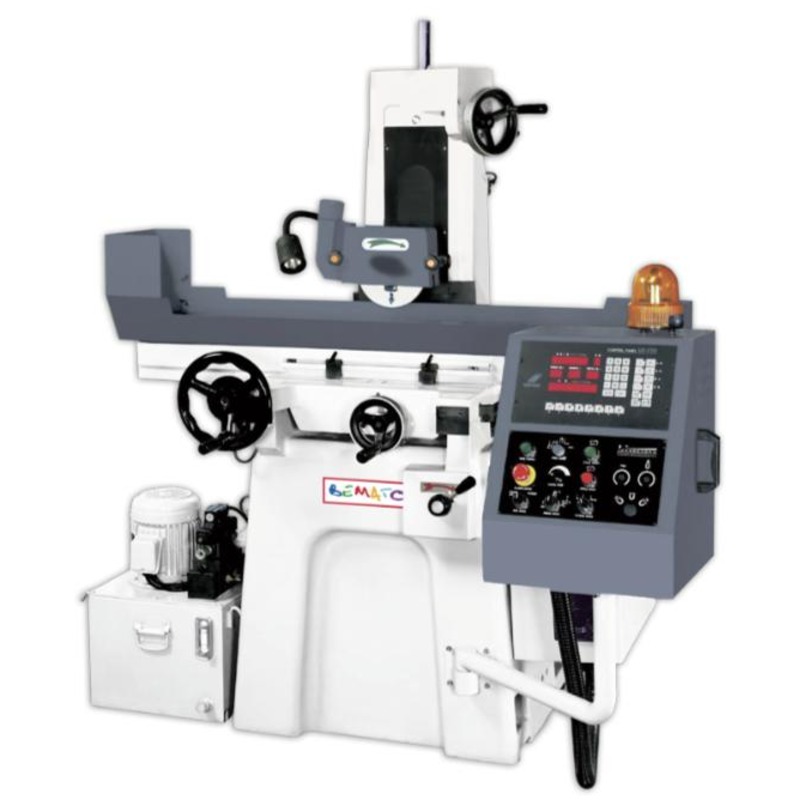

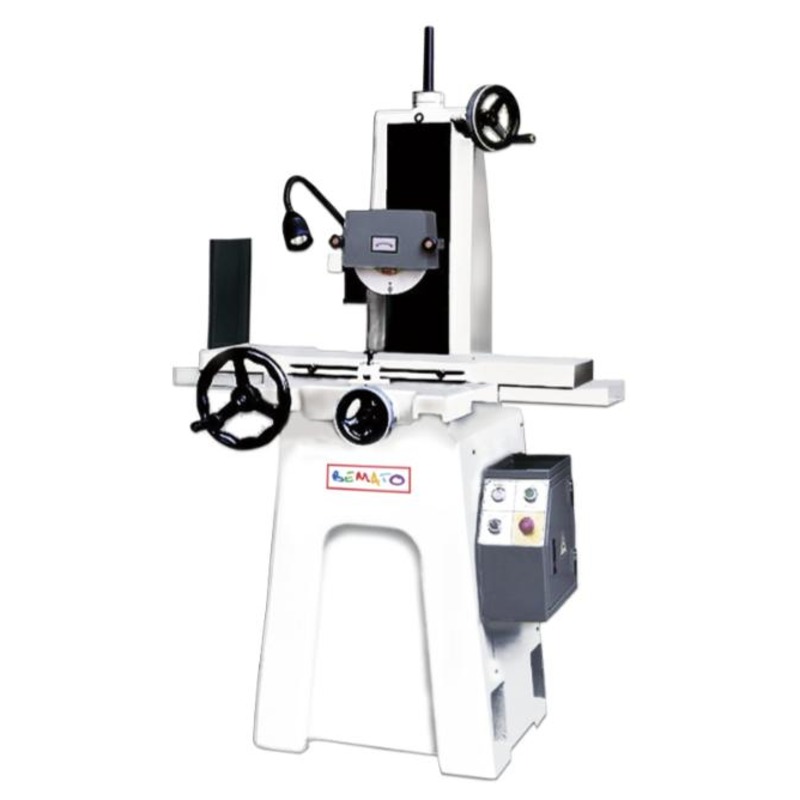

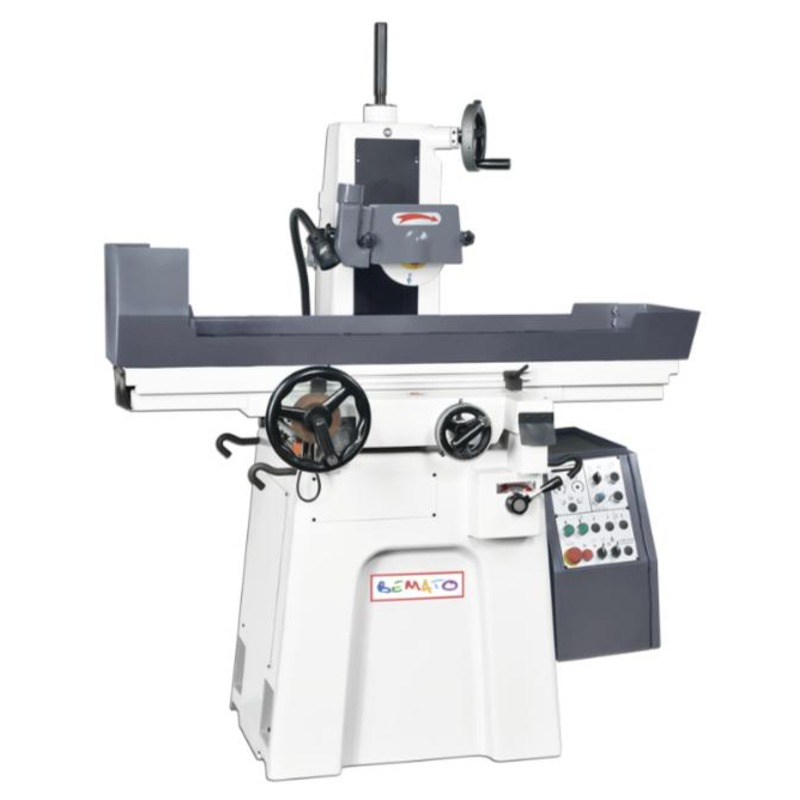

SURFACE GRINDER

BMT 612B

Table Size｜152 x 305 mm

SURFACE GRINDER

BMT 614 / BMT 618T / BMT 618B / BMT 818B

Table Size｜150 x 352 mm / 150 x 460 mm / 200 x 450 mm

SURFACE GRINDER

BMT 618A / BMT 820A

Table Size｜150 x 457 mm / 200 x 500 mm

SURFACE GRINDER

BMT 618AD / BMT 820AD

Table Size｜150 x 457 mm / 200 x 500 mm

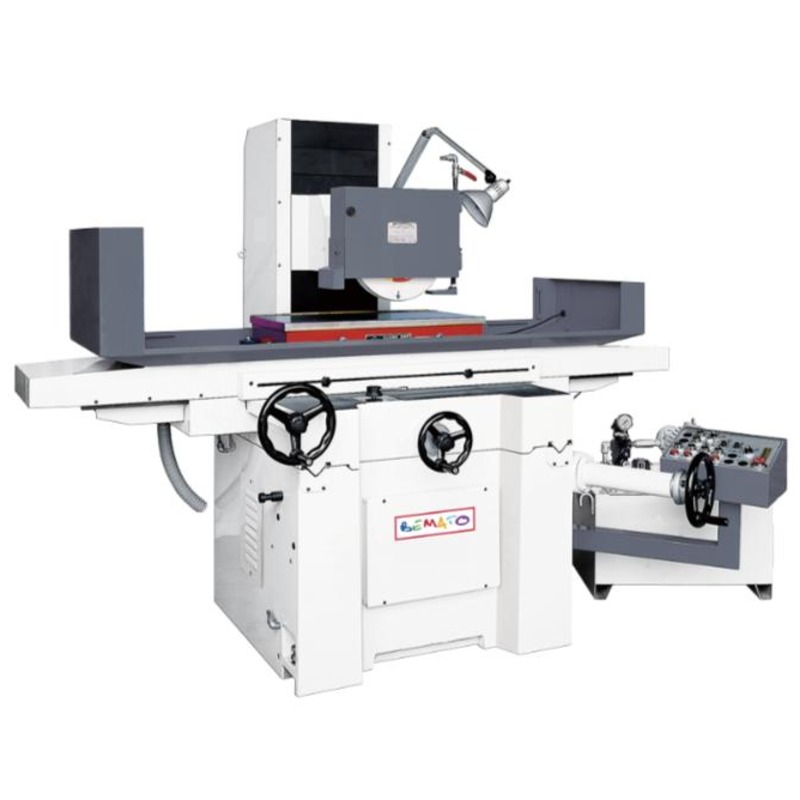

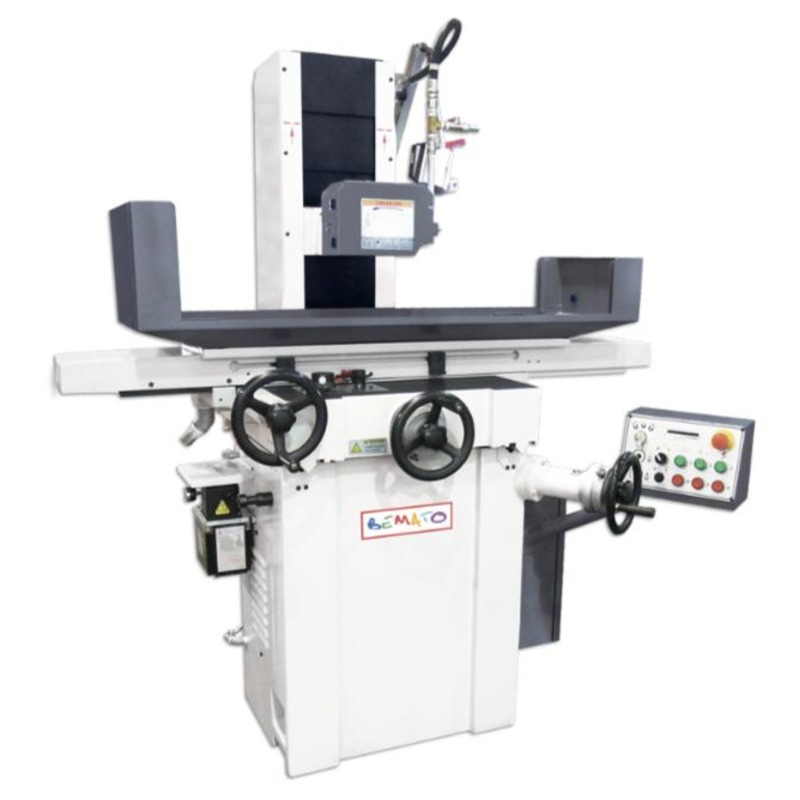

SURFACE GRINDER - SADDLE TYPE

BMT 1545H / BMT 2045H / BMT 2550H

Table Size｜150 x 450 mm / 200 x 450 mm / 250 x 500 mm

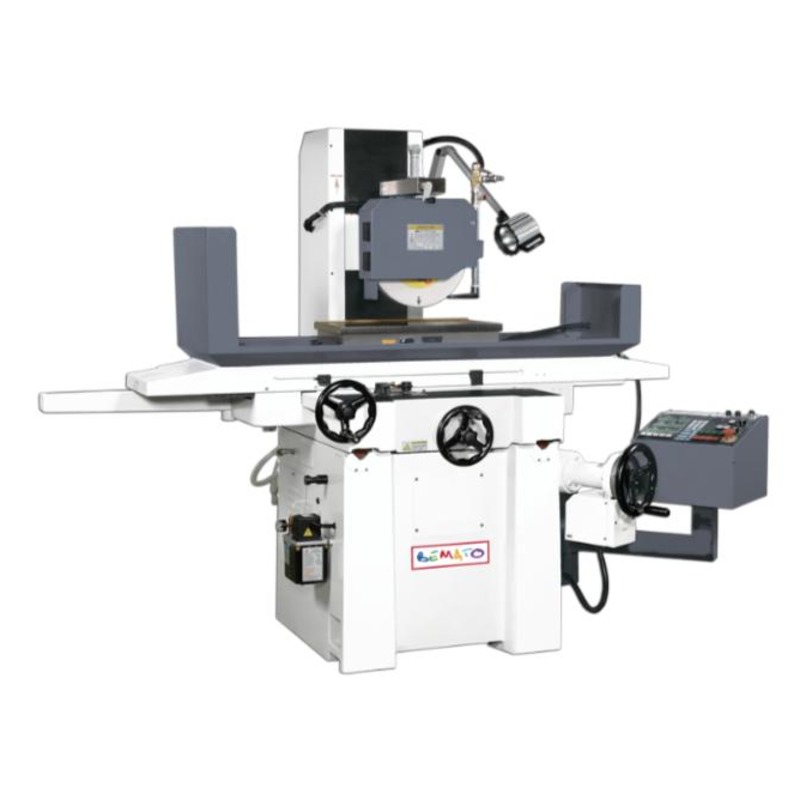

SURFACE GRINDER - SADDLE TYPE

BMT 1545AH / BMT 2045AH / BMT 2550AH / BMT CS3060AH / BMT DS3060AH / BMT CL3060AH / BMT DL3060AH

Table Size｜150 x 450 mm / 200 x 450 mm / 250 x 500 mm / 300 x 600 mm / 400 x 800 mm

SURFACE GRINDER - SADDLE TYPE

BMT 4080AH

Table Size｜150 x 450 mm / 200 x 450 mm / 250 x 500 mm / 300 x 600 mm / 400 x 800 mm

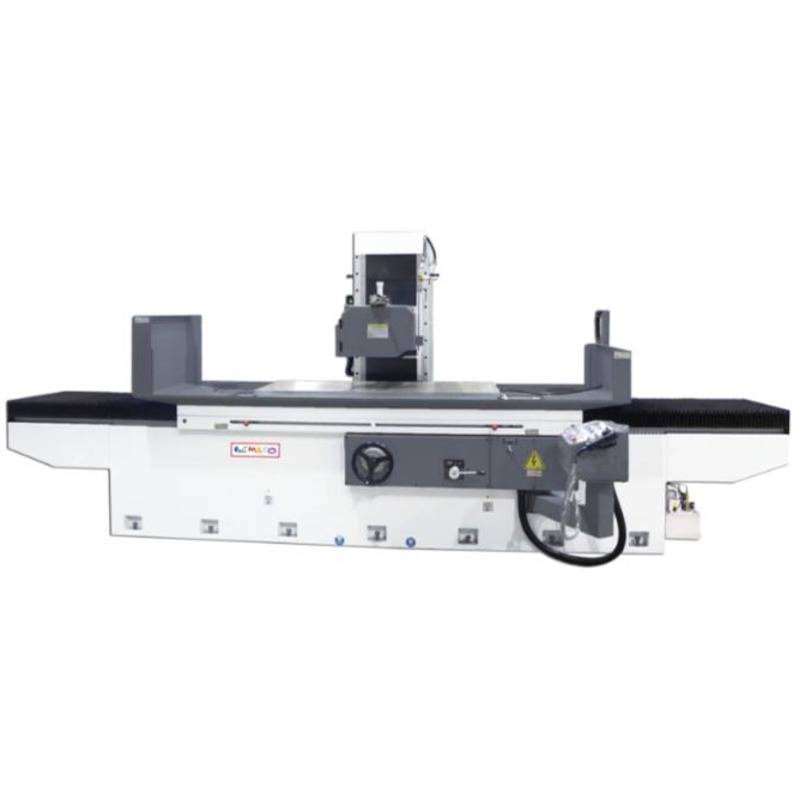

SURFACE GRINDER - COLUMN TYPE

BMT 50100AHR / BMT 50150AHR / BMT 50200AHR / BMT 60100AHR / BMT 60150AHR / BMT 60200AHR / BMT 70100AHR / BMT 70150AHR / BMT 70200AHR

Table Size｜500 x 1000 mm / 500 x 1500 mm / 500 x 2000 mm / 600 x 1000 mm / 600 x 1500 mm / 600 x 2000 mm / 700 x 1000 mm / 700 x 1500 mm / 700 x 2000 mm

SURFACE GRINDER - CANTILEVER TYPE

BMT 80150AHD / BMT 80200AHD / BMT 80300AHD / BMT 80400AHD / BMT 100150AHD / BMT 100200AHD / BMT 100300AHD / BMT 100400AHD

Table Size｜800 x 1500 mm / 800 x 2000 mm / 800 x 3000 mm / 800 x 4000 mm / 1000 x 1500 mm / 1000 x 2000 mm / 1000 x 3000 mm / 1000 x 4000 mm

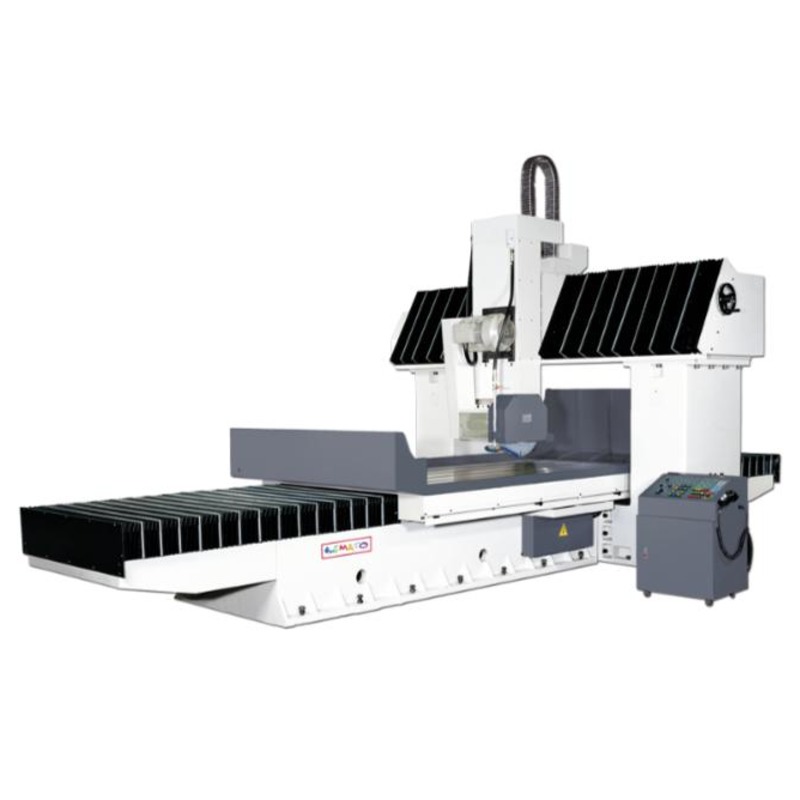

SURFACE GRINDER - DOUBLE COLUMN TYPE

BMT 120200AHD / BMT 120300AHD / BMT 120400AHD / BMT 120500AHD / BMT 120600AHD

Table Size｜1200 x 2000 mm / 1200 x 3000 mm / 1200 x 4000 mm / 1200 x 5000 mm / 1200 x 6000 mm

SURFACE GRINDER - DOUBLE COLUMN TYPE

BMT 160200AHD / BMT 160300AHD / BMT 160400AHD / BMT 160500AHD / BMT 160600AHD

Table Size｜1600 x 2000 mm / 1600 x 3000 mm / 1600 x 4000 mm / 1600 x 5000 mm / 1600 x 6000 mm

PLC SURFACE GRINDER - SADDLE TYPE

BMT 2550ADP / BMT 3060ADP / BMT 4080ADP

Table Size｜250 x 500 mm / 300 x 600 mm / 400 x 800 mm

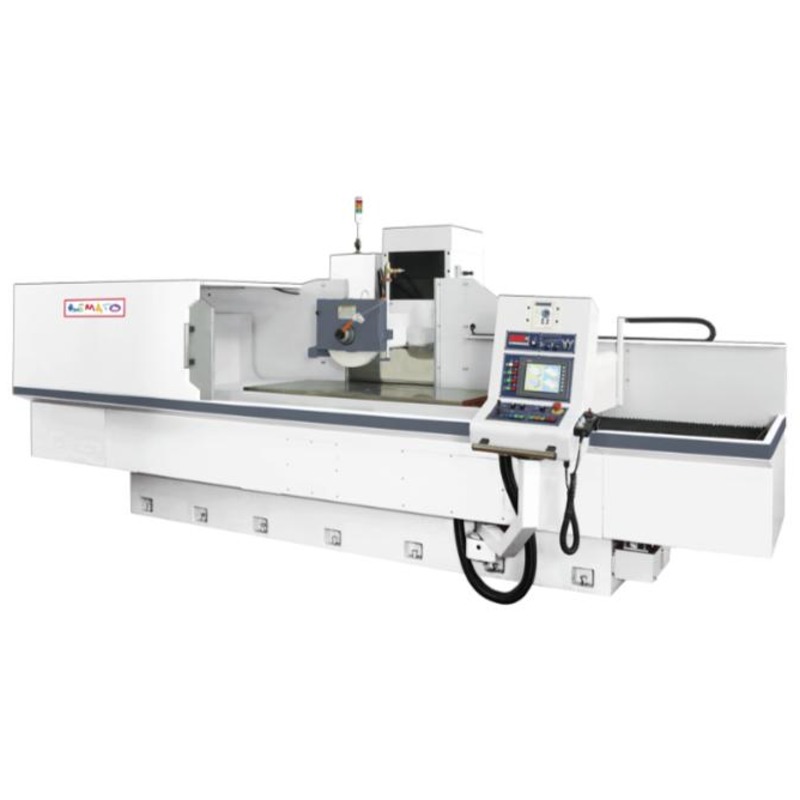

PLC SURFACE GRINDER - COLUMN TYPE

BMT 50100ADP / BMT 50150ADP / BMT 50200ADP / BMT 60100ADP / BMT 60150ADP / BMT 60200ADP / BMT 70100ADP / BMT 70150ADP / BMT 70200ADP

Table Size｜500 x 1000 mm 600 x 1000 mm 700 x 1000 mm / 500 x 1500 mm 600 x 1500 mm 700 x 1500 mm / 500 x 2000 mm 600 x 2000 mm 700 x 2000 mm

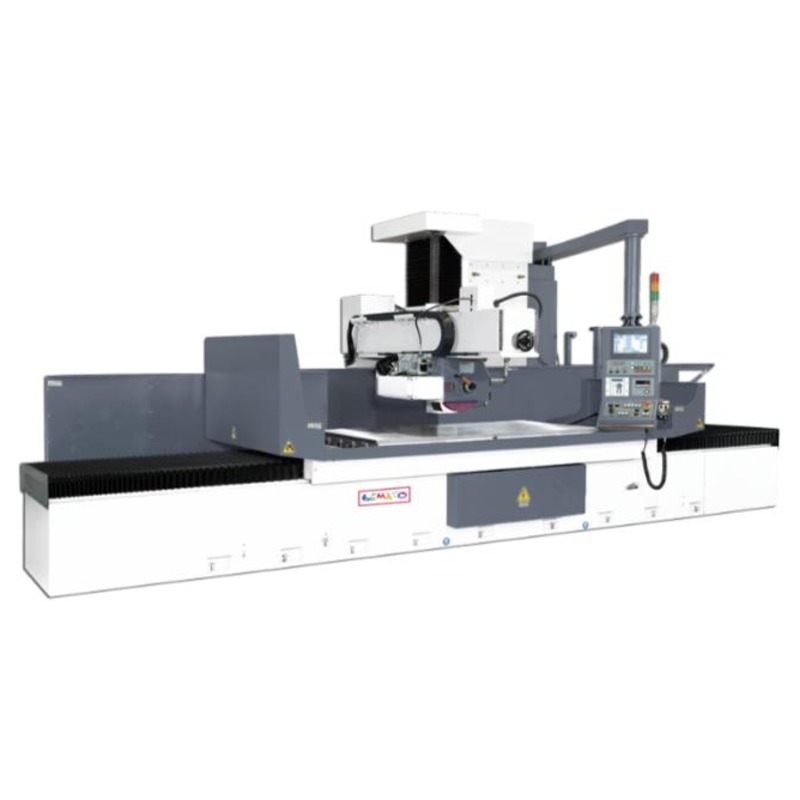

PLC SURFACE GRINDER - CANTILEVER TYPE

BMT 80150ADP / BMT 80200ADP / BMT 80300ADP / BMT 80400ADP / BMT 100150ADP / BMT 100200ADP / BMT 100300ADP / BMT 100400ADP

Table Size｜800 x 1500 mm 1000 x 1500 mm / 800 x 2000 mm 1000 x 2000 mm / 800 x 3000 mm 1000 x 3000 mm / 800 x 4000 mm 1000 x 4000 mm

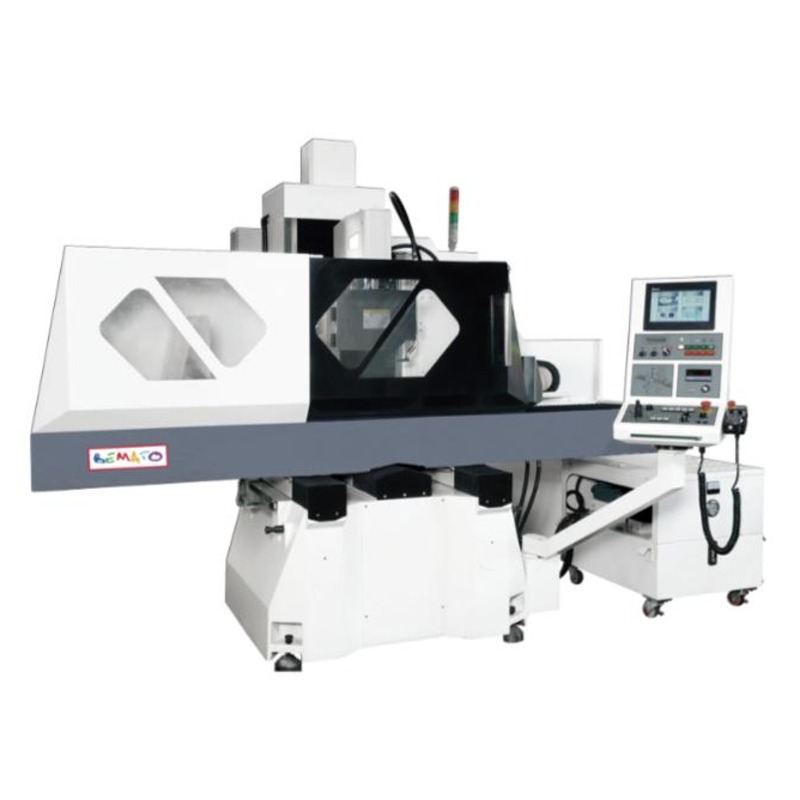

PLC SURFACE GRINDER

BMT 2550X / BMT 3060X

Table Size｜250 x 500 mm / 300 x 600 mm

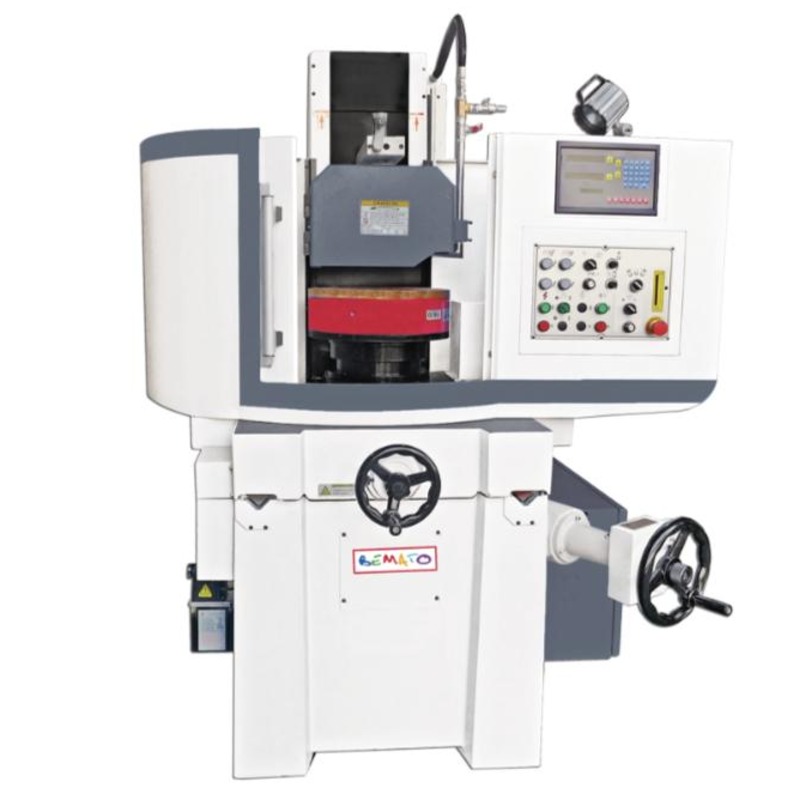

ROTARY SURFACE GRINDER

BMT 200R / BMT 250R / BMT 300R / BMT 400R

Table Size｜200 mm / 250 mm / 300 mm / 400 mm
