HIGH SPEED CUTTING & HIGH HARD CUTTING

HIGH SPEED CUTTING & HIGH HARD CUTTING

HIGH SPEED CUTTING & HIGH HARD CUTTING

55102485, 55102486, 55102487, 55102488, 55102489, 55102490, 55102491, 55102492, 55102493, 55102494, 55102495, 55102496, 55102497, 55102498, 55102499, 55102500, 55102501

Description

Specification

STANDARD 4 FLUTES SQUARE END MILLS

UNIT: mm

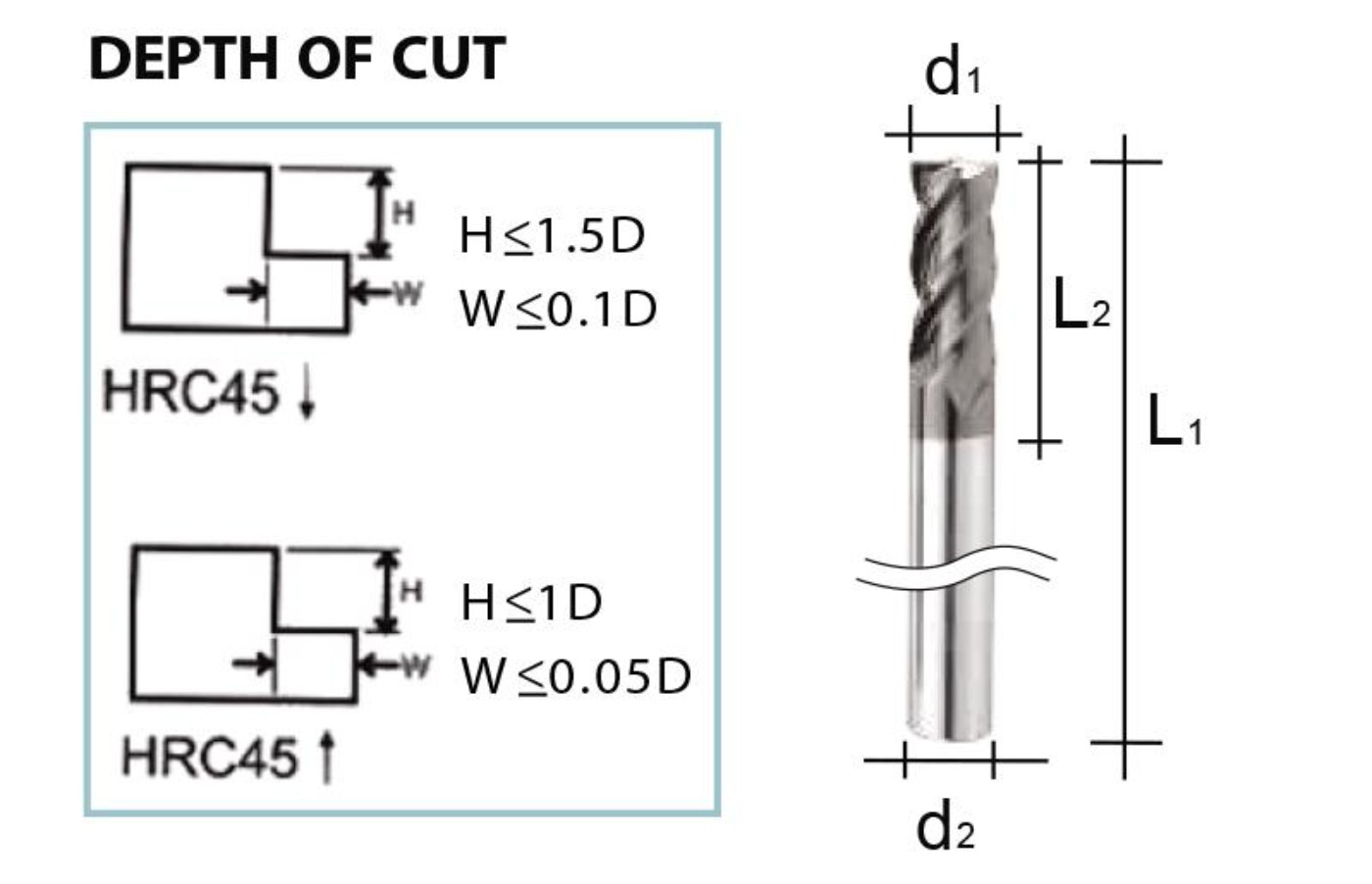

ITEM NO. TYPE NO. DIAMETER (D1) FLUTE LENGTH (L2) O.A.L (L1) SHANK DIA (d2)
55102485 VE 0104 1.0 3 50 4
55102486 VE 0154 1.5 4 50 4
55102487 VE 0204 2.0 6 50 4
55102488 VE 0254 2.5 7 50 4
55102489 VE 0304 3.0 8 50 4
55102490 VE 0304A 3.0 8 50 3
55102491 VE 0404 4.0 11 50 4
55102492 VE 0504 5.0 13 50 6
55102493 VE 0604 6.0 15 50 6
55102494 VE 0804 8.0 20 60 8
55102495 VE 1004 10.0 30 75 10
55102496 VE 1204 12.0 30 75 12
55102497 VE 1404 14.0 35 100 16
55102498 VE 1604 16.0 40 100 16
55102499 VE 1804 18.0 40 100 20
55102500 VE 2004 20.0 45 100 20
55102501 VE 2504 25.0 45 100 25

RECOMMENED CUTTING CONDITION FOR SUQARE END MILLS

MATERIAL CARBON STEELS. ALLOY STEELS S45C,FC,FCD,SCM,S50C,SKS... ALLOY STEELS.TOOL STEELS.SCR, SNCM,SKD11,SKD61,NAK80... HARDENED STEELS SKD11
HARDNESS ~HRC30 ~HRC50 ~HRC60
DIAMETER SPEED (mm-1) FEED mm/min SPEED (mm-1) FEED mm/min SPEED (mm-1) FEED mm/min
1 22000 400 18000 200 9000 140
1.5 12000 500 11000 280 5200 150
2 10000 550 10000 280 4600 170
3 9000 600 5500 310 3500 220
4 6000 600 5000 400 2200 220
5 4800 750 4000 400 1700 240
6 4500 800 3800 420 1600 300
8 3500 820 2800 420 1000 300
10 3000 820 1800 420 900 300
12 2000 820 1600 350 800 300
16 1500 650 1000 300 500 150
20 1200 600 900 300 400 150
