HIGH SPEED CUTTING & HIGH HARD CUTTING
55102422, 55102423, 55102424, 55102425, 55102426, 55102427, 55102428, 55102429, 55102430, 55102431, 55102432, 55102433
Description
Specification

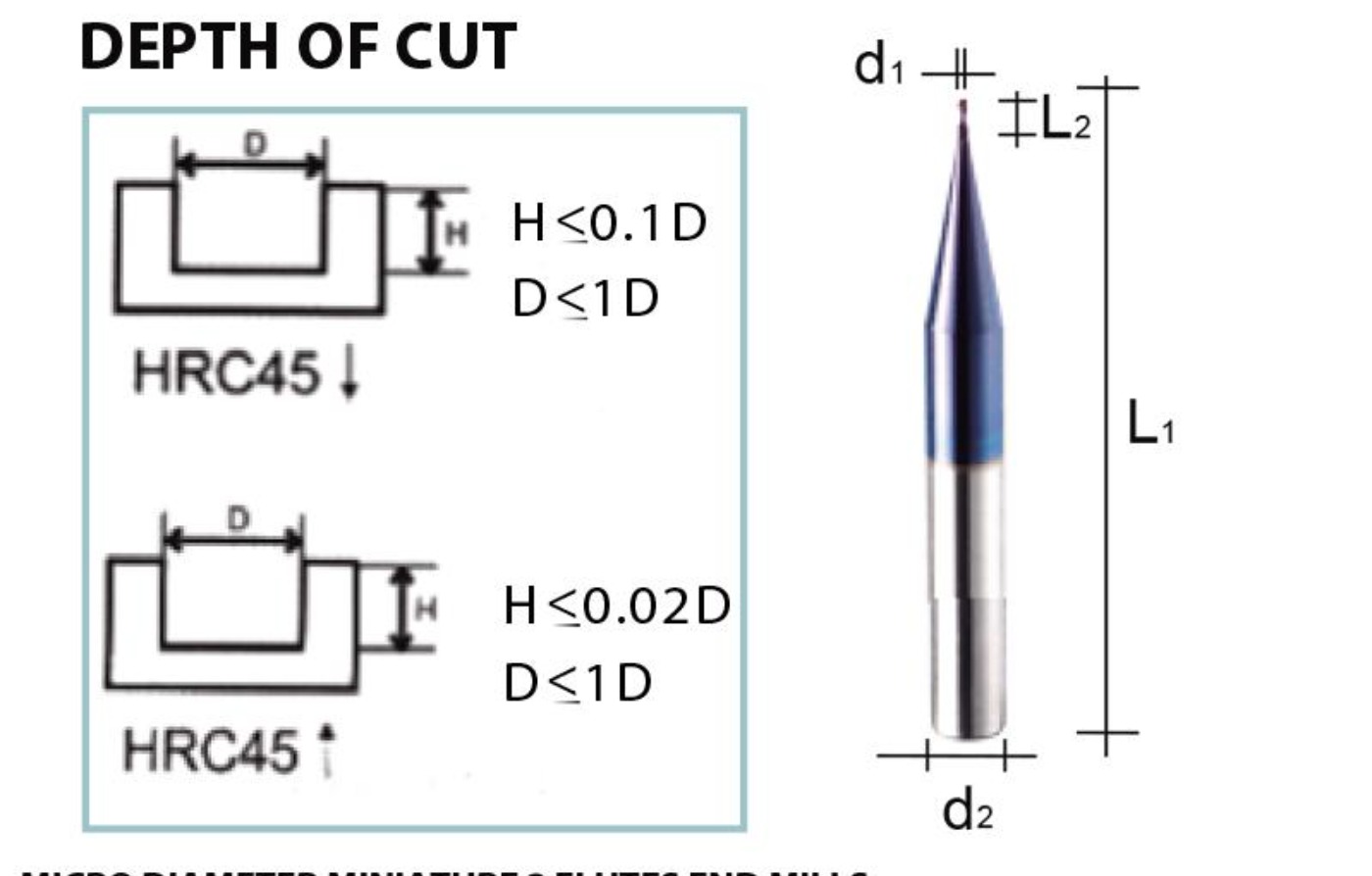

MICRO DIAMETER MINIATURE 2 FLUTES END MILLS
UNIT: mm
| ITEM NO. | TYPE NO. | DIAMETER (D1) | FLUTE LENGTH (L2) | O.A.L (L1) | SHANK DIA (d2) |
|---|---|---|---|---|---|
| 55102422 | VSEN 0022 | 0.2 | 0.4 | 50 | 4 |
| 55102423 | VSEN 0032 | 0.3 | 0.6 | 50 | 4 |
| 55102424 | VSEN 0042 | 0.4 | 0.8 | 50 | 4 |
| 55102425 | VSEN 0052 | 0.5 | 1.0 | 50 | 4 |
| 55102426 | VSEN 0062 | 0.6 | 1.2 | 50 | 4 |
| 55102427 | VSEN 0072 | 0.7 | 1.4 | 50 | 4 |
| 55102428 | VSEN 0082 | 0.8 | 1.6 | 50 | 4 |
| 55102429 | VSEN 0092 | 0.9 | 1.8 | 50 | 4 |
| 55102430 | VSEN 0122 | 1.2 | 3 | 50 | 4 |
| 55102431 | VSEN 0142 | 1.4 | 3 | 50 | 4 |
| 55102432 | VSEN 0162 | 1.6 | 4 | 50 | 4 |
| 55102433 | VSEN 0182 | 1.8 | 5 | 50 | 4 |
RECOMMENED CUTTING CONDITION FOR MICRO DIAMETER SQUARE END MILLS
| MATERIAL | CARBON STEELS. ALLOY STEELS S45C,FC,FCD,SCM,S50C,SKS... | ALLOY STEELS.TOOL STEELS.SCR, SNCM,SKD11,SKD61,NAK80... | HARDENED STEELS SKD11 | |||
|---|---|---|---|---|---|---|
| HARDNESS | ~HRC30 | ~HRC50 | ~HRC60 | |||
| DIAMETER | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min |
| 0.2 | 40000 | 100-300 | 30000 | 80-250 | 15000 | 50-150 |
| 0.3 | 40000 | 100-350 | 30000 | 80-300 | 15000 | 50-200 |
| 0.4 | 40000 | 100-400 | 25000 | 80-350 | 10000 | 50-250 |
| 0.5 | 40000 | 100-500 | 25000 | 80-400 | 10000 | 50-250 |
| 0.6 | 38000 | 100-600 | 25000 | 80-500 | 8000 | 50-250 |
| 0.7 | 36000 | 100-700 | 20000 | 80-600 | 8000 | 50-250 |
| 0.8 | 34000 | 100-800 | 20000 | 80-700 | 8000 | 50-250 |
| 0.9 | 32000 | 100-1000 | 20000 | 80-800 | 8000 | 50-250 |
