BORING BARS (S-MVQN 107.5°)
55100207, 55100208, 55100209, 55100210
Description
Specification
UNIT: mm

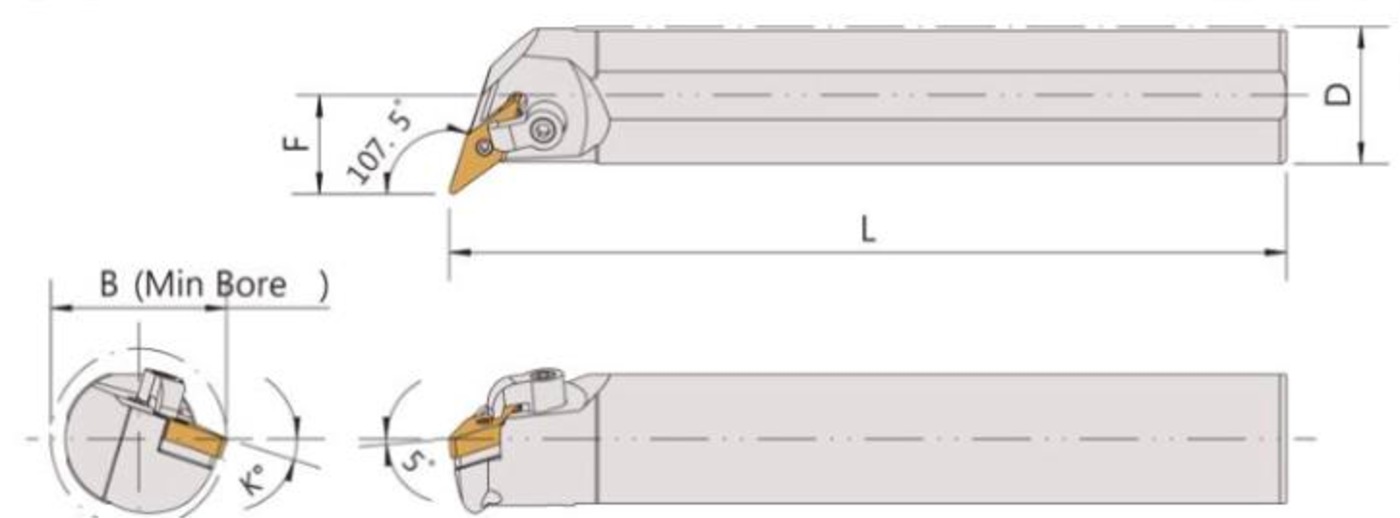

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | D | F | L | B | K° | ||||||||
| 55100207 R/L | S25R-MVQNR/L16 | VNMG1604 | 25 | 20 | 200 | 33 | 12° | SMV-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55100208 R/L | S32S-MVQNR/L16 | VNMG1604 | 32 | 23 | 250 | 40 | 17° | SMV-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55100209 R/L | S40T-MVQNR/L16 | VNMG1604 | 40 | 27 | 300 | 50 | 15° | SMV-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55100210 R/L | S50U-MVQNR/L16 | VNMG1604 | 50 | 33 | 350 | 63 | 12° | SMV-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
