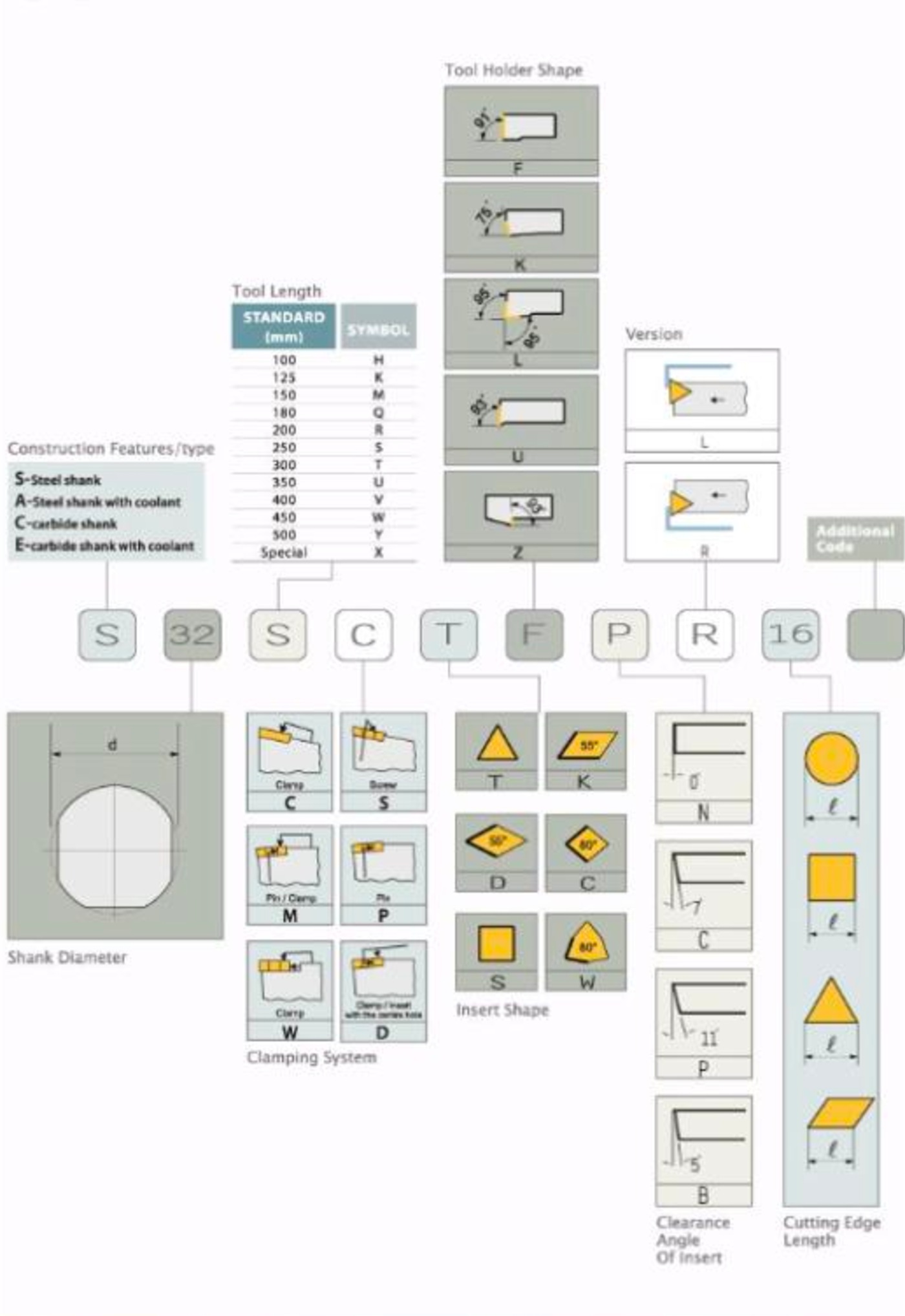

IDENTIFICATION SYSTEM OF BORING BARS - TURNING TOOLS
Description
Specification
Construction Features / type
| SYMBOL | CONSTRUCTION FEATURES / TYPE |
|---|---|
| S | Steel shank |
| A | Steel shank with coolant |
| C | carbide shank |
| E | carbide shank with coolant |
Tool Length
| STANDARD (mm) | SYMBOL |
|---|---|
| 100 | H |
| 125 | K |
| 150 | M |
| 180 | Q |
| 200 | R |
| 250 | S |
| 300 | T |
| 350 | U |
| 400 | V |
| 450 | W |
| 500 | Y |
| Special | X |
