EXTERNAL TURNING TOOL (SVJC / SVJC-N 93°)
55101079, 55101080, 55101081, 55101082, 55101083, 55101084, 55101085, 55101086, 55101087, 55101088, 55101089
Description
Specification

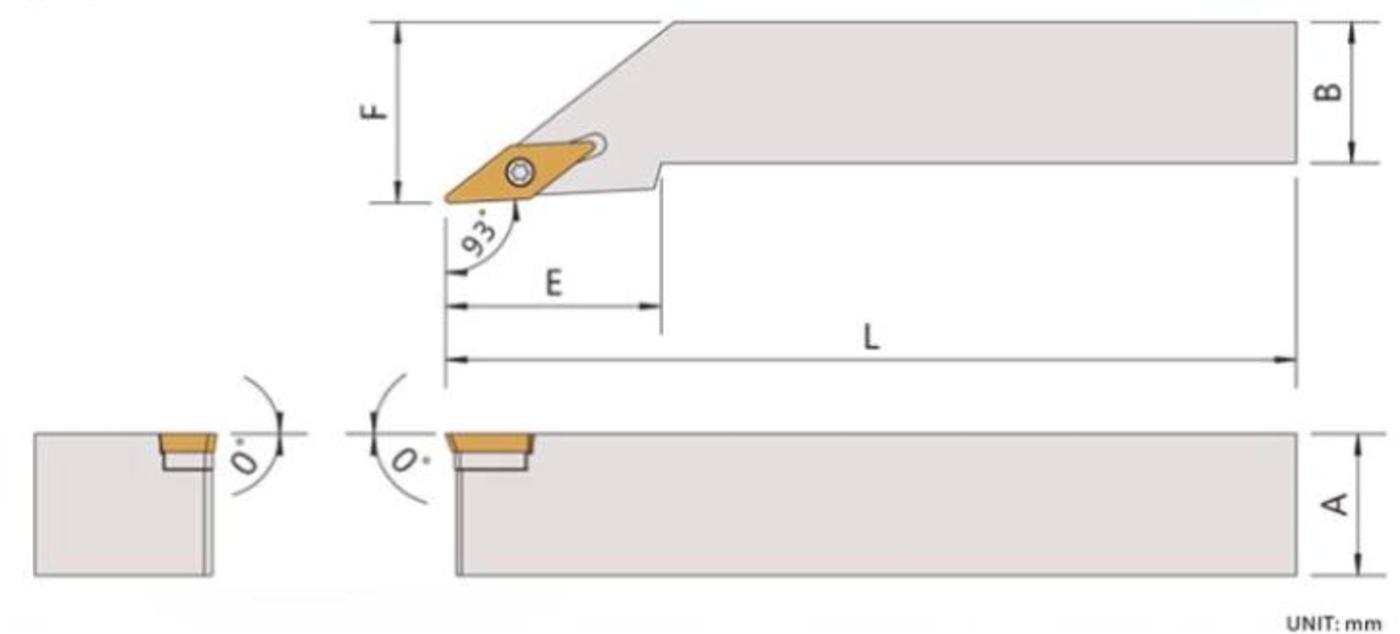

UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | |||||||
| 55101079 R/L | SVJCR/L-2020K11 | VCMT1103 | 20 | 20 | 125 | 22 | 25 | - | - | CS25060 | FT-7 | - |
| 55101080 R/L | SVJCR/L-2525M11 | VCMT1103 | 25 | 25 | 150 | 25 | 32 | - | - | CS25060 | FT-7 | - |
| 55101081 R/L | SVJCR/L-2020K16 | VCMT1604 | 20 | 20 | 125 | 33 | 25 | SMV-321 | SN535 | CS35115 | FT-15 | LW035 |
| 55101082 R/L | SVJCR/L-2525M16 | VCMT1604 | 25 | 25 | 150 | 38 | 32 | SMV-321 | SN535 | CS35115 | FT-15 | LW035 |
| 55101083 R/L | SVJCR/L-1010H11N | VCMT1103 | 10 | 10 | 100 | - | 10.5 | - | - | CS25060 | FT-7 | - |
| 55101084 R/L | SVJCR/L-1212H11N | VCMT1103 | 12 | 12 | 100 | - | 12.5 | - | - | CS25060 | FT-7 | - |
| 55101085 R/L | SVJCR/L-1616H11N | VCMT1103 | 16 | 16 | 100 | - | 16.5 | - | - | CS25060 | FT-7 | - |
| 55101086 R/L | SVJCR/L-1010K11N | VCMT1103 | 10 | 10 | 125 | - | 10.5 | - | - | CS25060 | FT-7 | - |
| 55101087 R/L | SVJCR/L-1212K11N | VCMT1103 | 12 | 12 | 125 | - | 12.5 | - | - | CS25060 | FT-7 | - |
| 55101088 R/L | SVJCR/L-1616K11N | VCMT1103 | 16 | 16 | 125 | - | 16.5 | - | - | CS25060 | FT-7 | - |
| 55101089 R/L | SVJCR/L-1616H16N | VCMT1604 | 16 | 16 | 100 | - | 16.5 | SMV-321 | SN535 | CS35115 | FT-15 | LW035 |
