EXTERNAL TURNING TOOL (SVVBN 72.5°)
55101075, 55101076, 55101077, 55101078
Description
Specification

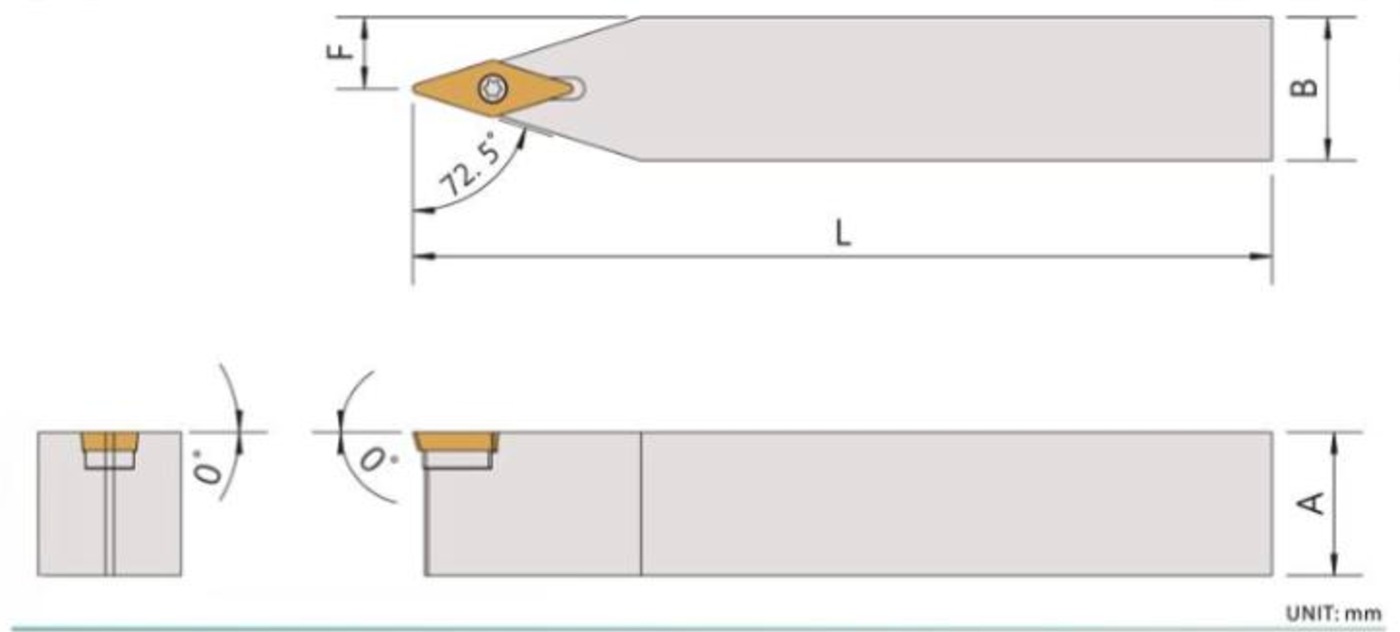

UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | L | F | ||||||||
| 55101075 | SVVBN-2020K11 | VBMT1103 | 20 | 20 | 125 | 10 | - | - | CS25060 | FT-7 | - |
| 55101076 | SVVBN-2525M11 | VBMT1103 | 25 | 25 | 150 | 12.5 | - | - | CS25060 | FT-7 | - |
| 55101077 | SVVBN-2020K16 | VBMT1604 | 20 | 20 | 125 | 10 | SMV-321 | SN535 | CS35115 | FT-15 | LW035 |
| 55101078 | SVVBN-2525M16 | VBMT1604 | 25 | 25 | 150 | 12.5 | SMV-321 | SN535 | CS35115 | FT-15 | LW035 |
