EXTERNAL TURNING TOOL (STWC 60°)
55101059, 55101060, 55101061, 55101062, 55101063, 55101064, 55101065, 55101066
Description

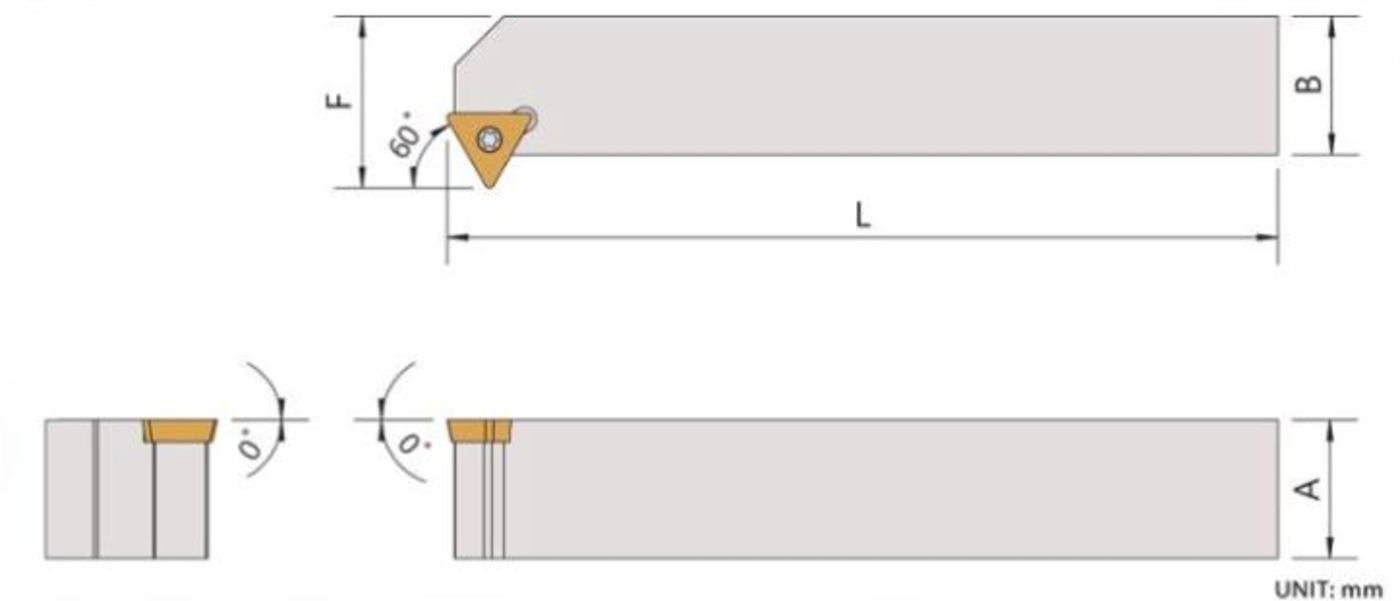

Specification
UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||
|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | F | ||||
| 55101059 R/L | STWCR/L-1212H11 | TCMT1102 | 12 | 12 | 100 | 15.3 | CS25060 | FT-7 |
| 55101060 R/L | STWCR/L-1616H11 | TCMT1102 | 16 | 16 | 100 | 19.3 | CS25060 | FT-7 |
| 55101061 R/L | STWCR/L-2020K11 | TCMT1102 | 20 | 20 | 125 | 23.3 | CS25060 | FT-7 |
| 55101062 R/L | STWCR/L-2525M11 | TCMT1102 | 25 | 25 | 150 | 28.3 | CS25060 | FT-7 |
| 55101063 R/L | STWCR/L-1616H16 | TCMT16T3 | 16 | 16 | 100 | 21 | CS40090 | FT-15 |
| 55101064 R/L | STWCR/L-2020K16 | TCMT16T3 | 20 | 20 | 125 | 26 | CS40090 | FT-15 |
| 55101065 R/L | STWCR/L-2525M16 | TCMT16T3 | 25 | 25 | 150 | 31 | CS40090 | FT-15 |
| 55101066 R/L | STWCR/L-3232P16 | TCMT16T3 | 32 | 32 | 170 | 38 | CS40090 | FT-15 |
