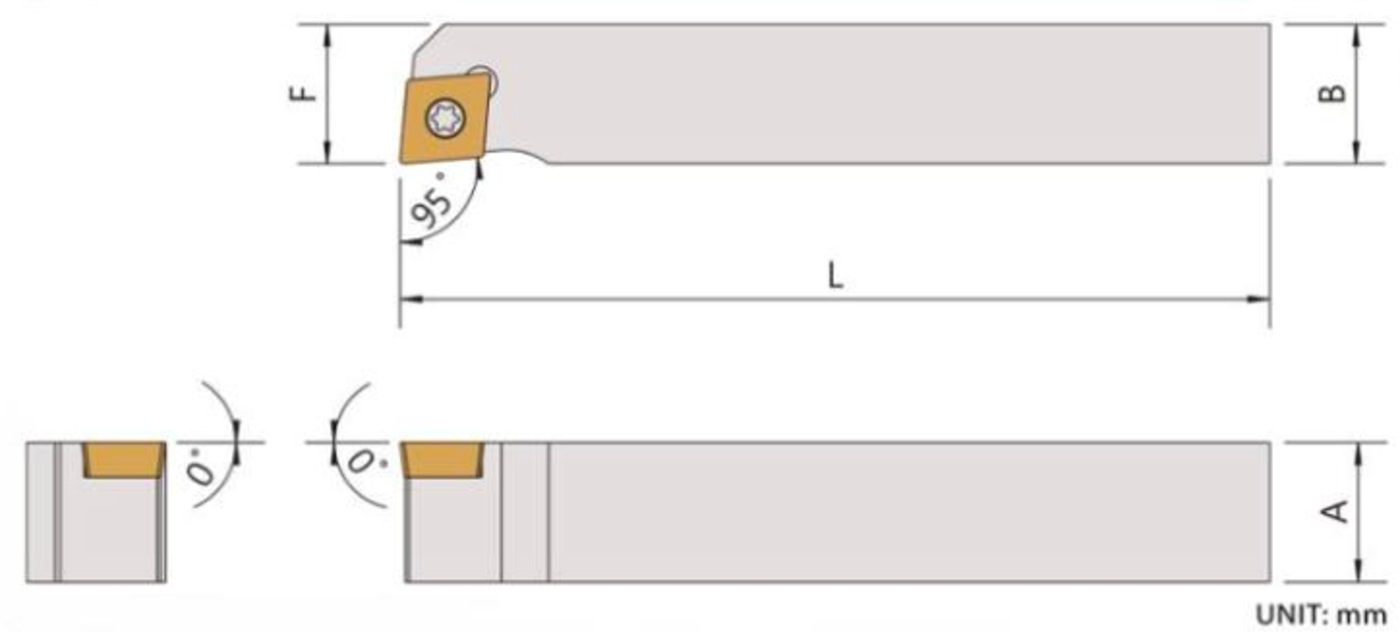

EXTERNAL TURNING TOOL (SCLC-N 95°)
55100992, 55100993, 55100994, 55100995, 55100996, 55100997, 55100998, 55100999
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||
|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | F | ||||
| 55100992 R/L | SCLCR/L-0808H06N | CCMT0602 | 8 | 8 | 100 | 8 | CS25060 | FT-7 |
| 55100993 R/L | SCLCR/L-1010H06N | CCMT0602 | 10 | 10 | 100 | 10 | CS25060 | FT-7 |
| 55100994 R/L | SCLCR/L-0808K06N | CCMT0602 | 8 | 8 | 125 | 8 | CS25060 | FT-7 |
| 55100995 R/L | SCLCR/L-1010K06N | CCMT0602 | 10 | 10 | 125 | 10 | CS25060 | FT-7 |
| 55100996 R/L | SCLCR/L-1212H09N | CCMT09T3 | 12 | 12 | 100 | 12 | CS35090 | FT-15 |
| 55100997 R/L | SCLCR/L-1616H09N | CCMT09T3 | 16 | 16 | 100 | 16 | CS35090 | FT-15 |
| 55100998 R/L | SCLCR/L-1212K09N | CCMT09T3 | 12 | 12 | 125 | 12 | CS35090 | FT-15 |
| 55100999 R/L | SCLCR/L-1616K09N | CCMT09T3 | 16 | 16 | 125 | 16 | CS35090 | FT-15 |
