EXTERNAL TURNING TOOL (SCLC-S 95°)
55100967, 55100968, 55100969, 55100970
Description
Specification
UNIT: mm

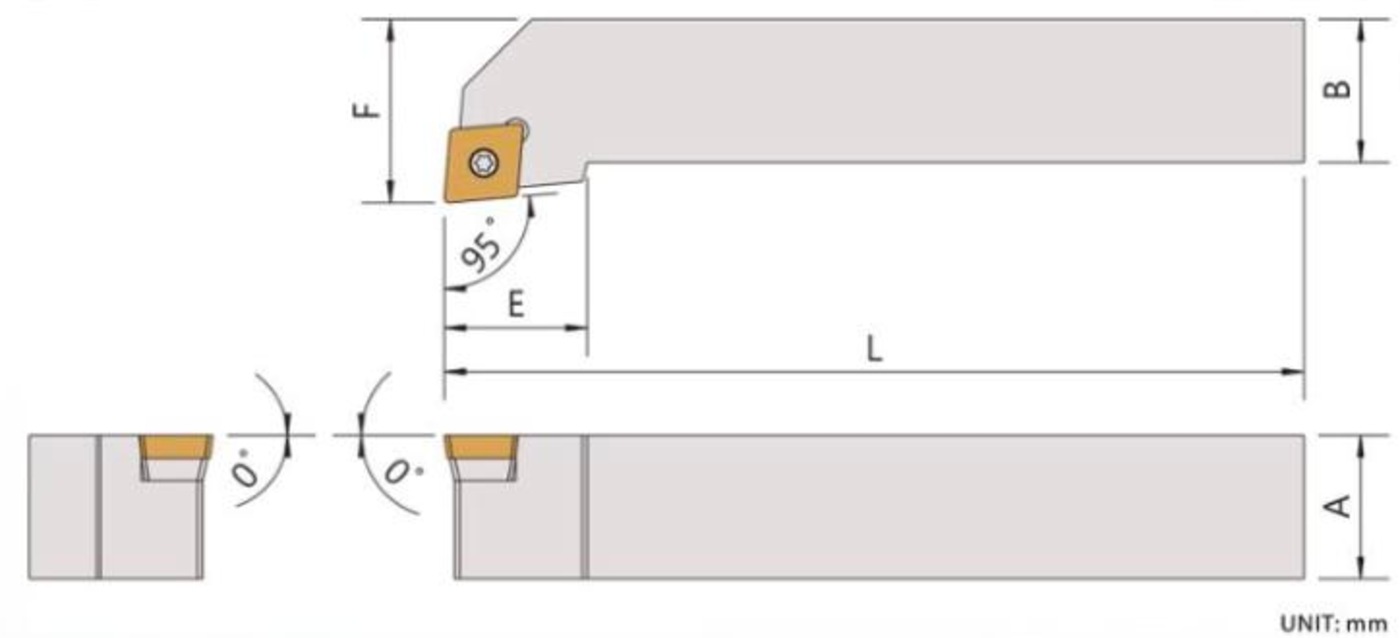

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | |||||||
| 55100967 R/L | SCLCR/L-2020K09S | CCMT09T3 | 20 | 20 | 125 | 22 | 25 | SMC-343 | SN535 | CS35115 | FT-15 | LW035 |
| 55100968 R/L | SCLCR/L-2525M09S | 25 | 25 | 150 | 25 | 32 | ||||||
| 55100969 R/L | SCLCR/L-2020K12S | CCMT1204 | 20 | 20 | 125 | 22 | 25 | SMC-453 | SN630 | CS40145 | FT-15 | LW040 |
| 55100970 R/L | SCLCR/L-2525M12S | 25 | 25 | 150 | 25 | 32 | ||||||
