EXTERNAL TURNING TOOL (MDJN 93°)

EXTERNAL TURNING TOOL (MDJN 93°)

EXTERNAL TURNING TOOL (MDJN 93°)

55100783, 55100784, 55100785, 55100786, 55100787, 55100788, 55100789, 55100790

Description

Specification

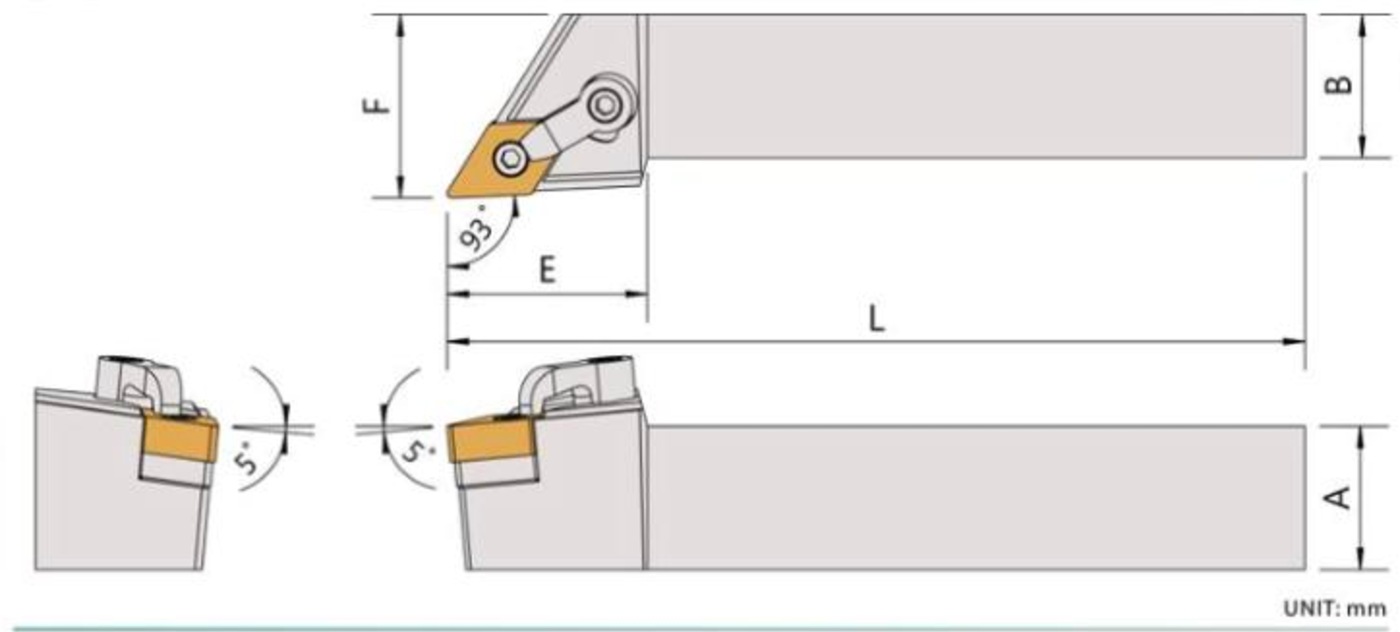

UNIT: mm

ITEM NO. MODEL INSERT DIMENSIONS PARTS WRENCH
Right / Left   A B L E F
55100783 R/L MDJNR/L-2020K1504 DNMG1504 20 20 125 37 25 SMD-463 LCS-619 CP50-24 CS7-6030 LW030
55100784 R/L MDJNR/L-2525M1504 DNMG1504 25 25 150 37 32 SMD-463 LCS-619 CP50-24 CS7-6030 LW030
55100785 R/L MDJNR/L-3225P1504 DNMG1504 32 25 170 42 32 SMD-463 LCS-619 CP50-24 CS7-6030 LW030
55100786 R/L MDJNR/L-3232P1504 DNMG1504 32 32 170 42 40 SMD-463 LCS-619 CP50-24 CS7-6030 LW030
55100787 R/L MDJNR/L-2020K1506 DNMG1506 20 20 125 37 25 SMD-443 LCS-619 CP50-24 CS7-6030 LW030
55100788 R/L MDJNR/L-2525M1506 DNMG1506 25 25 150 37 32 SMD-443 LCS-619 CP50-24 CS7-6030 LW030
55100789 R/L MDJNR/L-3225P1506 DNMG1506 32 25 170 42 32 SMD-443 LCS-619 CP50-24 CS7-6030 LW030
55100790 R/L MDJNR/L-3232P1506 DNMG1506 32 32 170 42 40 SMD-443 LCS-619 CP50-24 CS7-6030 LW030
