EXTERNAL TURNING TOOL (CTGP 91°)
55100151, 55100152, 55100153, 55100154
Description
Specification
UNIT: mm

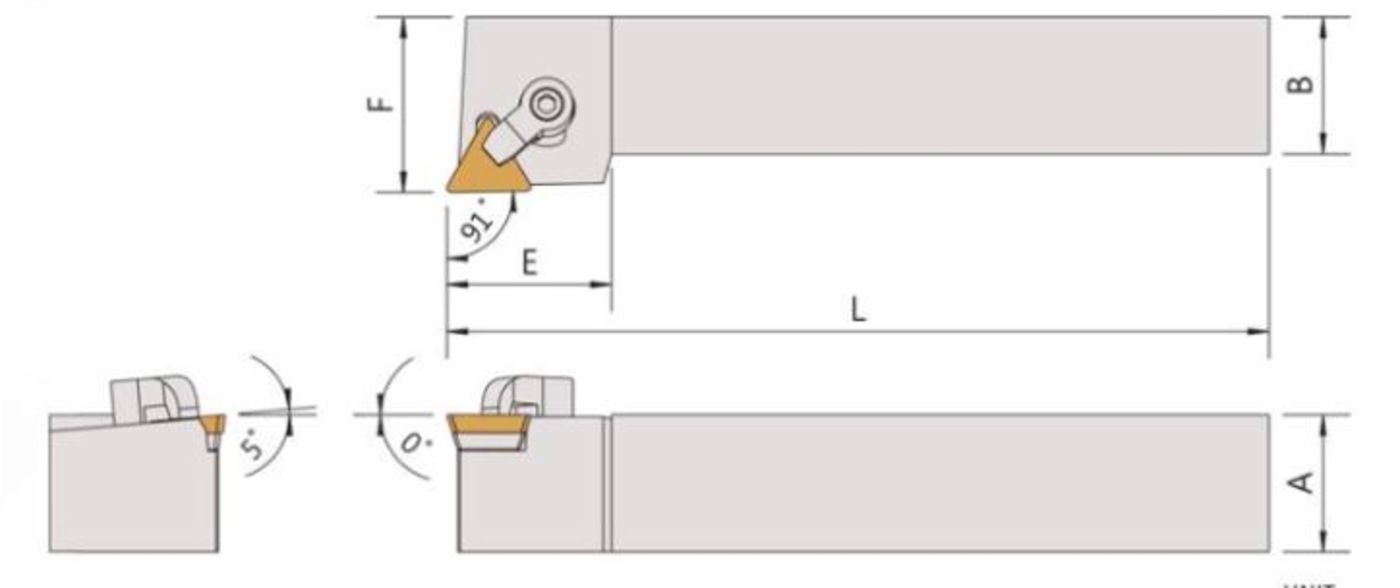

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | C | E | F | |||||||
| 55100151 R/L | CTGPR/L-1212F11 | TPMN1103 | 12 | 12 | 80 | 20 | 16 | - | - | CP50-21 | CS7-5015 | LW025 |
| 55100152 R/L | CTGPR/L-1616H11 | TPMN1103 | 16 | 16 | 100 | 20 | 20 | - | - | CP50-21 | CS7-5015 | LW025 |
| 55100153 R/L | CTGPR/L-2020K16 | TPMN1603 | 20 | 20 | 125 | 30 | 25 | SMT-321 | CS20045 | CP50-22 | CS7-6024 | LW030 |
| 55100154 R/L | CTGPR/L-2525M16 | TPMN1603 | 25 | 25 | 150 | 30 | 32 | SMT-321 | CS20045 | CP50-22 | CS7-6024 | LW030 |
