MULTIPLE SPINDLE BORING HEADS FOR WOOD
54101151, 54101152, 54101153, 54101154, 54101155, 54101156
Description
Specification

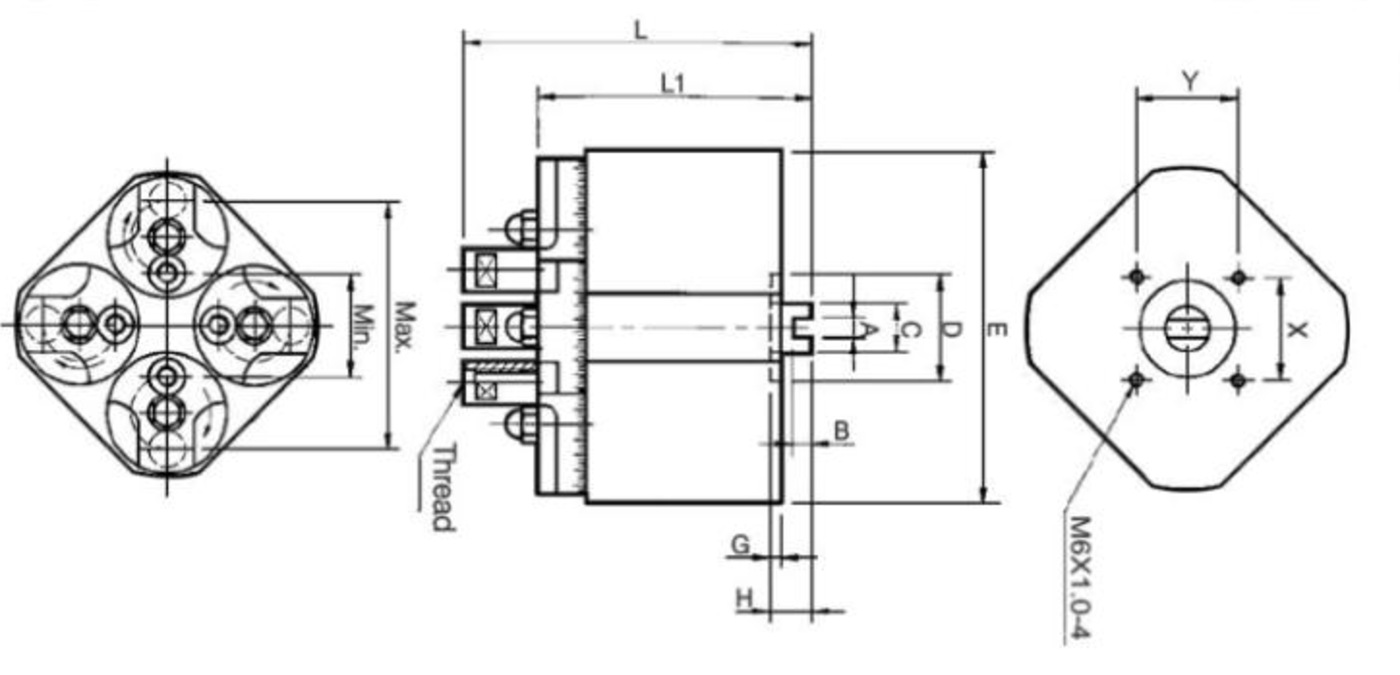

▼ 4-SPINDLE (CIRCULAR) BORING HEAD (FOR WOOD)
- Adjustable spacing between spindles: ø34-ø206 mm.
UNIT: mm
| ITEM NO. | MODEL | DIMENSIONS | SPACING | SPINDLE TYPE |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | G | H | L1 | L | X | Y | MIN | MAX | MAX CAPACITY | |||
| 54101151 | 4C-W34 | 10 | 10 | 28 | 55 | 121 | 3 | 15 | 115 | 140 | 70.7 | 70.7 | Ø34 | Ø94 | Ø10 | M8 × 1.25, M10 × 1.5 |
| 54101152 | 4C-W42 | 10 | 10 | 28 | 55 | 145 | 3 | 15 | 117 | 132 | 70.7 | 70.7 | Ø42 | Ø114 | Ø15 | M8 × 1.25, M10 × 1.5 |
| 54101153 | 4C-W48 | 10 | 10 | 28 | 55 | 170 | 3 | 15 | 109 | 134 | 70.7 | 70.7 | Ø48 | Ø132 | Ø20 | M8 × 1.25, M10 × 1.5 |
| 54101154 | 4C-W58 | 10 | 10 | 28 | 55 | 192 | 3 | 15 | 118.5 | 143.5 | 70.7 | 70.7 | Ø58 | Ø158 | Ø30 | M8 × 1.25, M10 × 1.5 |
| 54101155 | 4C-W78 | 10 | 10 | 28 | 80 | 260 | 3 | 15 | 145 | 170 | 70.7 | 70.7 | Ø78 | Ø206 | Ø50 | M8 × 1.25, M10 × 1.5 |
| 54101156 | 5C-W20 | 10 | 10 | 28 | 55 | 145 | 3 | 15 | 117 | 132 | 70.7 | 70.7 | Ø40 | Ø112 | Ø15 | M8 × 1.25, M10 × 1.5 |
