MULTIPLE SPINDLE BORING HEADS FOR METAL
54101128, 54101129, 54101130, 54101131, 54101132
Description
Specification

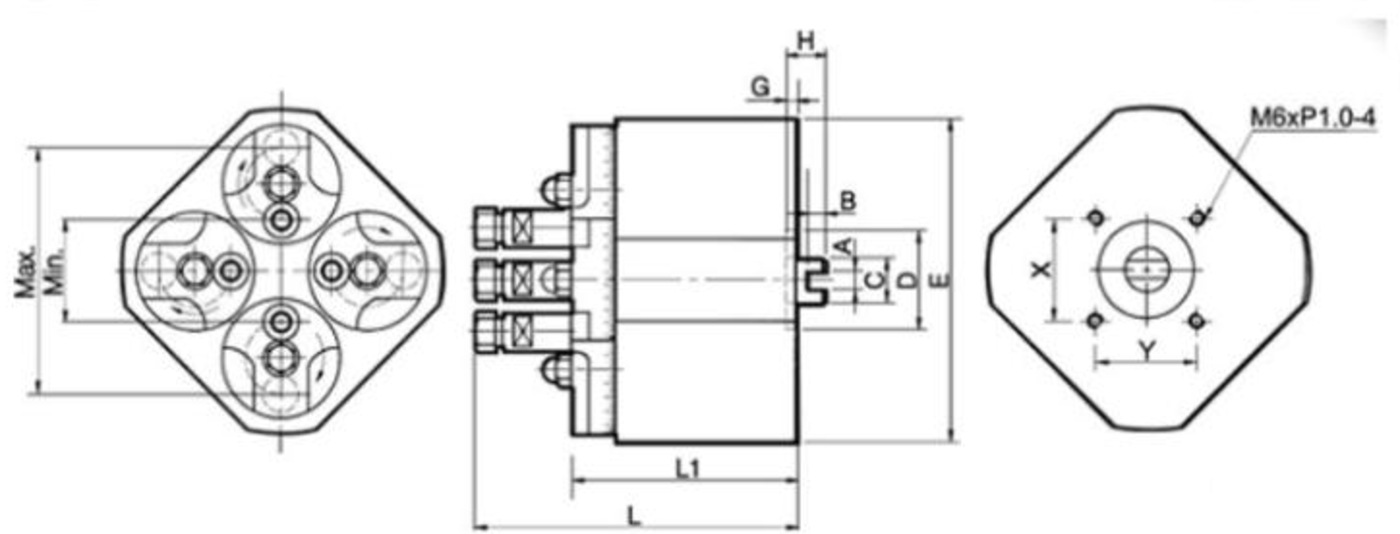

▼ 4-SPINDLE (CIRCULAR) BORING HEAD (FOR METAL)
- Adjustable spacing between spindles: ø34-ø206 mm.
- Drilling capacity for steel: ø5- ø14 mm
- Reversible spindle running for drilling and tapping operations.
UNIT: mm
| ITEM NO. | MODEL | DIMENSIONS | SPACING | WEIGHT (kgs) |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | G | H | L1 | L | X | Y | MIN | MAX | MAX CAPACITY | |||
| 54101128 | 4C-T5 | 10 | 10 | 28 | 55 | 121 | 3 | 15 | 115 | 140 | 70.7 | 70.7 | Ø34 | Ø94 | Ø5 | 5.8 |
| 54101129 | 4C-T7 | 10 | 10 | 28 | 55 | 145 | 3 | 15 | 117 | 132 | 70.7 | 70.7 | Ø42 | Ø114 | Ø7 | 7.3 |
| 54101130 | 4C-T10 | 10 | 10 | 28 | 55 | 170 | 3 | 15 | 109 | 134 | 70.7 | 70.7 | Ø48 | Ø132 | Ø10 | 9 |
| 54101131 | 4C-T12 | 10 | 10 | 28 | 55 | 192 | 3 | 15 | 118.5 | 143.5 | 70.7 | 70.7 | Ø58 | Ø158 | Ø12 | 13 |
| 54101132 | 4C-T16 | 10 | 10 | 28 | 80 | 260 | 3 | 15 | 145 | 170 | 70.7 | 70.7 | Ø78 | Ø206 | Ø14 | 21.7 |
▼ CORRESPONDING CHART FOR MULTIPLE SPINDLE BORING HEAD AND A WIDE VARIETY OF COLLETS.
HEX COLLET
UNIT: mm
| MODEL | A | L | MAX CAPACITY | APPLICABLE MODEL |
|---|---|---|---|---|
| C-5 | 8 | 31.5 | Ø5 | 2C-T5 3C-T5 |
| C-6 | 10 | 36 | Ø6 | 33C-T5 4C-T5 2C-T7 3C-T7 33C-T7 4C-T7 |
| C-9 | 14 | 46 | Ø9 | 2C-T8 2C-T10 3C-T10 33C-T10 4C-T10 |
| C-12 | 17 | 50 | Ø12 | 2C-T12 3C-T12 33C-T12 4C-T12 |
| C-14 | 21 | 54 | Ø14 | 2C-T16 3C-T16 33C-T16 4C-T16 |
ER COLLET
UNIT: mm
| MODEL | D | L | MAX CAPACITY | APPLICABLE MODEL |
|---|---|---|---|---|
| ER-8 | 8.5 | 13.5 | Ø5 | 2C-T5 3C-T5 |
| ER-11 | 11.5 | 18.0 | Ø7 | 33C-T5 4C-T5 2C-T7 3C-T7 33C-T7 4C-T7 |
| ER-16 | 17.0 | 27.5 | Ø10 | 2C-T8 2C-T10 3C-T10 33C-T10 4C-T10 |
| ER-20 | 21.0 | 31.5 | Ø13 | 2C-T12 3C-T12 33C-T12 4C-T12 |
| ER-25 | 26.0 | 34 | Ø16 | 2C-T16 3C-T16 33C-T16 4C-T16 |
