KEYLESS DRILL CHUCKS
54101639, 54101640, 54101641, 54101642, 54101643, 54101644, 54101645, 54101646, 54101647 ~ 54101652
Description
Specification
| ITEM NO. | TYPE | CLAMPING CAPACITY (mm / inch) |
HOLE TAPER DIN/JACOBS |
BODY DIA (mm) |
||
|---|---|---|---|---|---|---|
| 54101639 | 8L | 0-8 0-5/16" |
J1 | 34 | ||
| 54101640 | B10 | 34 | ||||
| 54101641 | 3/8"-24 | 34 | ||||
| 54101642 | 10L | 1-10 1/32"-3/8" |
J2 | 34 | ||
| 54101643 | 3/8"-24 | 34 | ||||
| 54101644 | B12 | 34 | ||||
| 54101645 | 1/2"-20 | 34 | ||||
| 54101646 | 13L | 1-13 1/32"-1/2" |
J2 | 42.5 | ||
| 54101647 | J6 | 42.5 | ||||
| 54101648 | J33 | 42.5 | ||||
| 54101649 | B16 | 42.5 | ||||
| 54101650 | 1/2"-20 | 42.5 | ||||
| 54101651 | 16L | 3-16 1/8"-5/8" |
B16 | 50.5 | ||
| 54101652 | B18 | 50.5 |

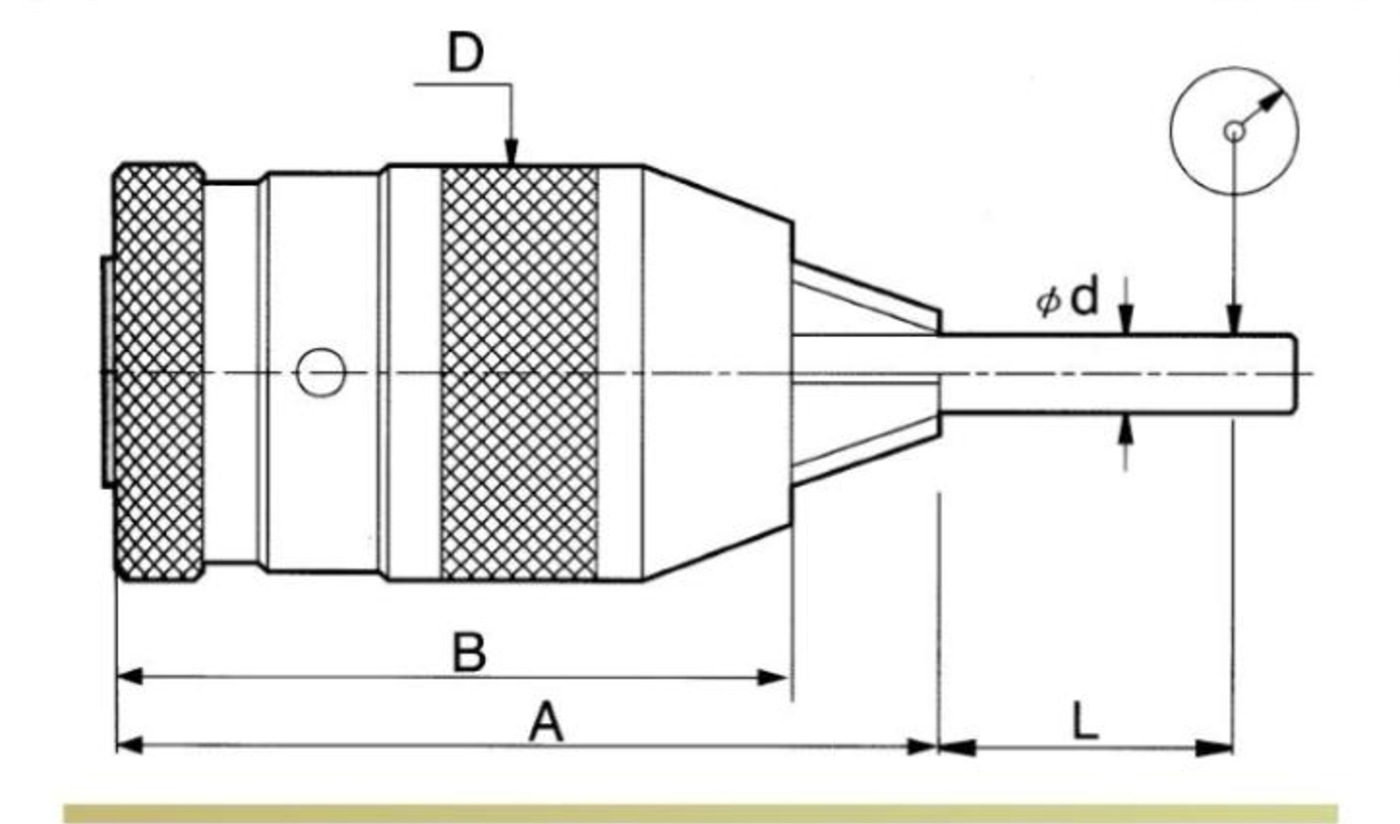

▼ RUNOUT & TORQUE
UNIT: mm
| TYPE | ød | L | MAX RUN OUT |
TORQUE (kg-cm) |
||||
|---|---|---|---|---|---|---|---|---|
| 8L | 3 | 35 | 0.20 | 60 | ||||
| 6 | ||||||||
| 8 | 50 | |||||||
| 10L | 3 | 35 | 0.20 | 90 | ||||
| 6 | ||||||||
| 10 | 58 | |||||||
| 13L | 5 | 55 | 0.20 | 125 | ||||
| 10 | ||||||||
| 13 | 75 | |||||||
| 16L | 5 | 55 | 0.20 | 180 | ||||
| 10 | ||||||||
| 16 | 80 |
