KEYLESS DRILL CHUCKS
54100625, 54100626, 54100627, 54100628, 54100629, 54100630, 54100631, 54100632, 54100633 ~ 54101636
Description
Specification
| ITEM NO. | TYPE | CLAMPING CAPACITY (mm/inch) |
HOLE TAPER DIN/JACOBS |
BODY DIA (mm) |
||
|---|---|---|---|---|---|---|
| 54101625 | 6H | 0.5-6.5 1/64"-1/4" |
J1 | 34 | ||
| 54101626 | B10 | 34 | ||||
| 54101627 | 8H | 0.5-8 1/64"-5/16" |
J1 | 34 | ||
| 54101628 | B10 | 34 | ||||
| 54101629 | 10H | 0.5-10 1/64"-3/8" |
J2 | 42.5 | ||
| 54101630 | J33 | 42.5 | ||||
| 54101631 | B12 | 42.5 | ||||
| 54101632 | B16 | 42.5 | ||||
| 54101633 | 13H | 0.5-13 1/64"-1/2" |
J6 | 50.5 | ||
| 54101634 | J33 | 50.5 | ||||
| 54101635 | B16 | 50.5 | ||||
| 54101636 | 16H | 3-16 1/64"-5/8" |
J6 | 50.5 |

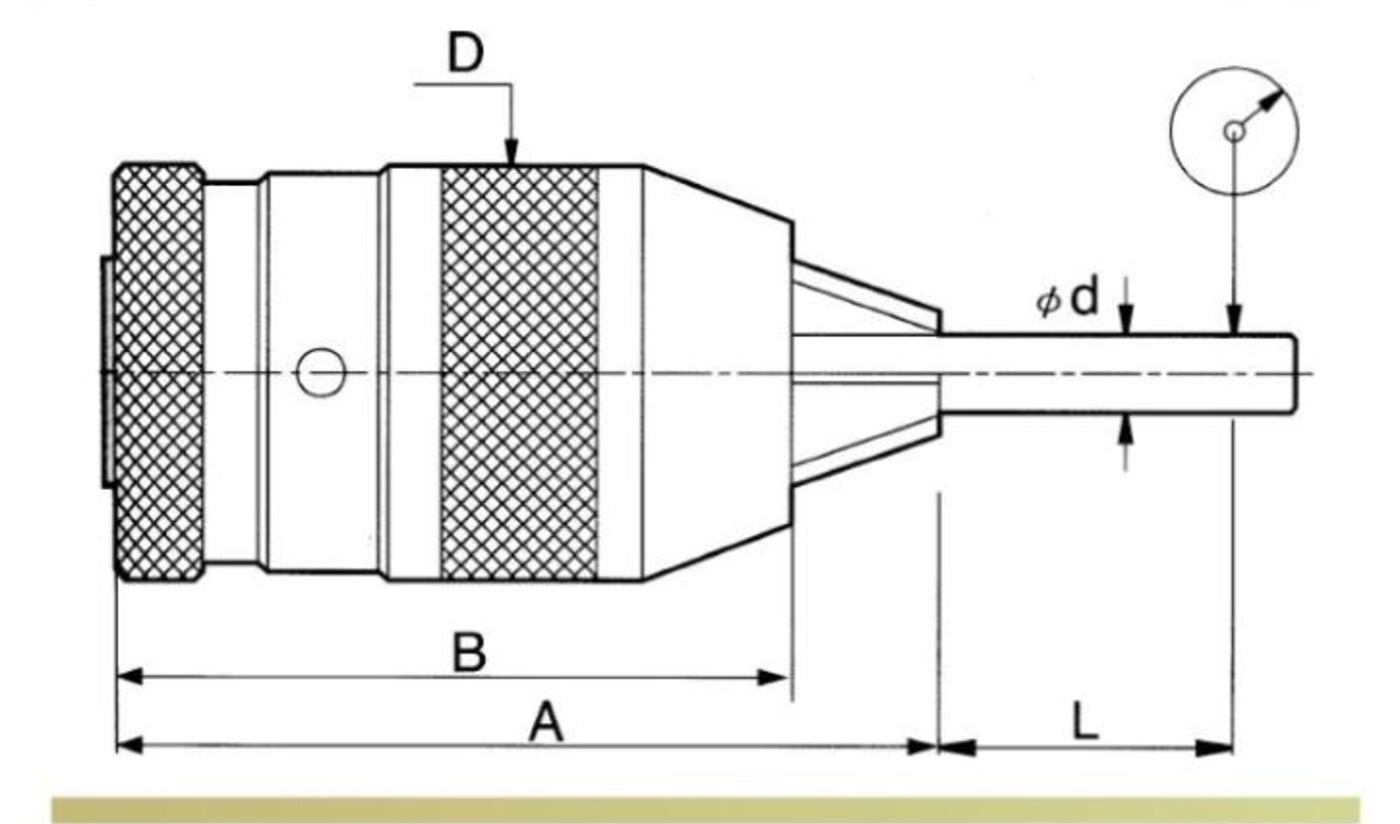

▼ RUNOUT & TORQUE
UNIT: mm
| TYPE | ød | L | MAX RUN OUT |
TORQUE (kg-cm) |
||||
|---|---|---|---|---|---|---|---|---|
| 6H | 3 | 35 | 0.08 | 75 | ||||
| 6 | ||||||||
| 8H | 8 | 50 | ||||||
| 10H | 3 | 35 | 0.08 | 115 | ||||
| 6 | ||||||||
| 10 | 58 | |||||||
| 13H | 5 | 55 | 0.08 | 175 | ||||
| 10 | ||||||||
| 13 | 75 | |||||||
| 16H | 5 | 55 | 0.08 | 300 | ||||
| 10 | ||||||||
| 16 | 80 |
