INCLINABLE PERMANENT MAGNETIC CHUCKS

INCLINABLE PERMANENT MAGNETIC CHUCKS

INCLINABLE PERMANENT MAGNETIC CHUCKS

53100520, 53100521, 53100522, 53100523, 53100524, 53100525, 53100526, 53100527, 53100528, 53100529

Description

Specification

◄ STANDARD POLE:

UNIT: mm

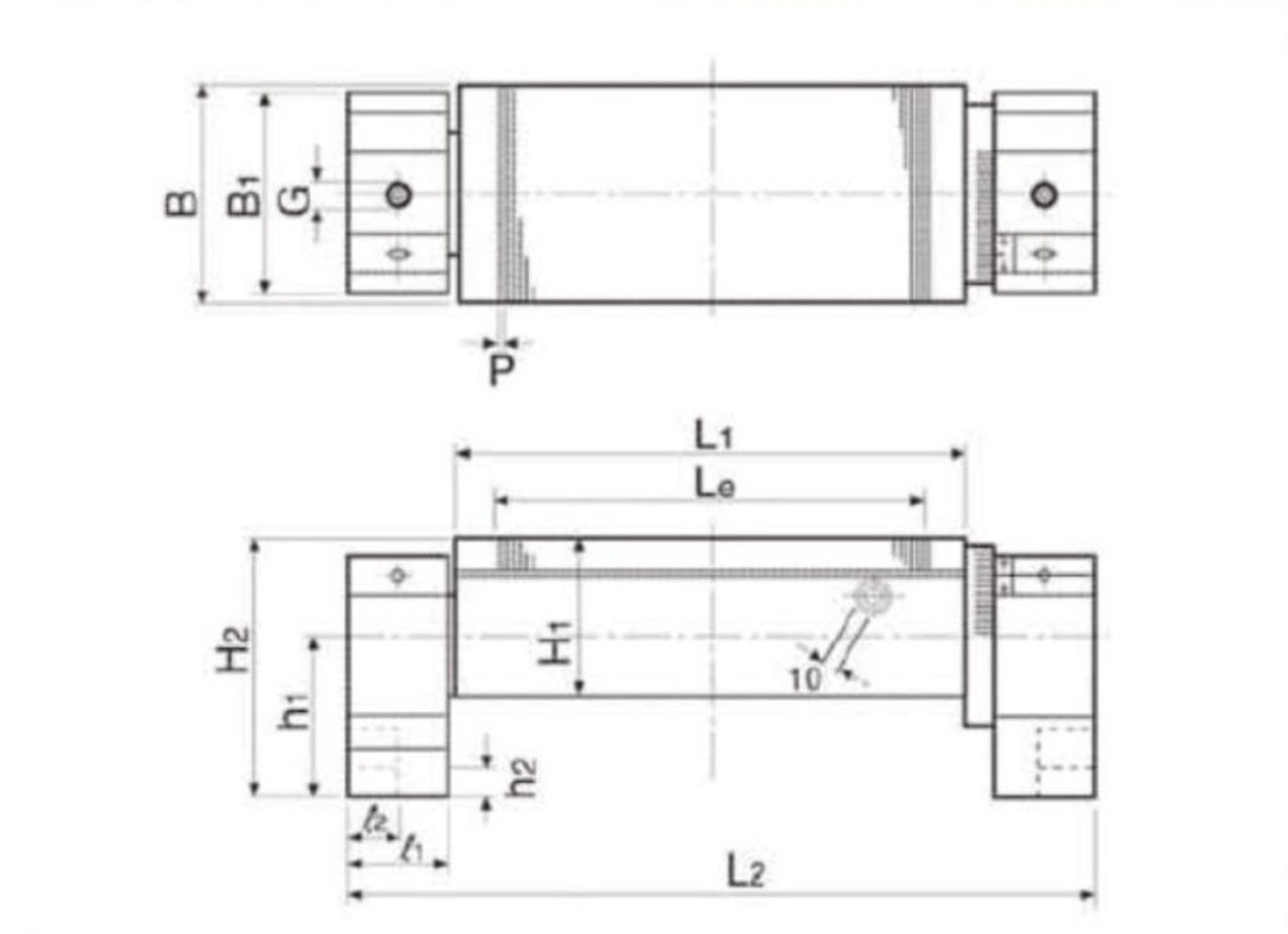

  ITEM NO. DIMENSION   FACE PLATE LENGTH POLE PITCH   BASE PLATE WEIGHT
W x L x H B L1 Le H1 Le P B1 ℓ1 ℓ2 G h1 h2 (kgs)
53100520 100 x 175 x 145 100 125 125 78 125   11.2
(1.6+2+1.6+6)		   100   50   25   14   103   50 17.5
53100521 125 x 250 x 145 250 250 200 78 200 24.5
53100522 150 x 300 x 145 150 300 246 78 246 27.2
53100523 150 x 350 x 145 150 350 296 78 296 30.4
53100524 150 x 450 x 145 150 450 396 78 396 35.4

◄ FINE POLE:

UNIT: mm

  ITEM NO. DIMENSION   FACE PLATE LENGTH POLE PITCH   BASE PLATE WEIGHT
W x L x H B L1 Le H1 Le P B1 ℓ1 ℓ2 G h1 h2 (kgs)
53100525 100 x 175 x 145 100 175 125 78 293   2
(1+1)		   100   50   25   14   103   50 17.5
53100526 125 x 250 x 145 125 250 200 78 368 24.5
53100527 150 x 300 x 145 150 300 246 78 418 27.2
53100528 150 x 350 x 145 150 350 246 78 468 30.4
53100529 150 x 450 x 145 150 450 396 78 568 35.4
