OPTIONAL TAILSTOCK FOR TILTING ROTARY TABLE 52172051~52172053
11002261, 52170112
Description
Specification
UNIT: mm

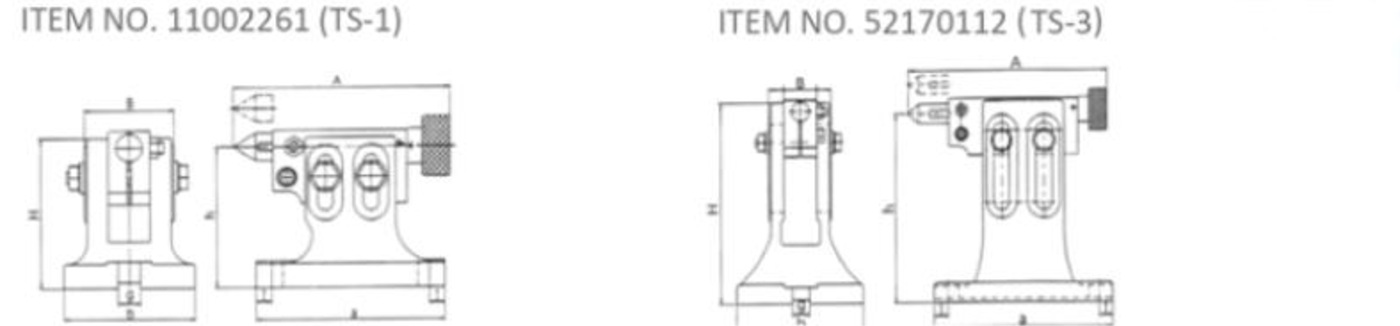

| ITEM NO. | MODEL | HIGHEST | LOWEST | A | B | H | l | a | b | g | FOR ROTARY TABLE |
G.W. (kgs) |
MEAS. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11002261 | TS-1 | 108 | 80 | 155-180 | 64 | 107 | 11 | 134 | 94 | 16 | VUT-6 | 3.9 | 0.4 |
| 52170112 | TS-3 | 205 | 130 | 210-235 | 64 | 205 | 13 | 185 | 138 | 16 | VUT-10 VUT-12 |
8.1 | 0.4 |
