OPTIONAL FLANGE FOR HORIZONTAL / VERTICAL ROTARY TABLE 52172049~52170119
11002268, 11002269, 11002270, 11002271, 11002272, 11002273
Description
Specification

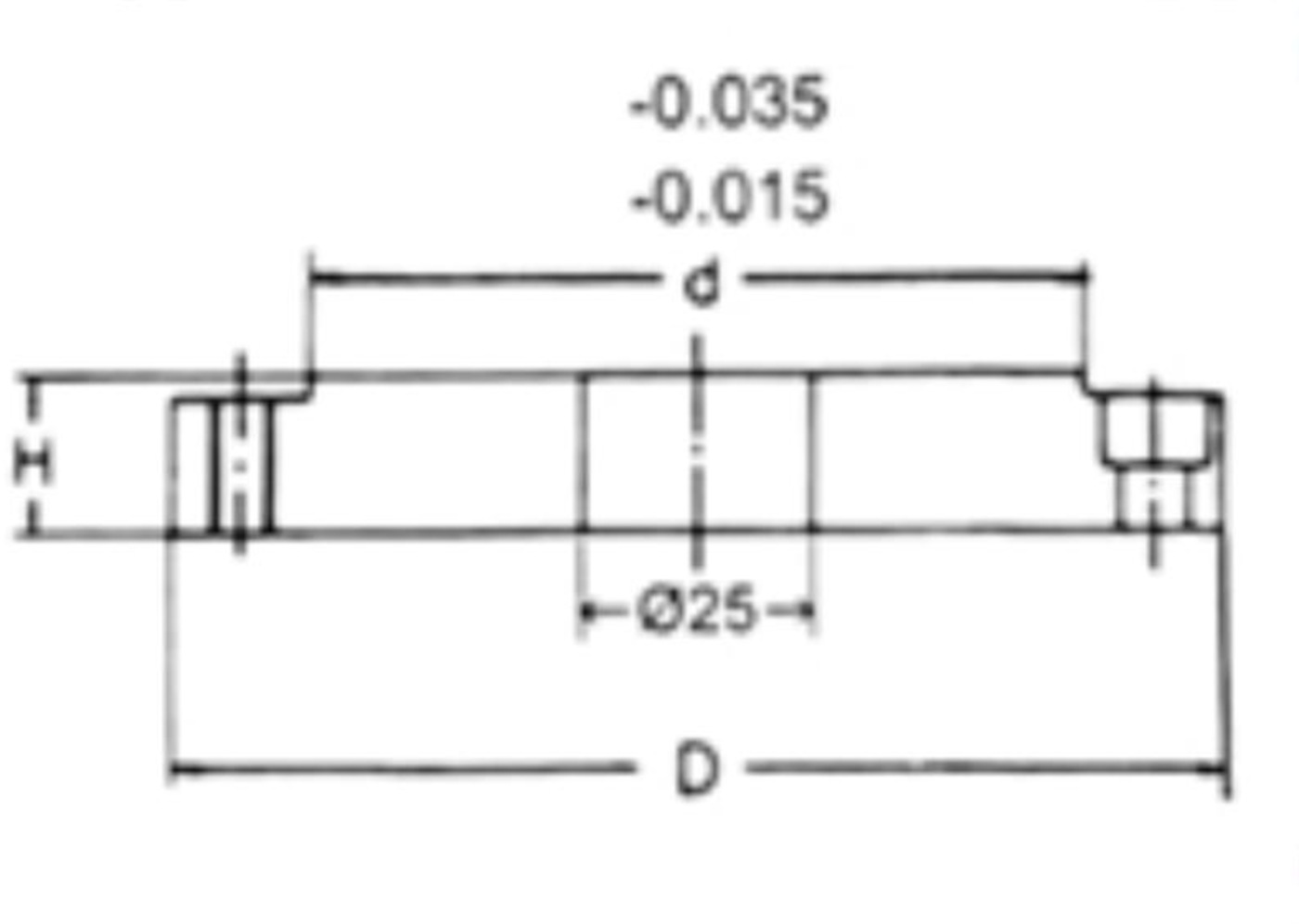

UNIT: mm
| ITEM NO. | MODEL | D | d | H | FOR ROTARY TABLE |
WEIGHT (kgs) |
|---|---|---|---|---|---|---|
| 11002268 | FLT-103 | 90 | 60 | 20 | HV-4 | 0.71 |
| 11002269 | FLT-104 | 113 | 80 | 20 | HV-6 | 1 |
| 11002270 | FLT-0 | 138 | 100 | 20 | HV-6, HV-8 | 1.9 |
| 11002271 | FLT-1 | 170 | 130 | 21 | HV-8, HV-10 | 3.3 |
| 11002272 | FLT-2 | 195 | 155 | 24 | HV-10, HV-12, HV-14 | 5.2 |
| 11002273 | FLT-3 | 210 | 160 | 24 | HV-10, HV-12, HV-14, HV-16 |
4.9 |
