PLAIN CLAMP
52172918~52172932
Description
Specification

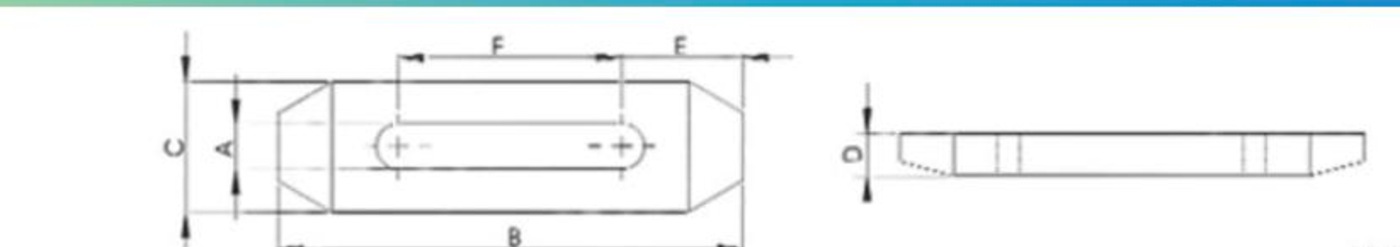

UNIT: mm
| ITEM NO. | INCH | METRIC | A | B LENGTH |
C WIDTH |
D THICKNESS |
E | F |
|---|---|---|---|---|---|---|---|---|
| 52172918 | 3/8" | M10 | 11 | 65 | 25.4 | 12.7 | 23 | 19 |
| 52172919 | 11 | 100 | 26 | 15 | 35 | 30 | ||
| 52172920 | 11 | 150 | 28.5 | 19 | 48 | 54 | ||
| 52172921 | 1/2" | M12-M14 | 15 | 65 | 30 | 13 | 25.5 | 16 |
| 52172922 | 15 | 100 | 32 | 19 | 34.5 | 31 | ||
| 52172923 | 15 | 150 | 32 | 22 | 47.5 | 55 | ||
| 52172924 | 5/8" | M16 | 18 | 65 | 32 | 16 | 25.5 | 14 |
| 52172925 | 18 | 100 | 38 | 19 | 35 | 30 | ||
| 52172926 | 18 | 150 | 38 | 22 | 46.5 | 57 | ||
| 52172927 | 3/4" | M18-M20 | 21 | 100 | 38 | 19 | 35 | 30 |
| 52172928 | 21 | 150 | 38 | 25 | 50 | 50 | ||
| 52172929 | 21 | 200 | 44.5 | 28.5 | 65 | 70 | ||
| 52172930 | 7/8", 1" | M22, M24 | 26 | 150 | 50 | 32 | 55.5 | 39 |
| 52172931 | 26 | 200 | 50 | 38 | 65.5 | 69 | ||
| 52172932 | 26 | 250 | 50 | 38 | 88 | 74 |
