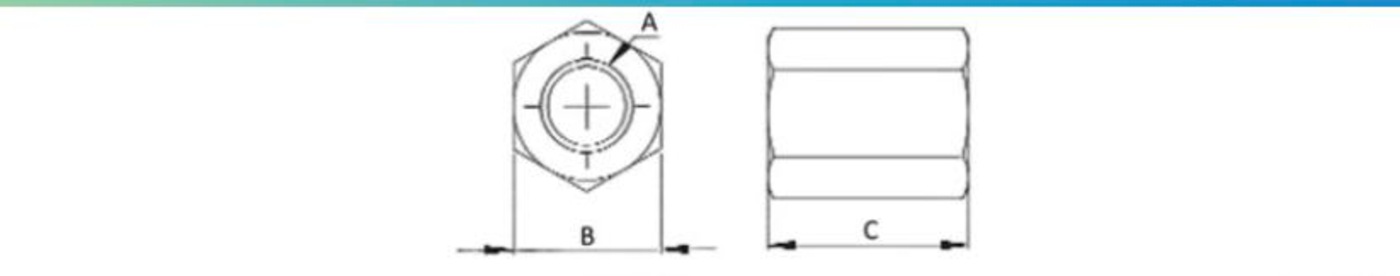

COUPLING NUTS
52140169~52140174, 52172907~52172915
Description
Specification
INCH SIZE
| ITEM NO. | A | B (mm) | C (mm) |
|---|---|---|---|
| 52140169 | 3/8"-16 | 17 | 25 |
| 52140170 | 1/2"-13UNC | 21 | 32 |
| 52172907 | 1/2"-12 | 21 | 32 |
| 52140171 | 5/8"-11 | 26 | 40 |
| 52140172 | 3/4"-10 | 32 | 48 |
| 52140173 | 7/8"-9 | 36 | 48 |
| 52140174 | 1"-8 | 41 | 63 |
METRIC SIZE
| ITEM NO. | A | B (mm) | C (mm) |
|---|---|---|---|
| 52172908 | M8x1.25 | 13 | 22 |
| 52172909 | M10x1.5 | 17 | 25 |
| 52172910 | M12x1.75 | 21 | 32 |
| 52172911 | M14x2.0 | 21 | 32 |
| 52172912 | M16x2.0 | 26 | 40 |
| 52172913 | M18x2.5 | 32 | 48 |
| 52172914 | M20x2.5 | 32 | 48 |
| 52172915 | M24x3.0 | 41 | 63 |
